PSFTXFN

Fiyat : $192.89

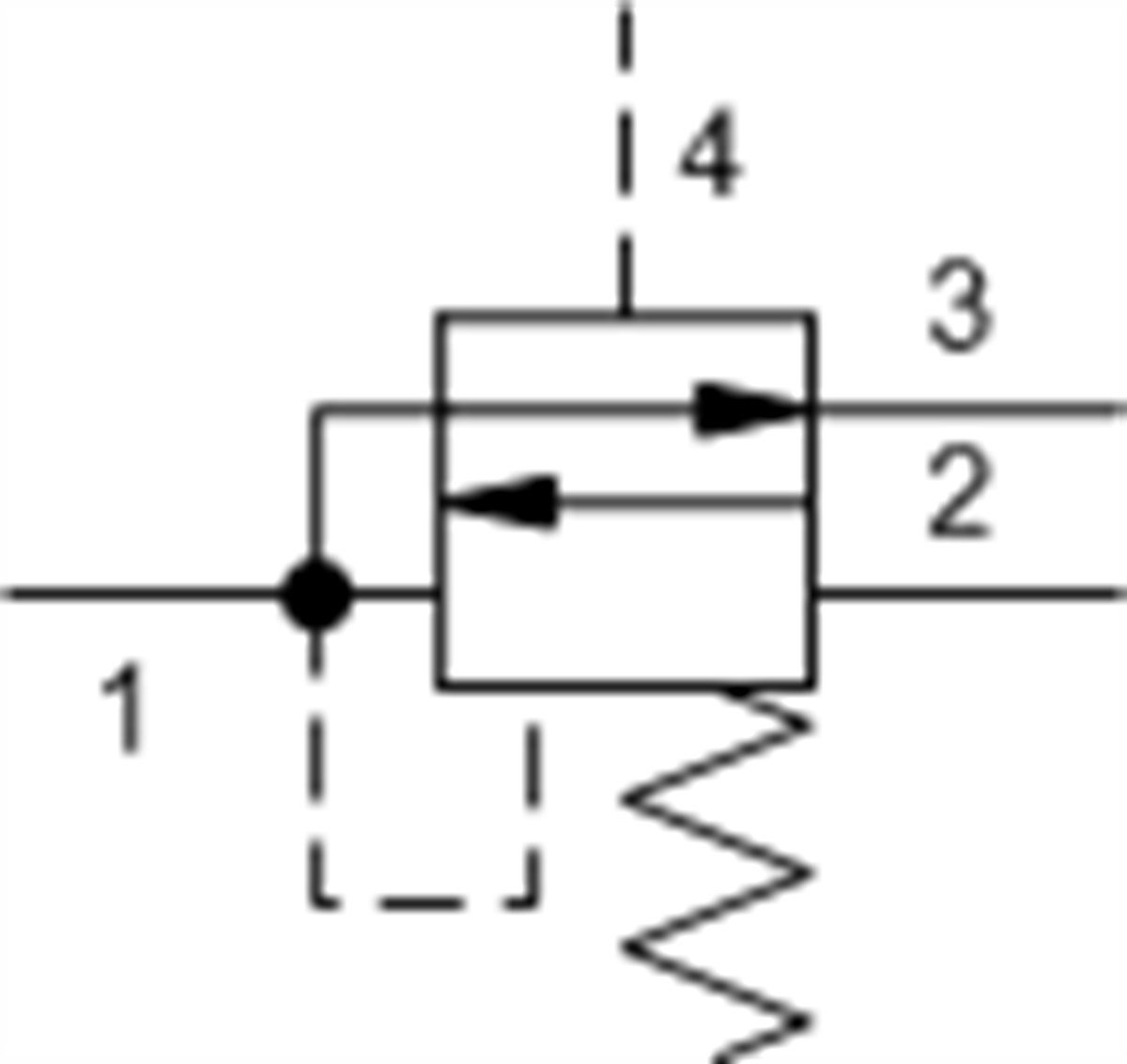

Direct-acting, pressure reducing/relieving main stage piloted from port 4

:
PSFT

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-22A
Series 2
Capacity 20 gpm80 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at blocked control port (dead headed)blocked control port (dead headed)
Maximum Valve Leakage at 110 SUS (24 cSt) 3 in³/min.@1000 psi50 cc/min.@70 bar
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990022007
Seal kit - Cartridge EPDM: 990022014
Seal kit - Cartridge Polyurethane: 990022002
Seal kit - Cartridge Viton: 990022006


PSFT
Düşük Geçirgenlik
0-150 lpm
