PRDMXDN

Fiyat : $240.73

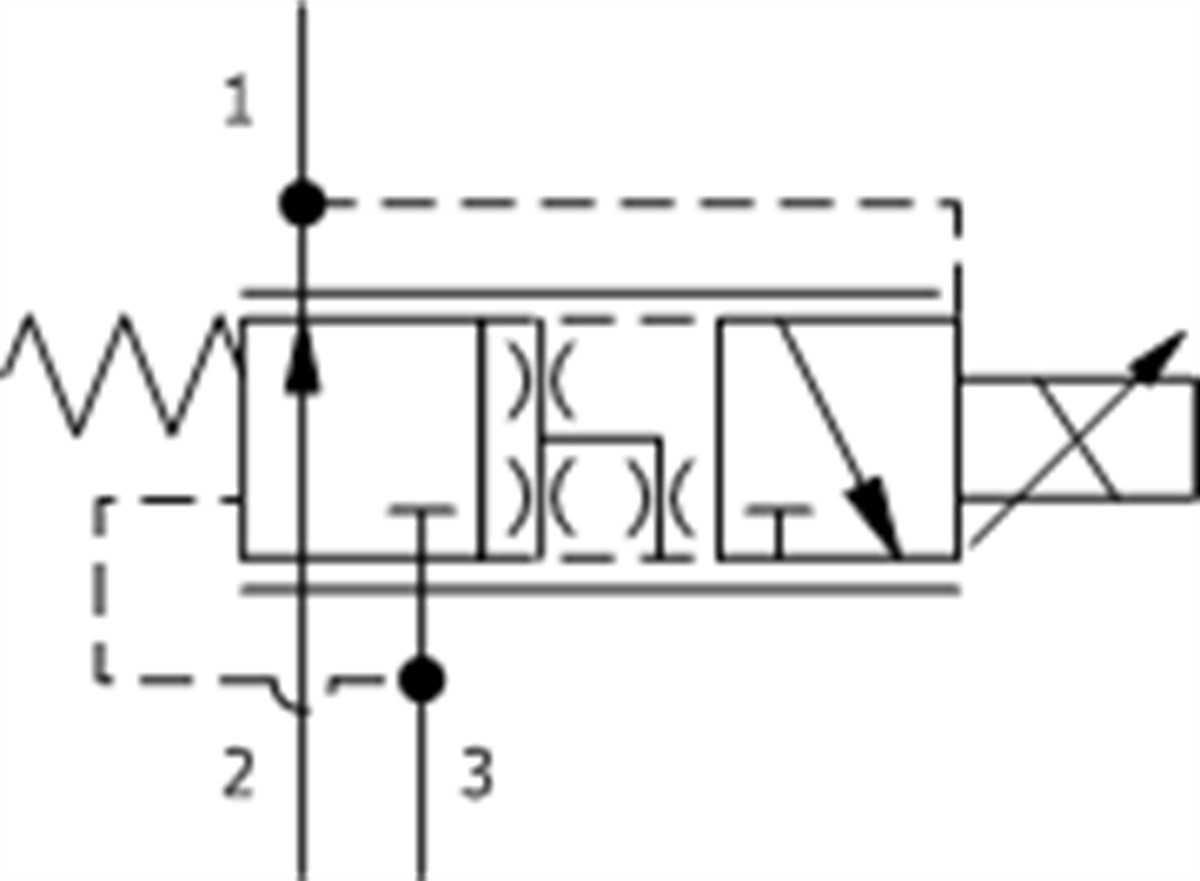

Electro-proportional, direct-acting, pressure reducing/relieving valve with open transition - high pressure setting with no command

:
PRDM

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-11A
Series 1
Capacity 5 gpm20 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 20 in³/min.330 cc/min.
Solenoid Tube Diameter .75 in.19 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight (with coil) 1.20 lb0,55 kg
Seal kit - Cartridge Buna: 990511007
Seal kit - Cartridge Viton: 990511006
Seal and nut kit - Coil Viton: 990770006
