PBHCBBN

Fiyat : $348.31

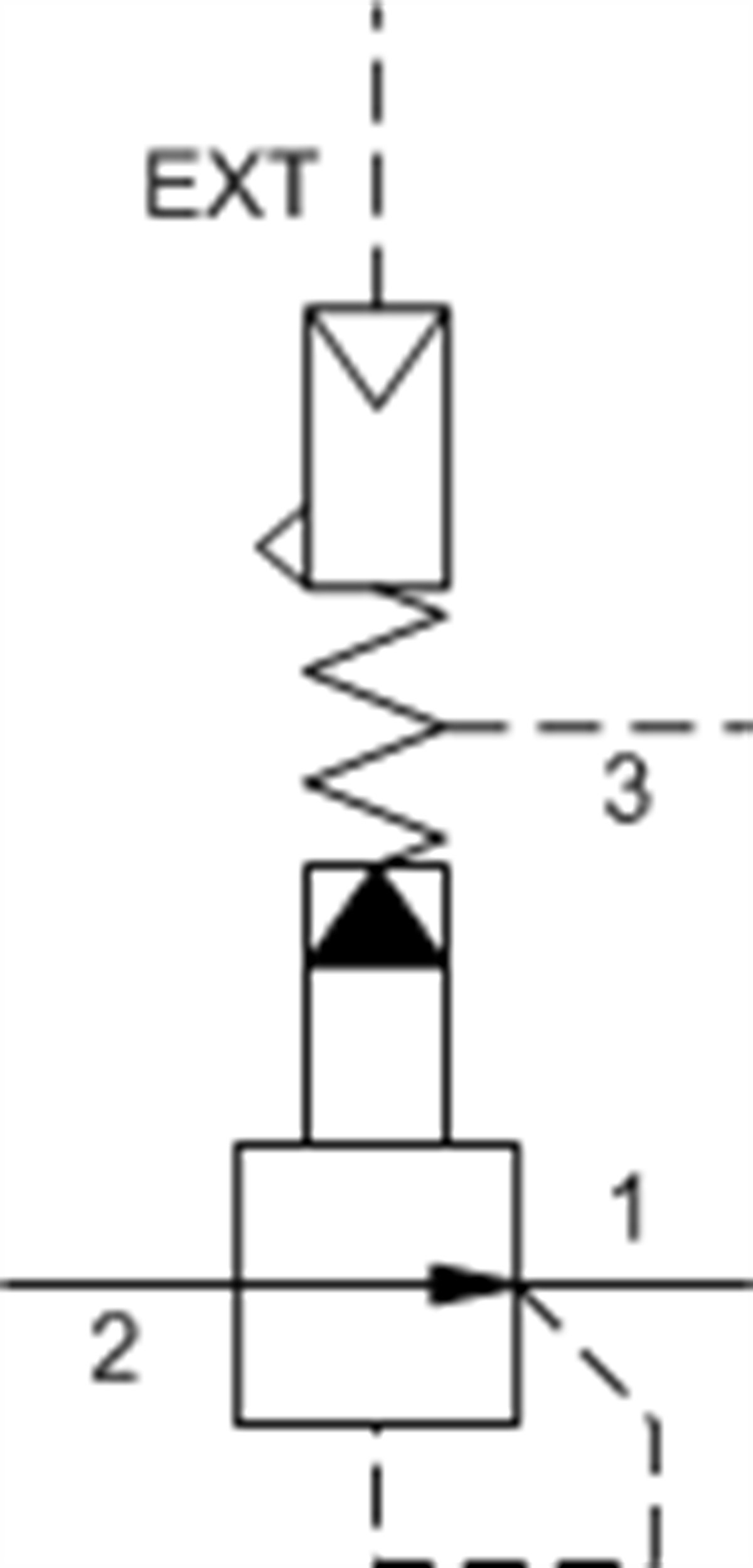

Air-controlled, pilot-operated, pressure reducing valve

:
PBHC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-17A
Series 3
Capacity 40 gpm160 L/min.
Maximum Operating Pressure 2000 psi140 bar
Pilot Ratio 20:120:1
Control Pilot Flow 15 - 20 in³/min.0,25 - 0,33 L/min.
Maximum Air Pressure 150 psi10,5 bar
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 1.30 lb0,60 kg
Seal kit - Cartridge Buna: 990017007
Seal kit - Cartridge Polyurethane: 990017002
Seal kit - Cartridge Viton: 990017006


PBHC
Orta Geçirgenlik
150-300 lpm
