NFFCLGN

Fiyat : $184.65

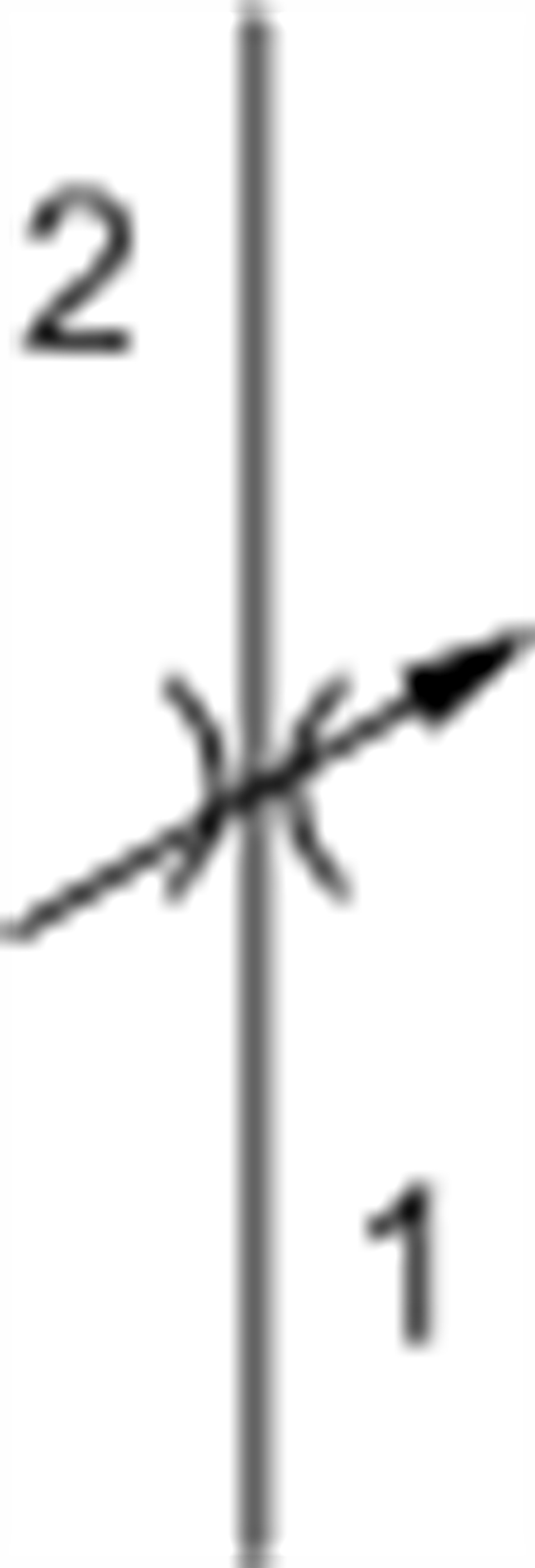

Fully adjustable needle valve

:
NFFC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-18A
Series 4
Capacity 60 gpm (.56 inch)240 L/min. (14,2 mm)
Maximum Operating Pressure 5000 psi350 bar
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 55
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 3.00 lb1,35 kg
Seal kit - Cartridge Buna: 990018007
Seal kit - Cartridge EPDM: 990018014
Seal kit - Cartridge Polyurethane: 990018002
Seal kit - Cartridge Viton: 990018006


NFFC
Orta Geçirgenlik
150-300 lpm
