NFCDLFN

Fiyat : $37.04

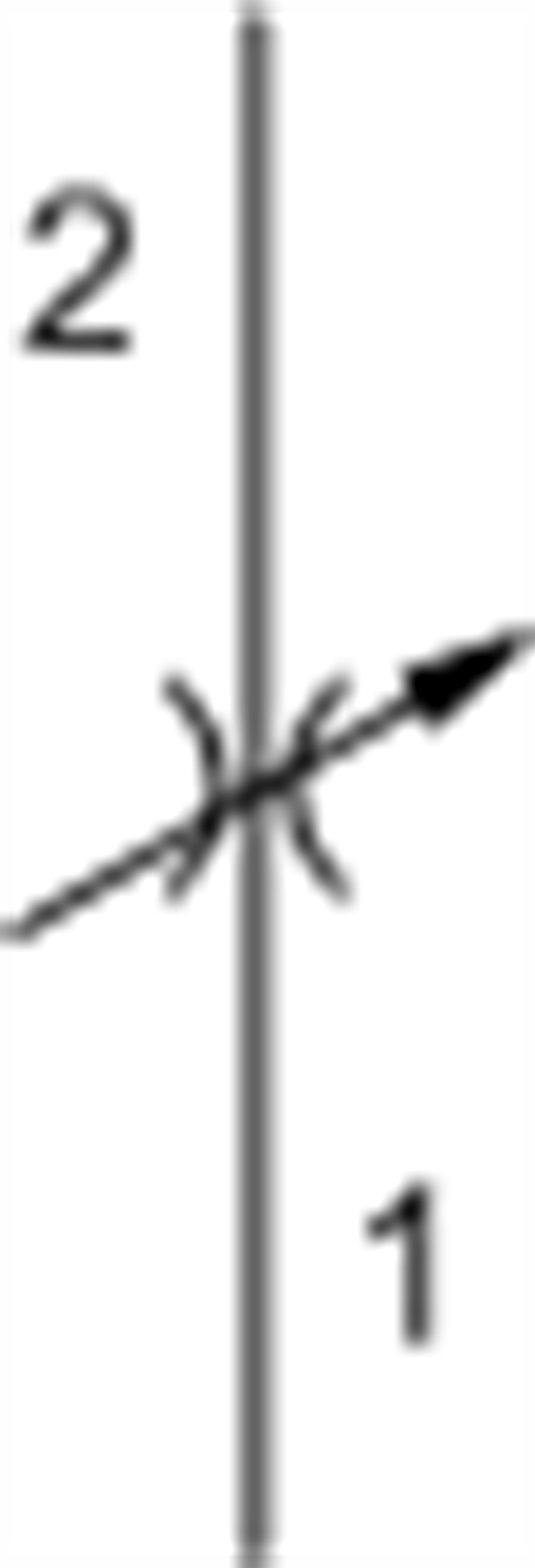

Fully adjustable needle valve

:
NFCD

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-13A
Series 1
Capacity 20 gpm (.33 inch)80 L/min. (8,4 mm)
Maximum Operating Pressure 5000 psi350 bar
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 55
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990010007
Seal kit - Cartridge EPDM: 990010014
Seal kit - Cartridge Polyurethane: 990010002
Seal kit - Cartridge Viton: 990010006


NFCD
Düşük Geçirgenlik
0-150 lpm
