FTEAZCN

Fiyat : $875.59

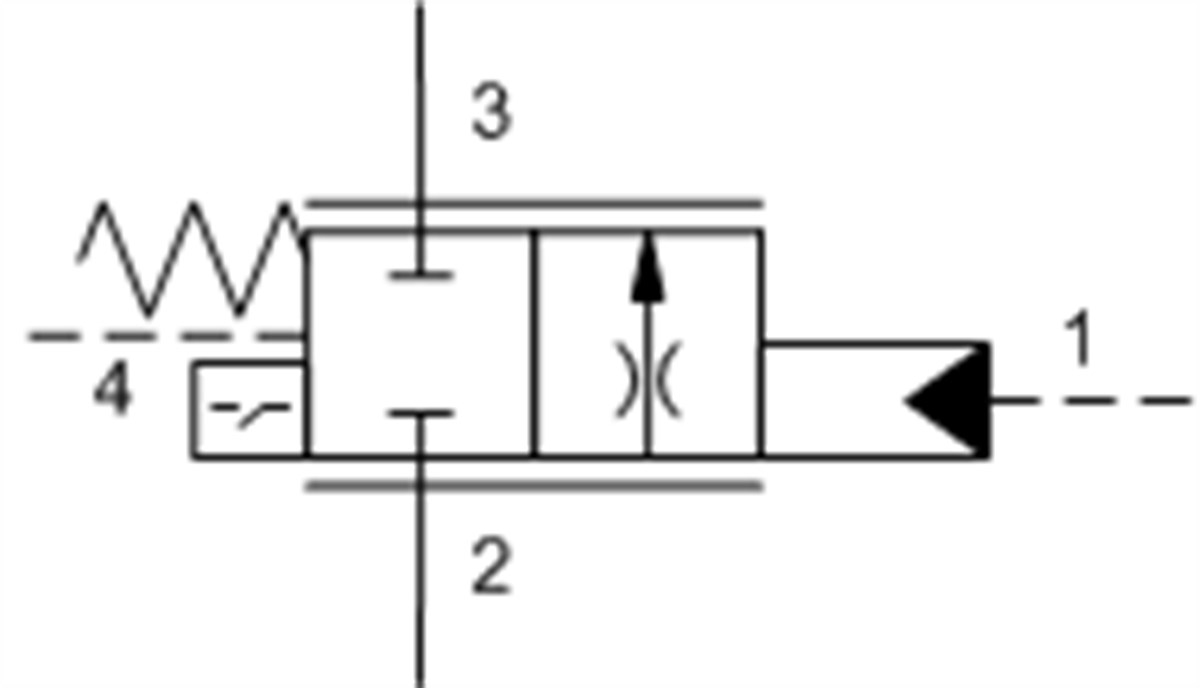

2-way, pilot-shifted, dual path, proportional throttle with position switch

:
FTEAZ

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-53AD
Series 3
Capacity 25 gpm95 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Pressure Required to Shift Valve 50 - 120 psi3,5 - 8 bar
Pilot Pressure Required for Full Shift at Rated Flow 290 - 340 psi20 - 23 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 in³/min.@1000 psi160 cc/min.@70 bar
Pilot Volume Displacement .10 in³1,6 cc
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Model Weight 4.40 lb2,00 kg
Seal kit - Cartridge Buna: 990053007
Seal kit - Cartridge Viton: 990053006


FTEAZ
Düşük Geçirgenlik
0-150 lpm
