Fiyat : $284.30

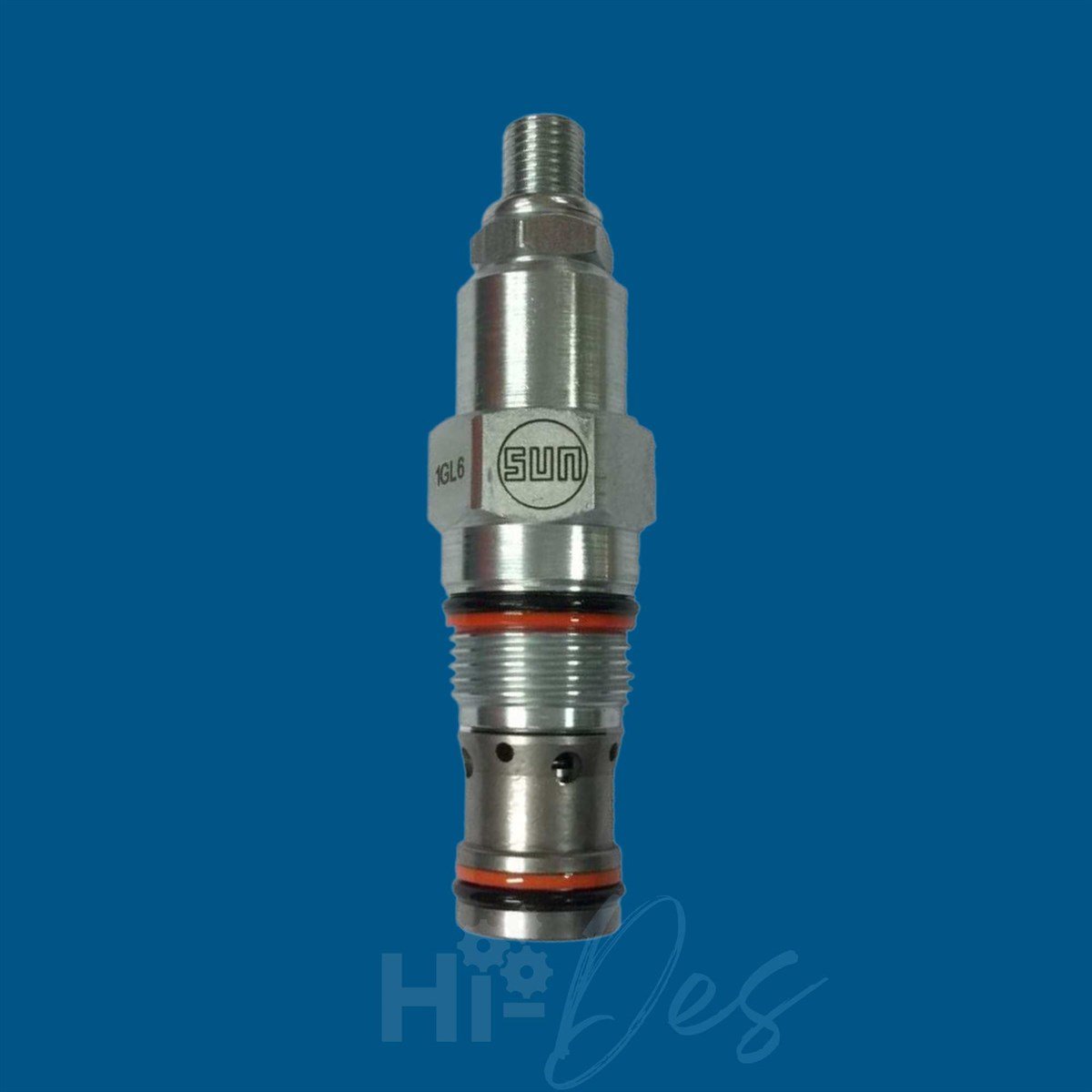

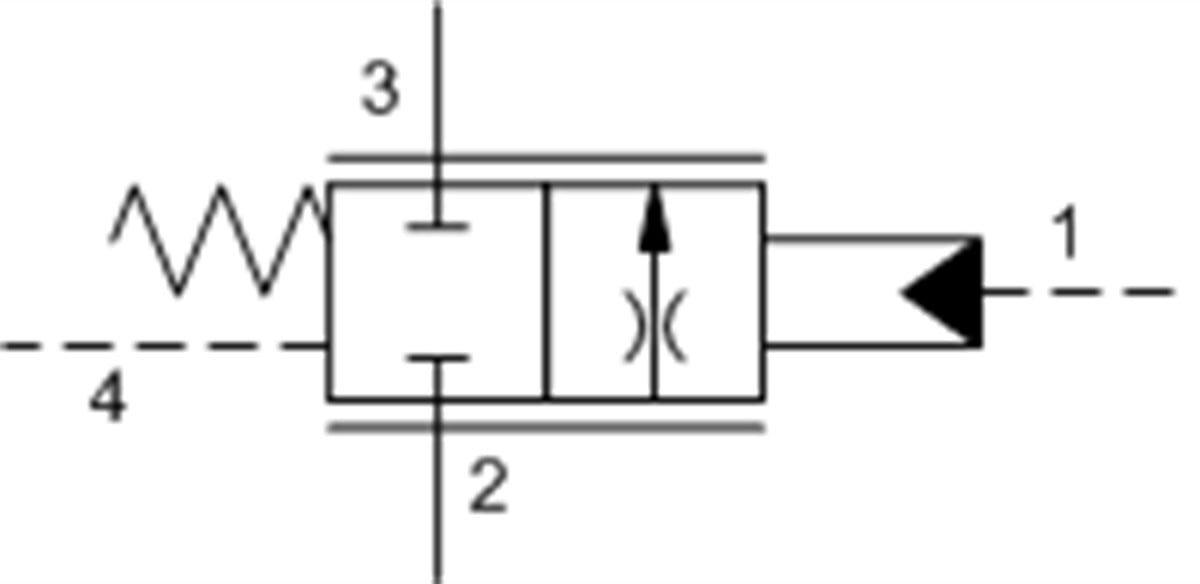

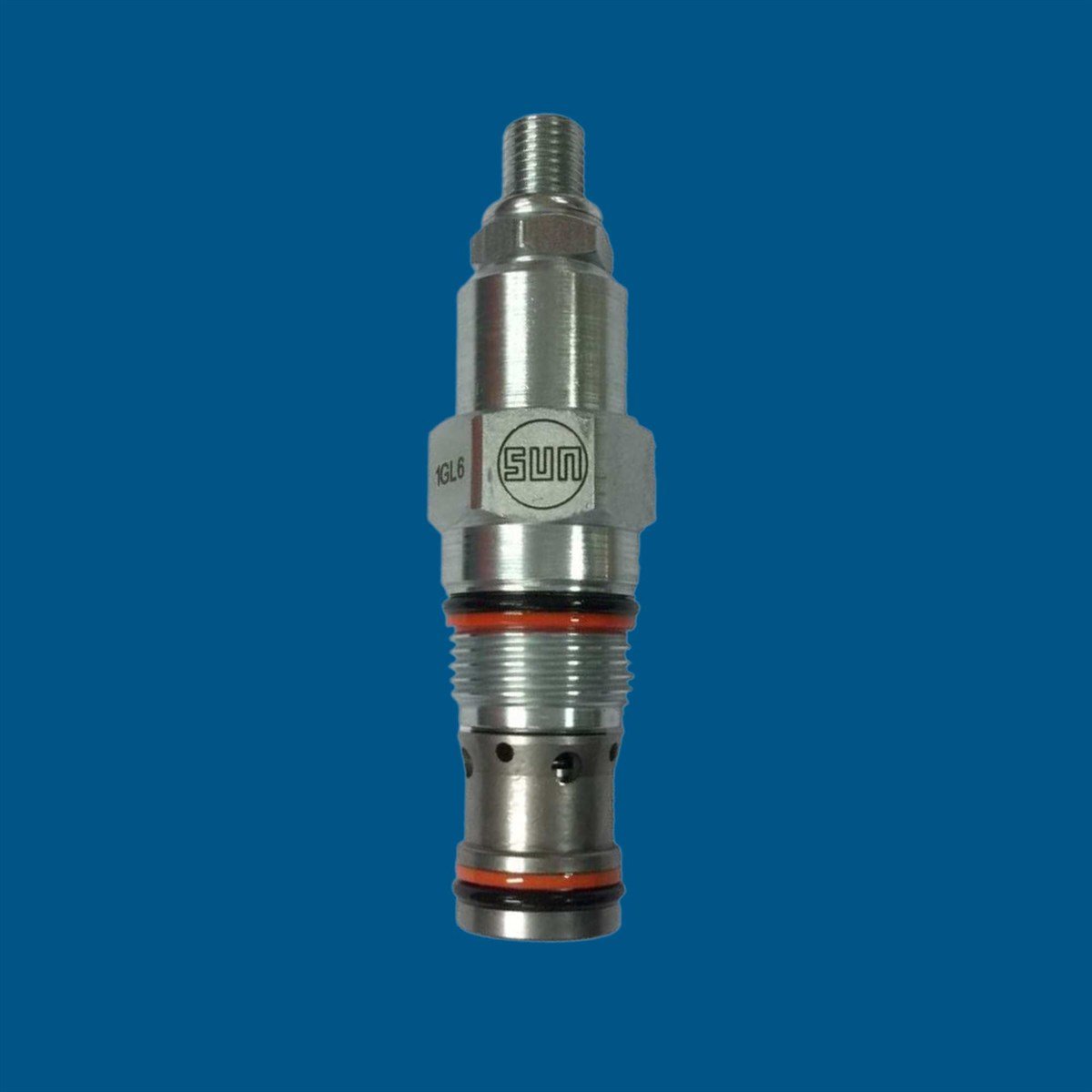

2-way, pilot-shifted, proportional throttle, high capacity

:
FKGA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-23A
Series 3
Capacity 30 gpm120 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 4 in³/min.@1000 psi65 cc/min.@70 bar
Pilot Volume Displacement .10 in³1,6 cc
Minimum Pilot Pressure to Operate 100 psi7 bar
Hysteresis ± 2 %± 2 %
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Seal kit - Cartridge Buna: 990023007
Seal kit - Cartridge EPDM: 990023014
Seal kit - Cartridge Polyurethane: 990023002
Seal kit - Cartridge Viton: 990023006


FKGA
Düşük Geçirgenlik
0-150 lpm
