FDCBLAN

Fiyat : $123.42

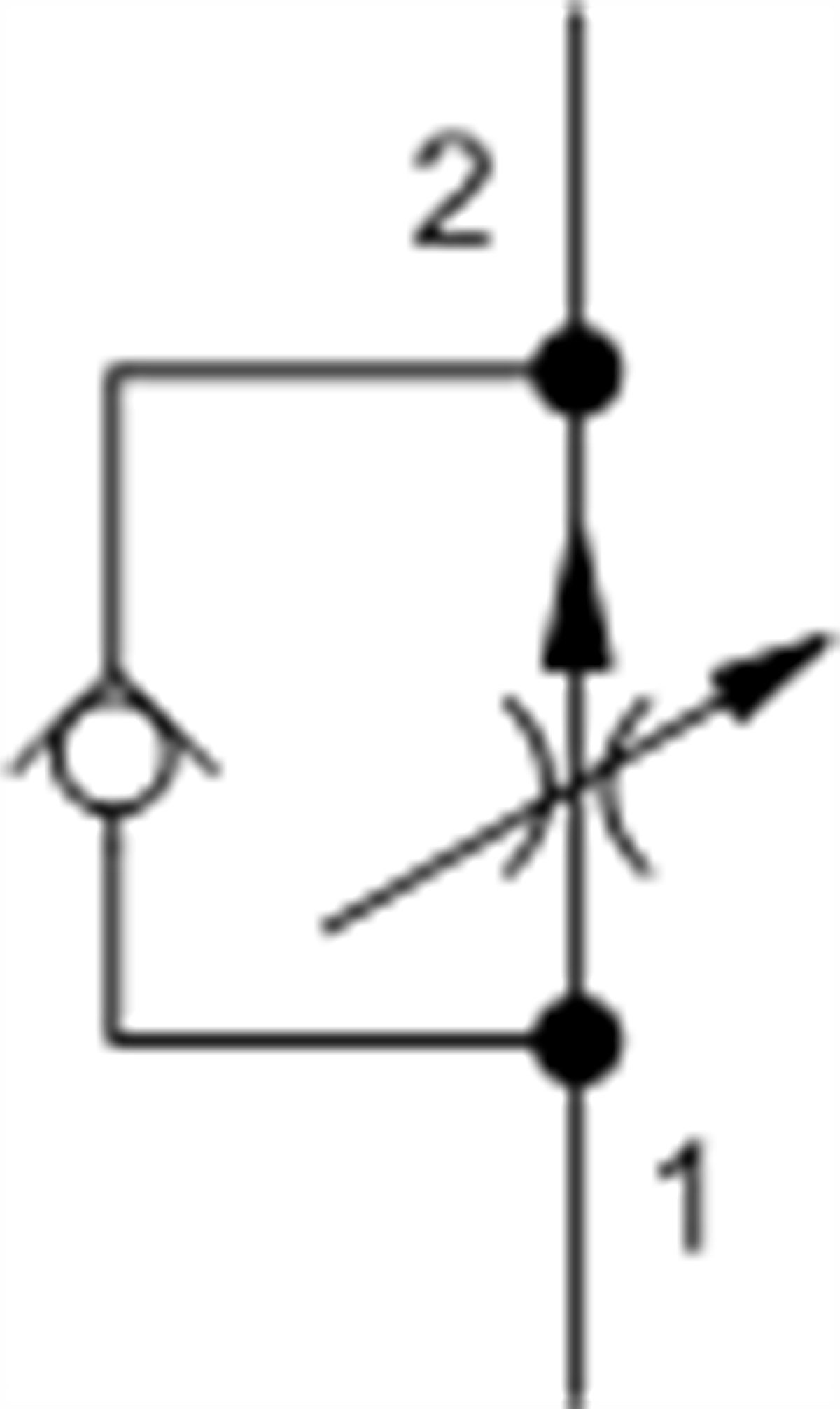

Fully adjustable pressure compensated flow control valve with reverse flow check

:
FDCB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-5A
Series 2
Capacity 12 gpm45 L/min.
Maximum Operating Pressure 5000 psi350 bar
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 55
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Buna: 990203007
Seal kit - Cartridge EPDM: 990203014
Seal kit - Cartridge Viton: 990203006


FDCB
Düşük Geçirgenlik
0-150 lpm
