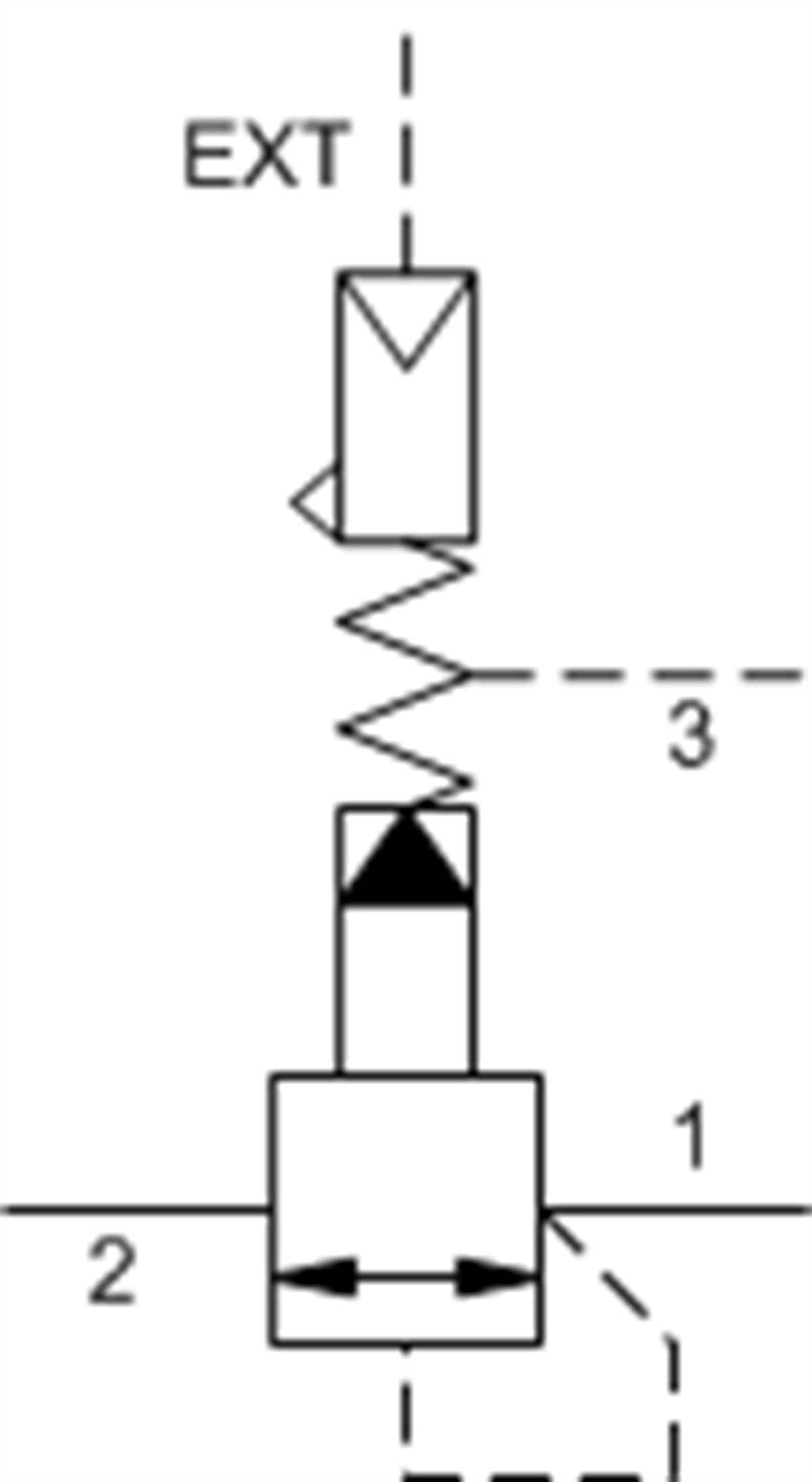

RSJEBBN Air-controlled, pilot-operated, balanced piston sequence valve

RSJEBBN Air-controlled, pilot-operated, balanced piston sequence valve

Price : $618.91
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
RSJE

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-19A
Series 4
Capacity 120 gpm480 L/min.
Maximum Operating Pressure 2000 psi140 bar
Pilot Ratio 20:120:1
Factory Pressure Settings Established at 4 gpm15 L/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 5 in³/min.80 cc/min.
Maximum Air Pressure 150 psi10,5 bar
Response Time - Typical 10 ms10 ms
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Model Weight 3.10 lb1,40 kg
Seal kit - Cartridge Buna: 990019007
Seal kit - Cartridge Polyurethane: 990019002
Seal kit - Cartridge Viton: 990019006
Back to Top


RSJE
High Flow Rate
300-1000 lpm
