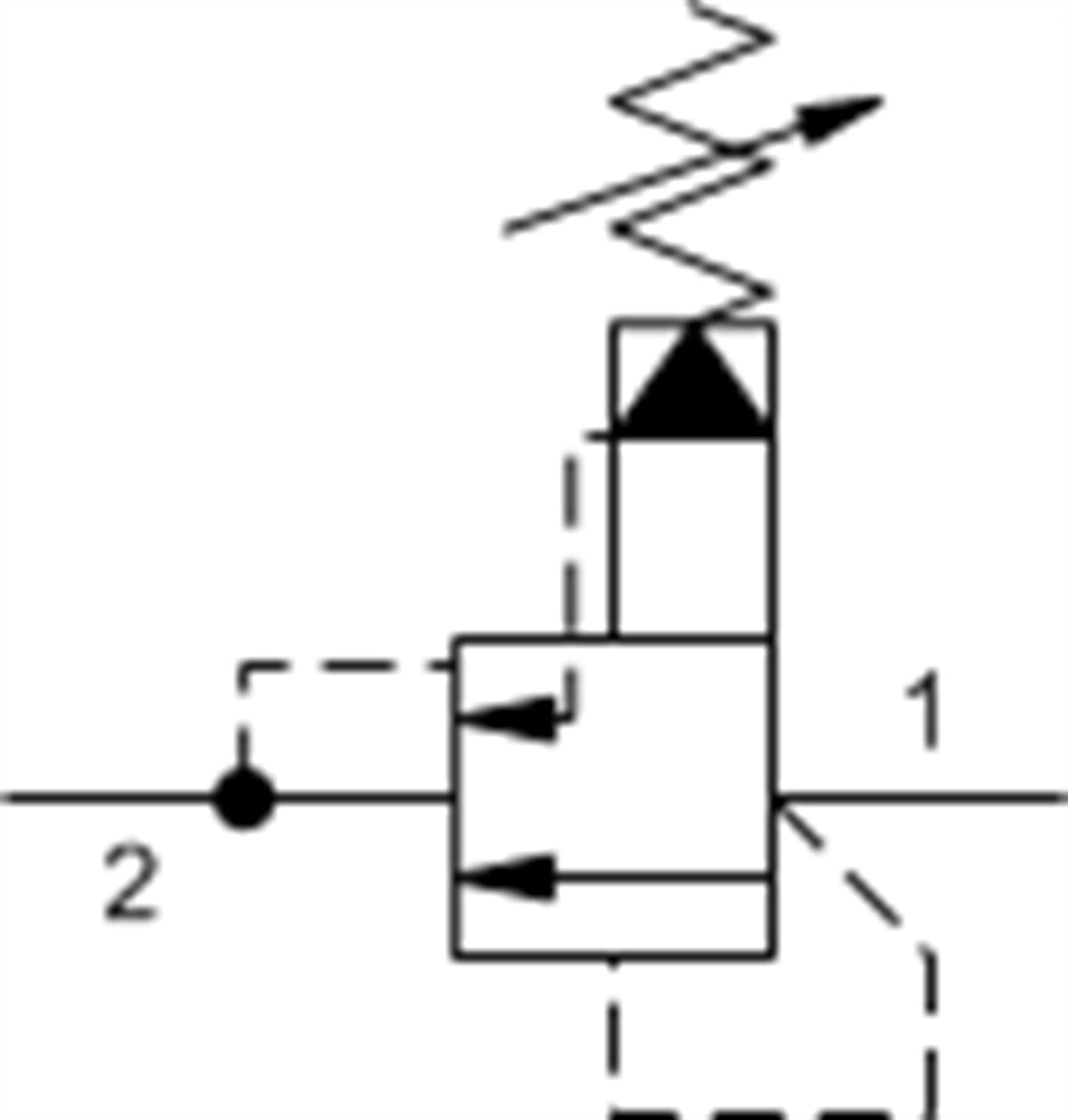

RQEBLAN Kick-down, pilot-operated, balanced piston relief valve

RQEBLAN Kick-down, pilot-operated, balanced piston relief valve

Price : $78.03
:
RQEB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-10A
Series 1
Capacity 25 gpm95 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at Kick down pointKick down point
Maximum Valve Leakage at 110 SUS (24 cSt) 2 in³/min.@1000 psi30 cc/min.@70 bar
Response Time - Typical 25 ms25 ms
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990010007
Seal kit - Cartridge Polyurethane: 990010002
Seal kit - Cartridge Viton: 990010006


RQEB
Low Flow Rate
0-150 lpm
