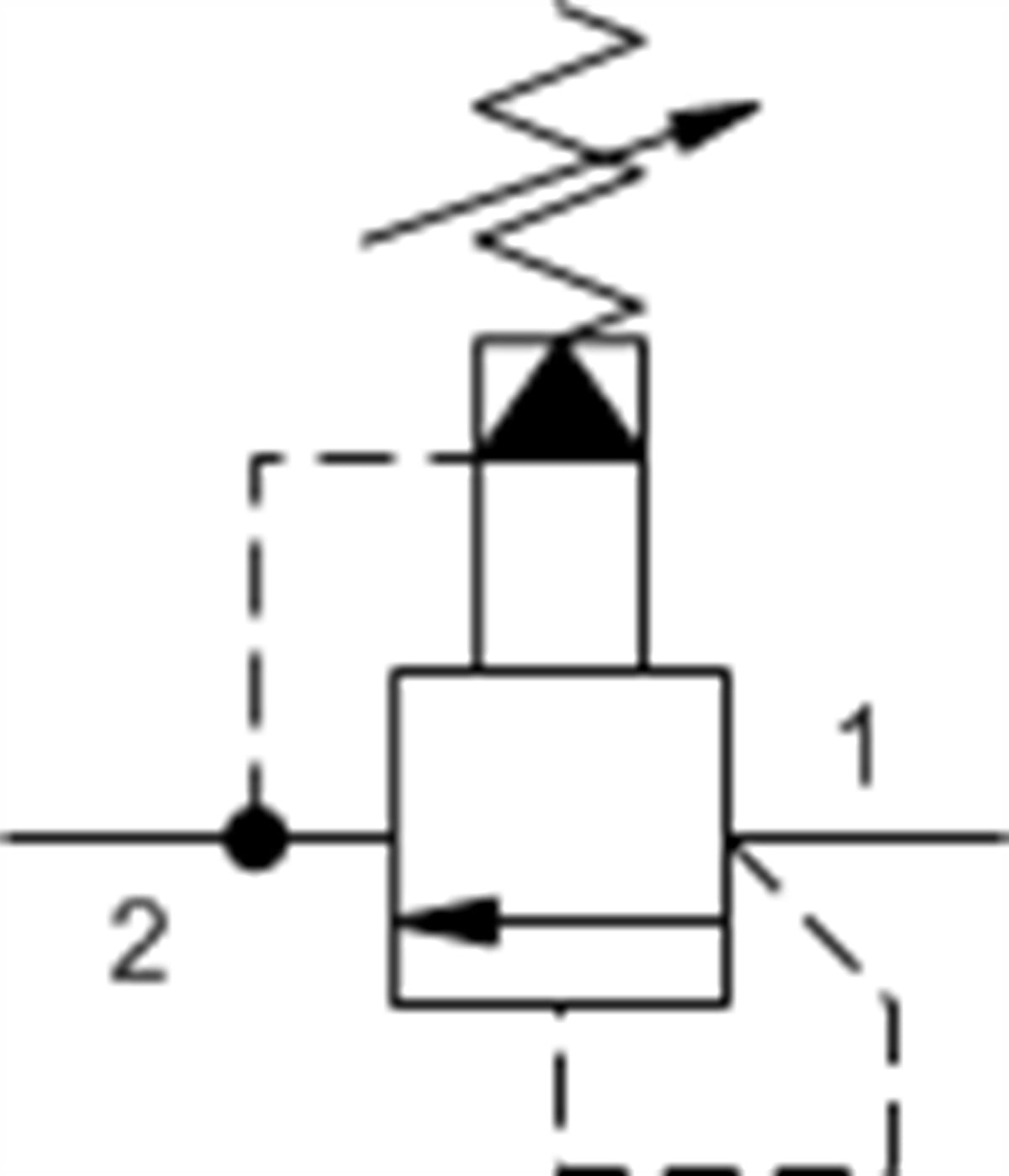

RPESLAN Pilot-operated, balanced poppet relief valve

RPESLAN Pilot-operated, balanced poppet relief valve

Price : $77.18
:
RPES

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-10A
Series 1
Capacity 25 gpm95 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.0,7 cc/min.
Response Time - Typical 7 ms7 ms
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990310007
Seal kit - Cartridge Viton: 990310006


RPES
Low Flow Rate
0-150 lpm
