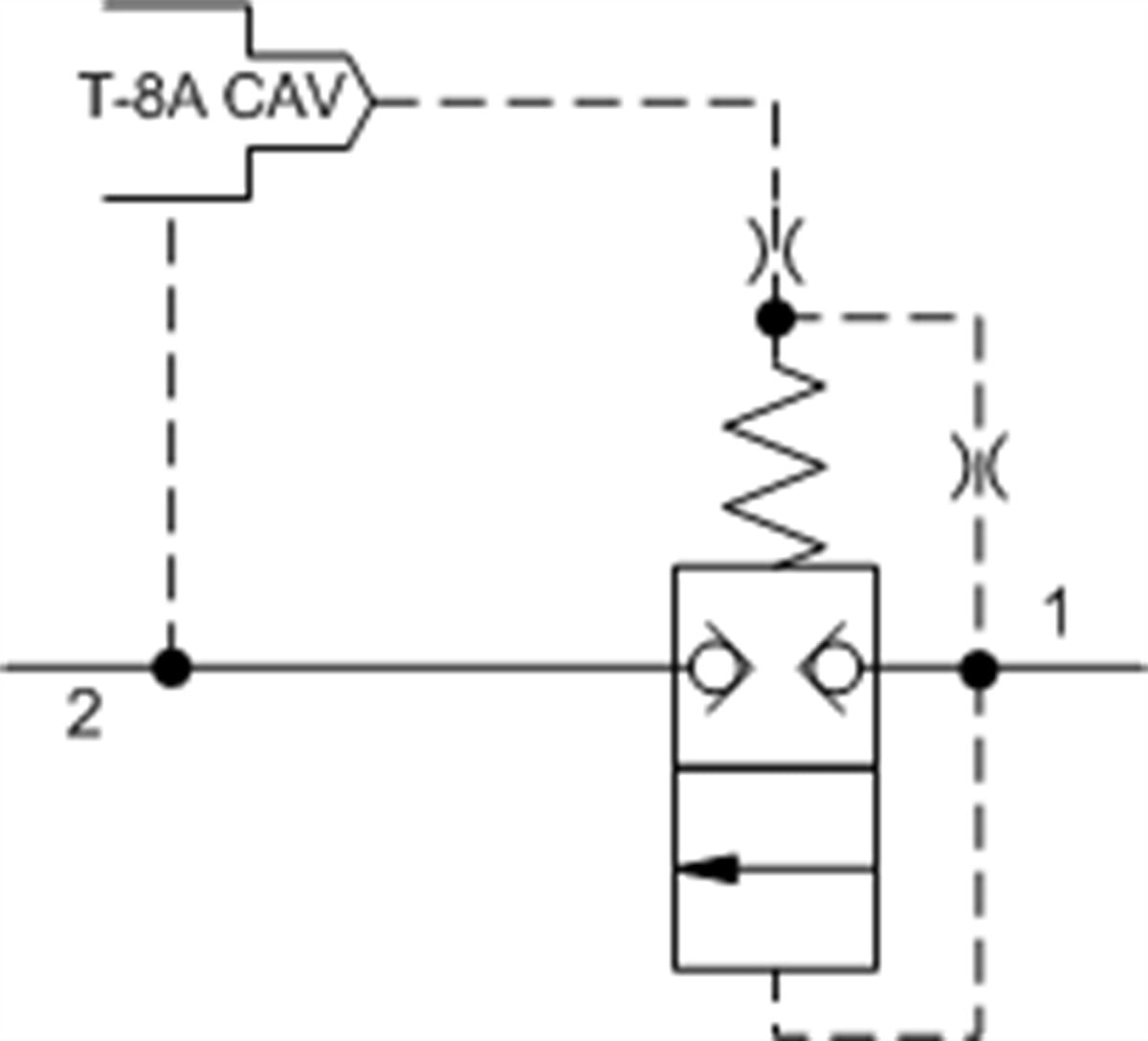

RPES8WN Pilot-operated, balanced poppet relief main stage with integral T-8A control cavity

RPES8WN Pilot-operated, balanced poppet relief main stage with integral T-8A control cavity

Price : $84.88
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
RPES8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-10A
Series 1
Capacity 25 gpm95 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Control Pilot Flow 10 - 25 in³/min.0,16 - 0,41 L/min.
Pilot Control Cavity T-8AT-8A
Pilot Control Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Pilot Control Valve Hex Size 7/8 in.22,2 mm
Main stage leakage at reseat 10 drops/min.0,7 cc/min.
Response Time - Typical 7 ms7 ms
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990310007
Seal kit - Cartridge EPDM: 990310014
Seal kit - Cartridge Viton: 990310006
Back to Top


RPES8
Low Flow Rate
0-150 lpm
