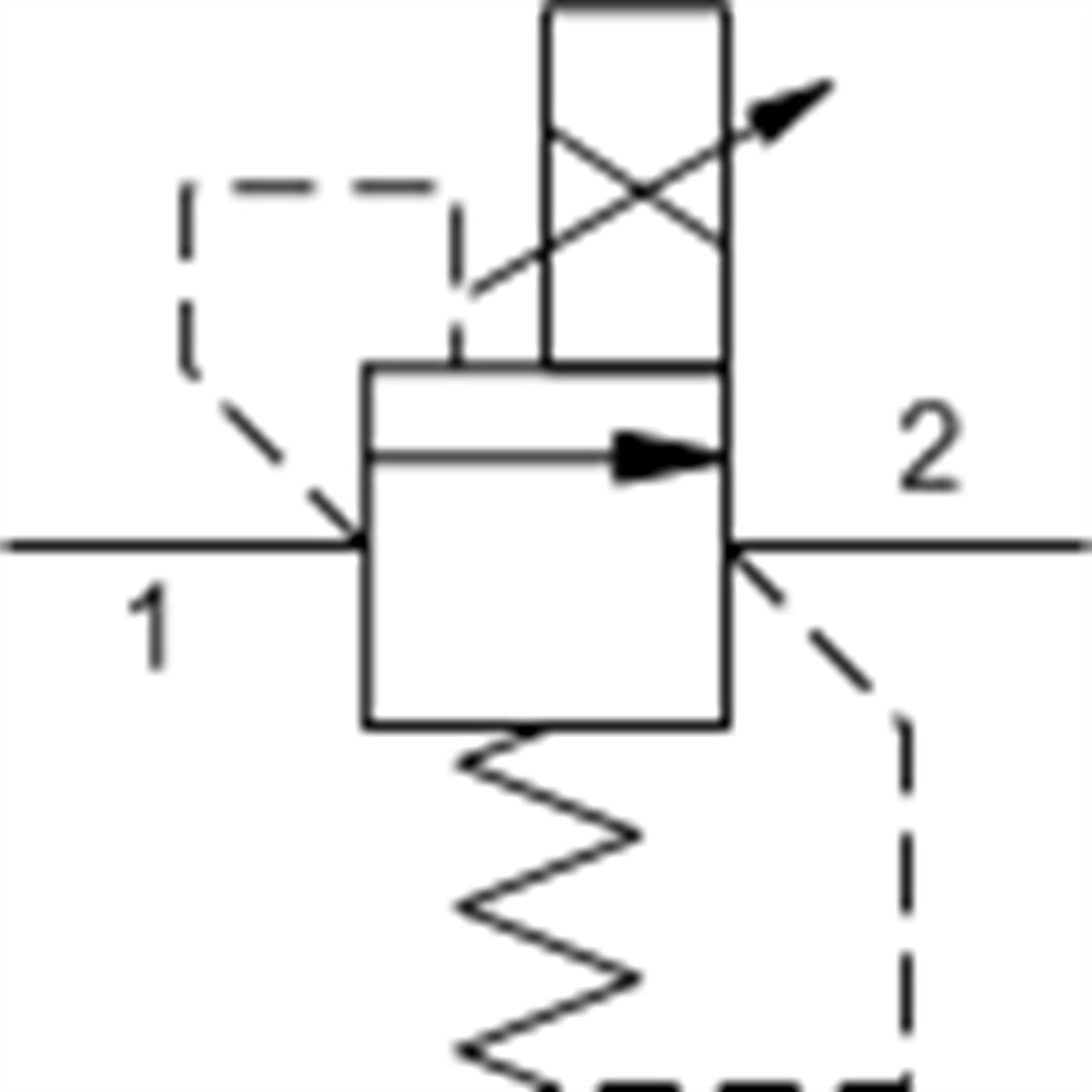

RBANXAN Electro-proportional relief valve - pilot capacity, high pressure setting with no command

RBANXAN Electro-proportional relief valve - pilot capacity, high pressure setting with no command

Price : $194.28
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
RBAN

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-8A
Series P
Capacity .25 gpm1 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at Reseat 1.5 in³/min.25 cc/min.
Reseat >85% of setting>85% of setting
Solenoid Tube Diameter .75 in.19 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Model Weight (with coil) 1.00 lb0,45 kg
Seal kit - Cartridge Buna: 990208007
Seal kit - Cartridge Viton: 990208006
Seal and nut kit - Coil Viton: 990770006
Back to Top


RBAN
Low Flow Rate
0-150 lpm
