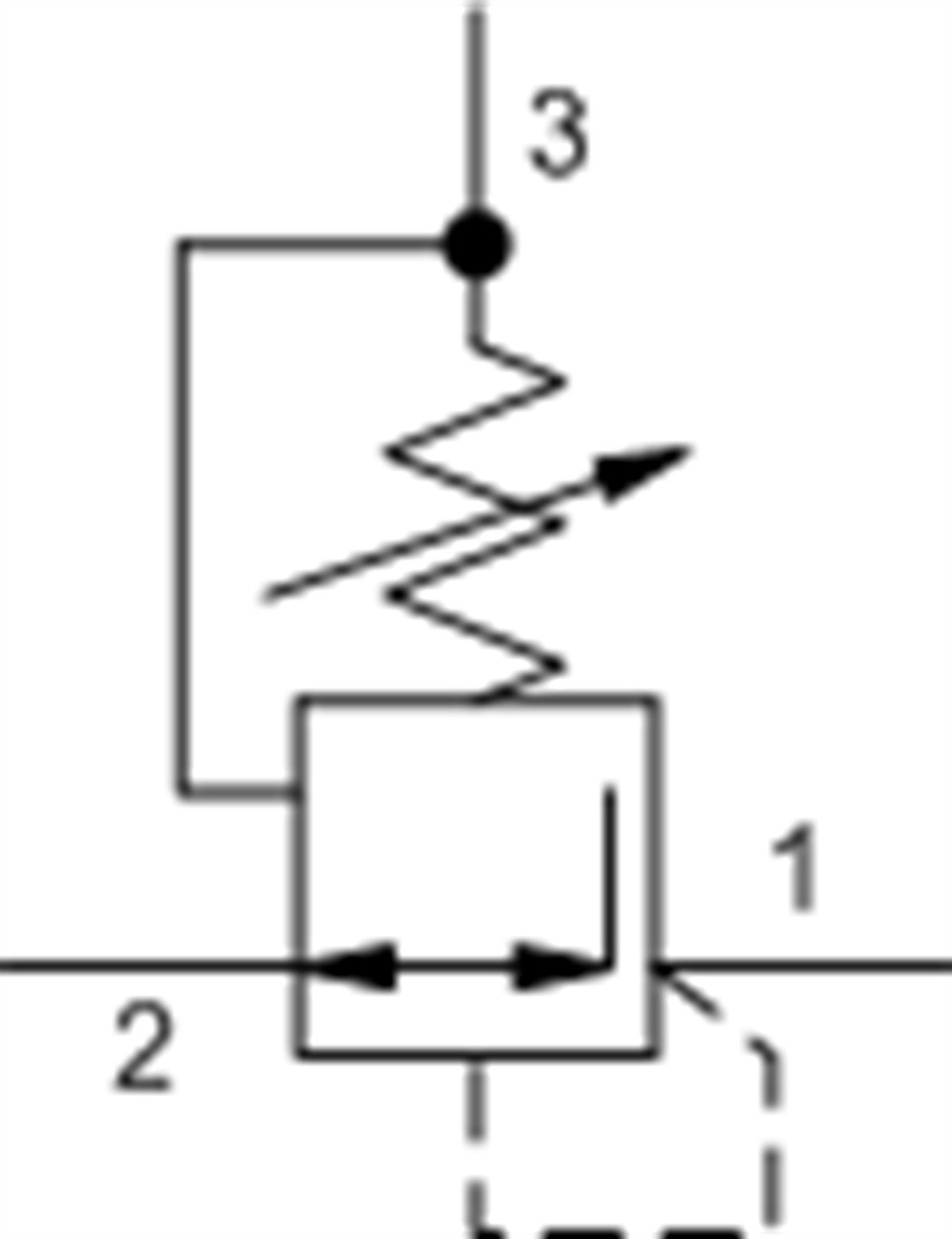

PRJBLAN Direct-acting, pressure reducing/relieving valve

PRJBLAN Direct-acting, pressure reducing/relieving valve

Price : $521.72
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
PRJB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-19A
Series 4
Capacity 80 gpm320 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 0.25 gpm0.25 gpm
Maximum Valve Leakage at 110 SUS (24 cSt) 5 in³/min.80 cc/min.
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 3.10 lb1,40 kg
Seal kit - Cartridge Buna: 990019007
Seal kit - Cartridge Polyurethane: 990019002
Seal kit - Cartridge Viton: 990019006
Back to Top


PRJB
High Flow Rate
300-1000 lpm
