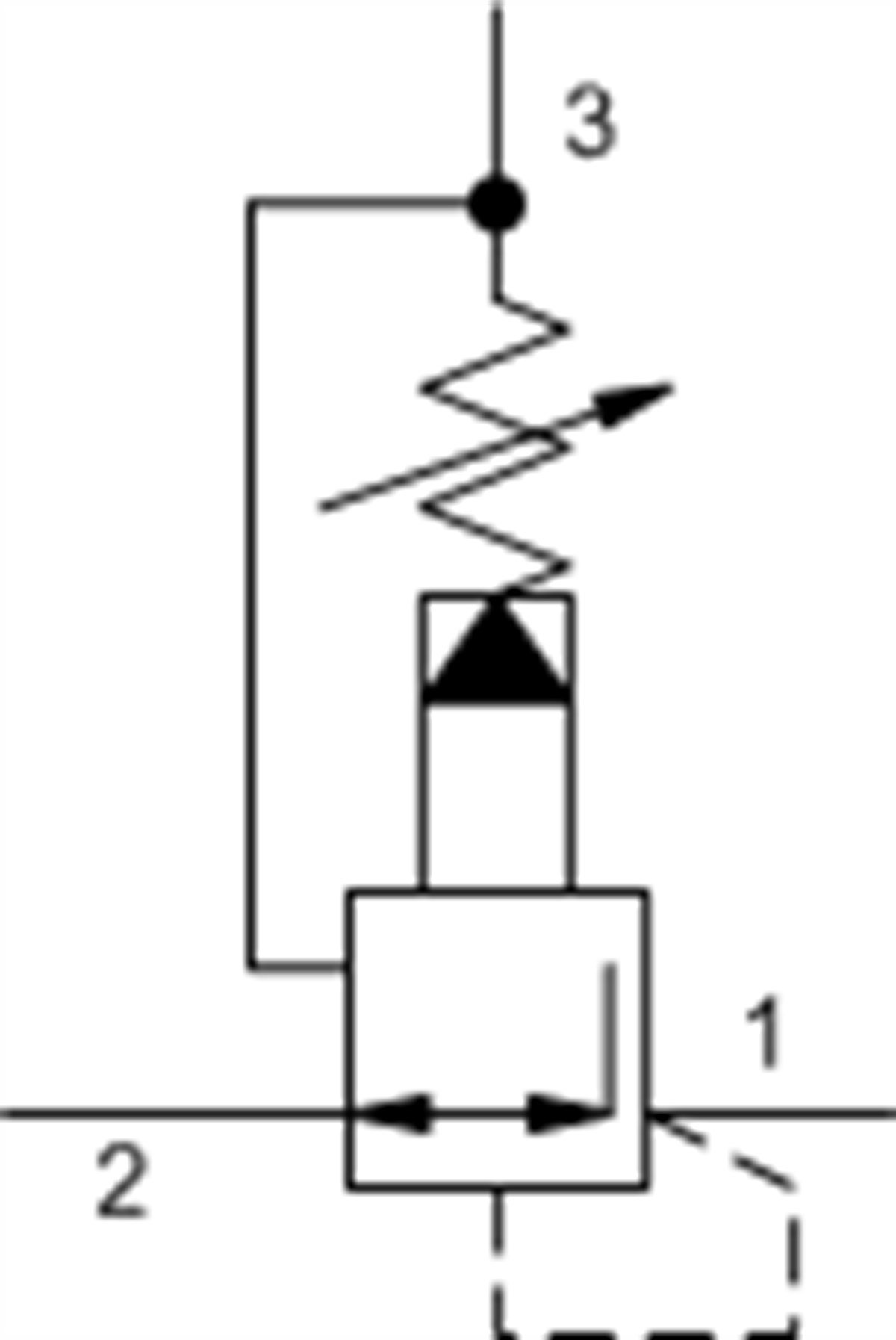

PPDBLAN Pilot-operated, pressure reducing/relieving valve

PPDBLAN Pilot-operated, pressure reducing/relieving valve

Price : $86.70
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
PPDB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-11A
Series 1
Capacity 10 gpm40 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at blocked control port (dead headed)blocked control port (dead headed)
Control Pilot Flow 7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990011007
Seal kit - Cartridge EPDM: 990011014
Seal kit - Cartridge Polyurethane: 990011002
Seal kit - Cartridge Viton: 990011006
Back to Top


PPDB
Low Flow Rate
0-150 lpm
