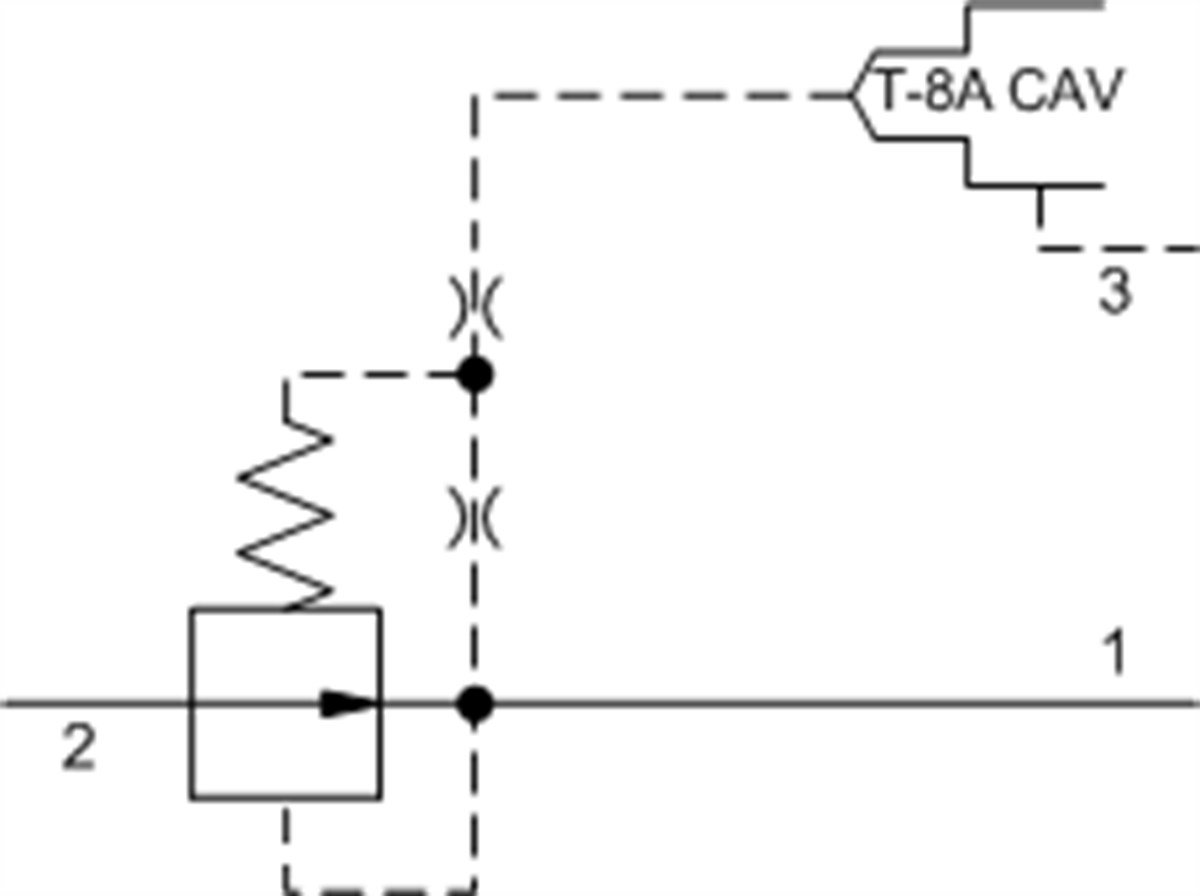

PBDB8WN Pilot-operated, pressure reducing main stage with integral T-8A control cavity

PBDB8WN Pilot-operated, pressure reducing main stage with integral T-8A control cavity

Price : $79.64
:
PBDB8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-11A
Series 1
Capacity 10 gpm40 L/min.
Maximum Operating Pressure 5000 psi350 bar
Control Pilot Flow 7 - 10 in³/min.0,11 - 0,16 L/min.
Pilot Control Cavity T-8AT-8A
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990011007
Seal kit - Cartridge EPDM: 990011014
Seal kit - Cartridge Polyurethane: 990011002
Seal kit - Cartridge Viton: 990011006


PBDB8
Low Flow Rate
0-150 lpm
