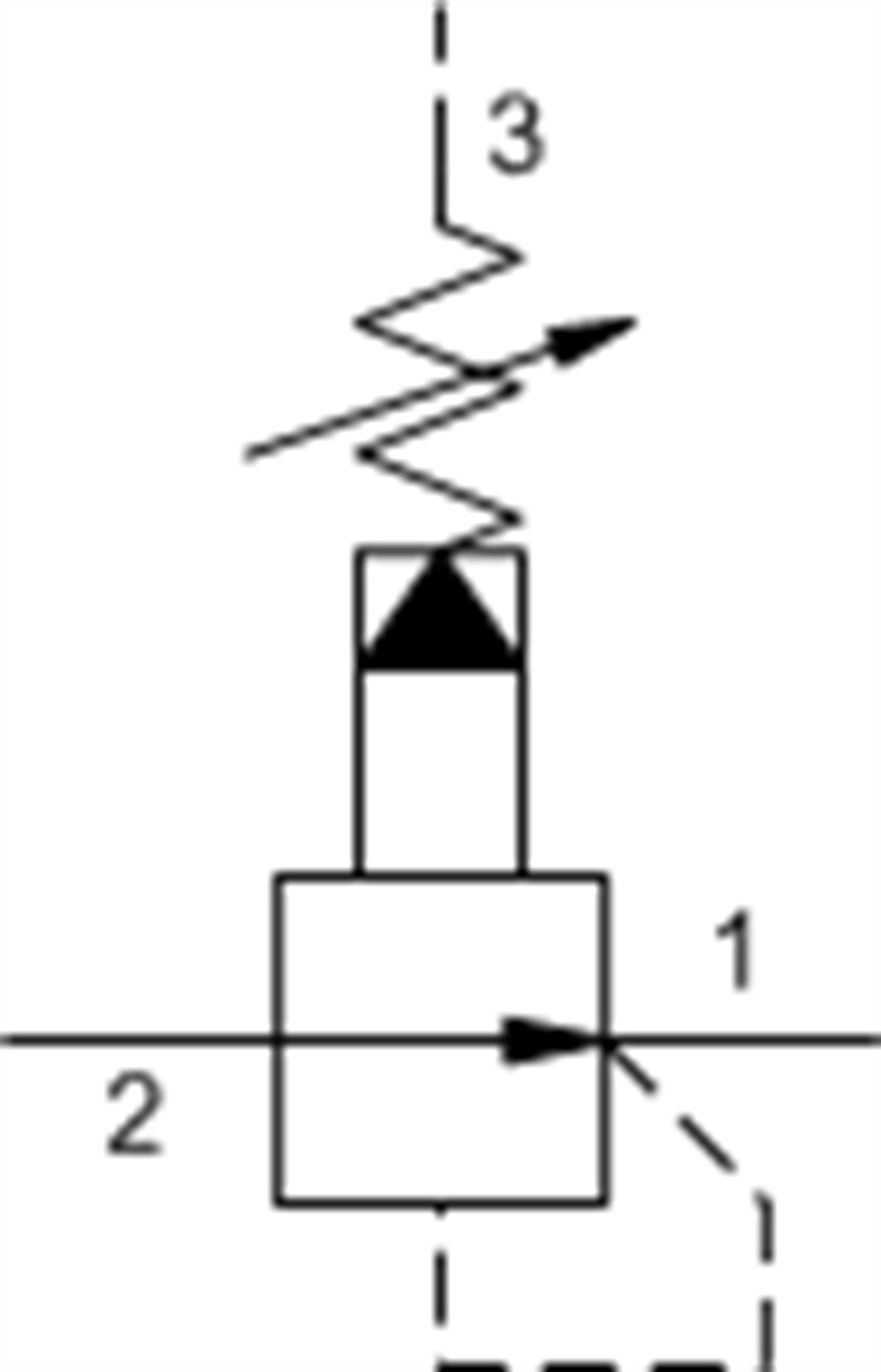

PBBBLAN Pilot-operated, pressure reducing valve

PBBBLAN Pilot-operated, pressure reducing valve

Price : $71.93
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
PBBB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-163A
Series 0
Capacity 5 gpm20 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at blocked control port (dead headed)blocked control port (dead headed)
Control Pilot Flow 7 - 10 in³/min.0,11 - 0,16 L/min.
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 3/4 in.19,1 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 1/2 in.12,7 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990163007
Seal kit - Cartridge Polyurethane: 990163002
Seal kit - Cartridge Viton: 990163006
Back to Top


PBBB
Low Flow Rate
0-150 lpm
