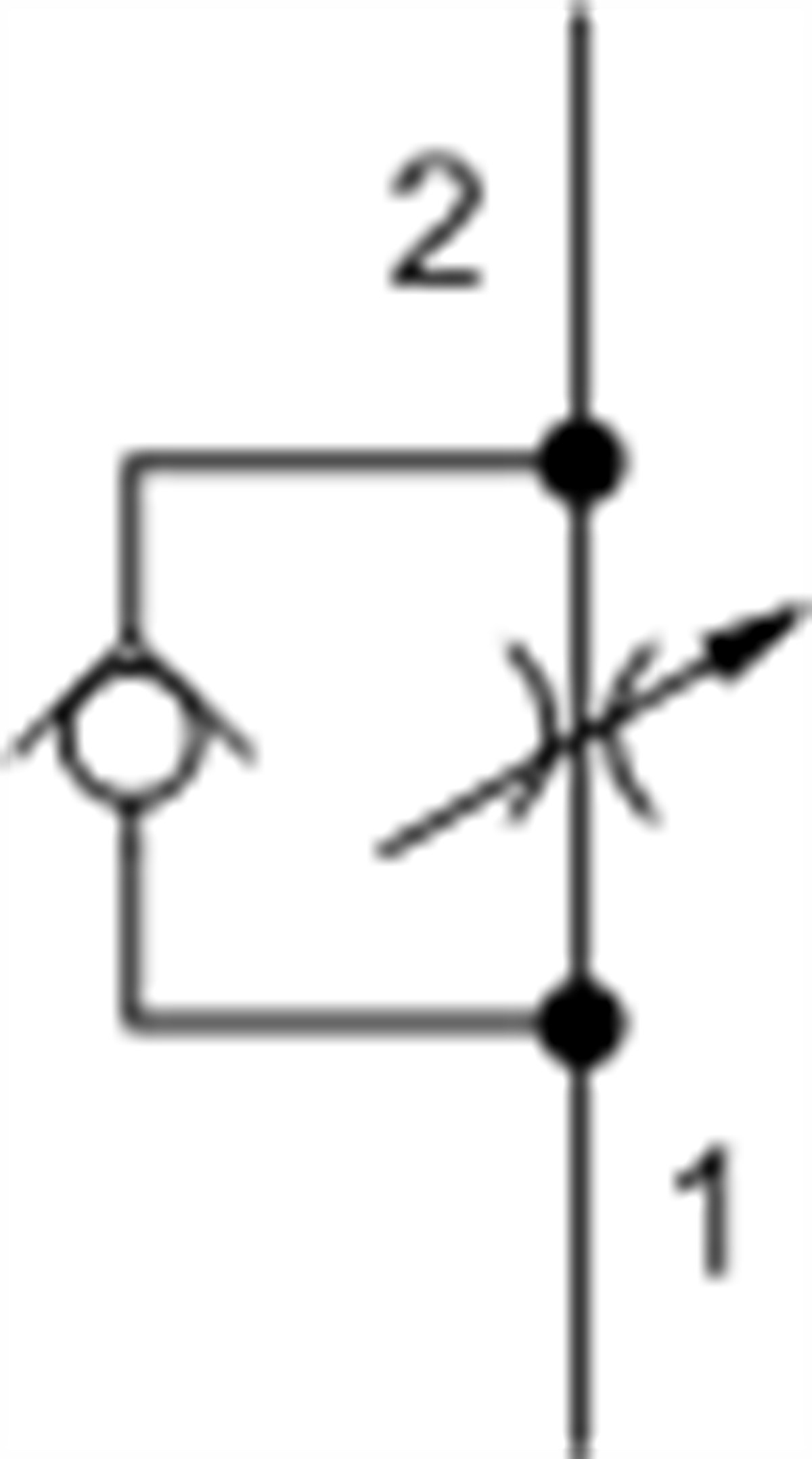

NCEBLCN Fully adjustable needle valve with reverse flow check

NCEBLCN Fully adjustable needle valve with reverse flow check

Price : $58.87
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
NCEB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-5A
Series 2
Capacity 12 gpm (.25 inch)45 L/min. (6,4 mm)
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.0,7 cc/min.
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 55
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .40 lb0,20 kg
Seal kit - Cartridge Buna: 990203007
Seal kit - Cartridge EPDM: 990203014
Seal kit - Cartridge Viton: 990203006
Back to Top


NCEB
Low Flow Rate
0-150 lpm
