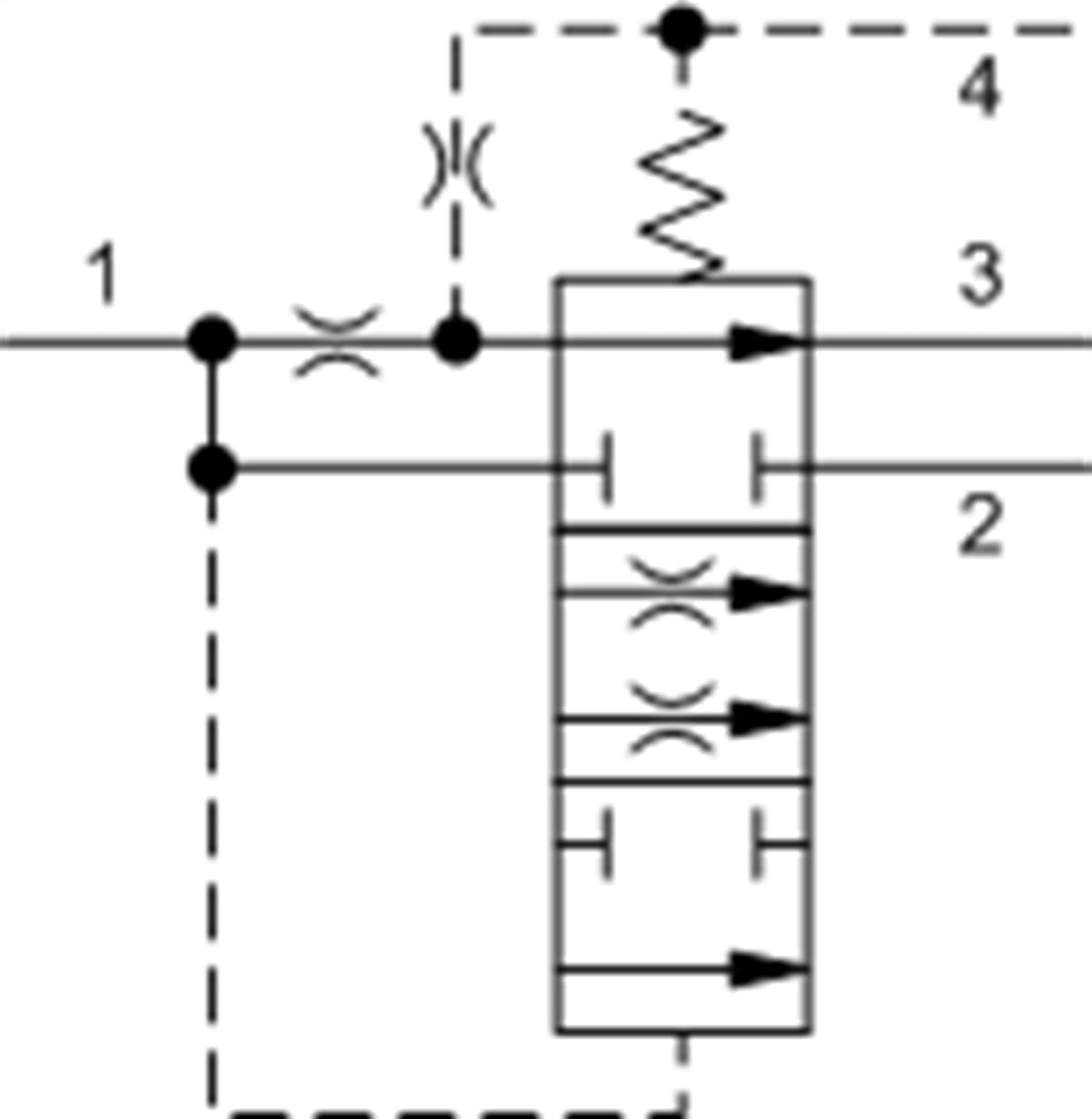

FVFA8AN Ventable, fixed-orifice, bypass/restrictive, priority flow control valve

FVFA8AN Ventable, fixed-orifice, bypass/restrictive, priority flow control valve

Price : $535.42
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FVFA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-24A
Series 4
Capacity 50 gpm200 L/min.
Maximum Operating Pressure 5000 psi350 bar
Nominal Vent Flow 46 in³/min.0,75 L/min.
Maximum Input Flow 120 gpm480 L/min.
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 2.80 lb1,30 kg
Seal kit - Cartridge Buna: 990024007
Seal kit - Cartridge EPDM: 990024014
Seal kit - Cartridge Polyurethane: 990024002
Seal kit - Cartridge Viton: 990024006
Back to Top


FVFA
Medium Flow Rate
150-300 lpm
