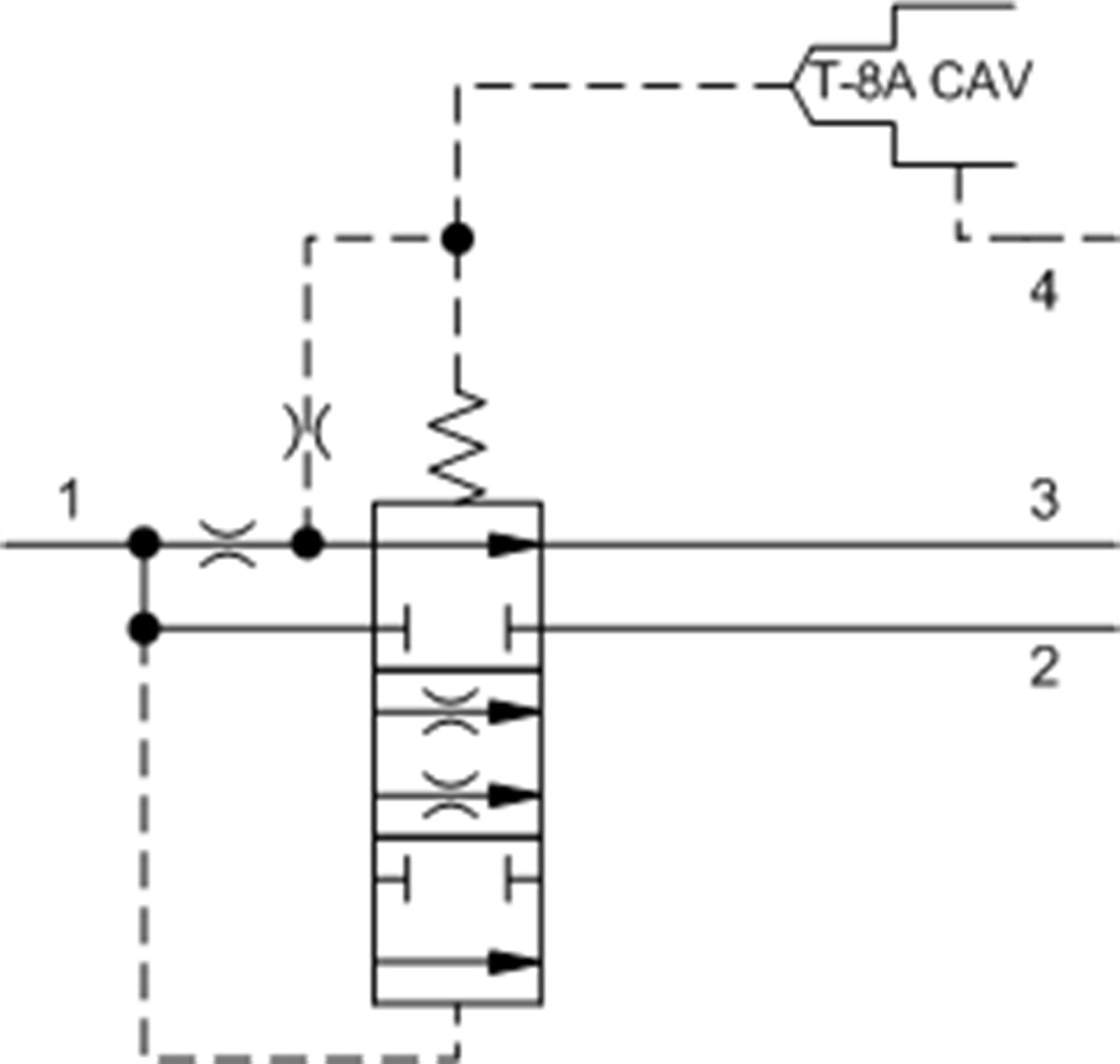

FVDA8AN Ventable, fixed-orifice, bypass/restrictive, priority flow control valve with integral T-8A control cavity

FVDA8AN Ventable, fixed-orifice, bypass/restrictive, priority flow control valve with integral T-8A control cavity

Price : $145.15
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FVDA8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-22A
Series 2
Capacity 12 gpm45 L/min.
Maximum Operating Pressure 5000 psi350 bar
Nominal Vent Flow 46 in³/min.0,75 L/min.
Maximum Input Flow 30 gpm120 L/min.
Pilot Control Cavity T-8AT-8A
Pilot Control Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Pilot Control Valve Hex Size 7/8 in.22,2 mm
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Model Weight .40 lb0,20 kg
Seal kit - Cartridge Buna: 990022007
Seal kit - Cartridge EPDM: 990022014
Seal kit - Cartridge Polyurethane: 990022002
Seal kit - Cartridge Viton: 990022006
Back to Top


FVDA8
Low Flow Rate
0-150 lpm
