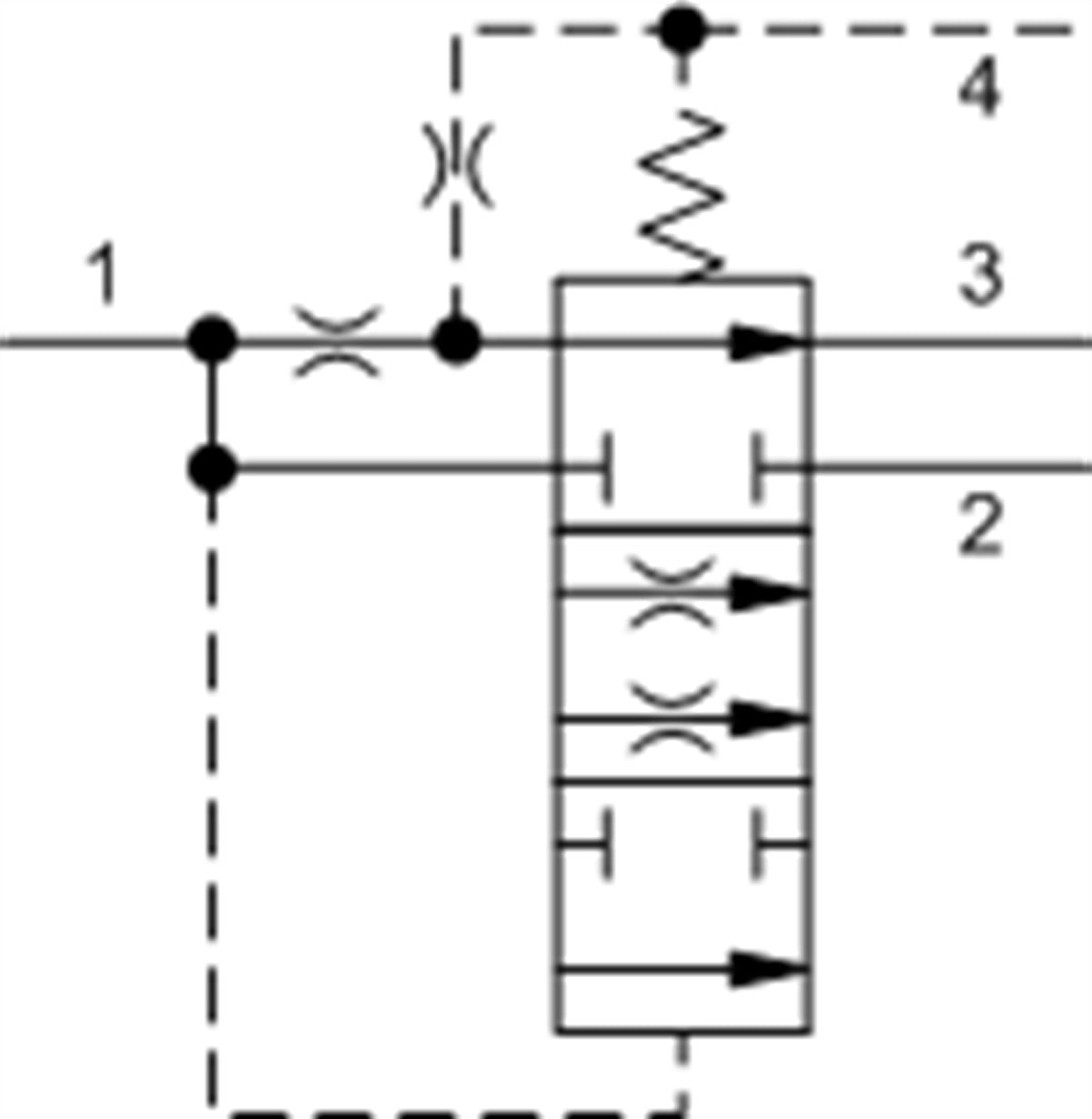

FVDA8AN Ventable, fixed-orifice, bypass/restrictive, priority flow control valve

FVDA8AN Ventable, fixed-orifice, bypass/restrictive, priority flow control valve

Price : $145.15
:
FVDA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-22A
Series 2
Capacity 12 gpm45 L/min.
Maximum Operating Pressure 5000 psi350 bar
Nominal Vent Flow 46 in³/min.0,75 L/min.
Maximum Input Flow 30 gpm120 L/min.
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .40 lb0,20 kg
Seal kit - Cartridge Buna: 990022007
Seal kit - Cartridge EPDM: 990022014
Seal kit - Cartridge Polyurethane: 990022002
Seal kit - Cartridge Viton: 990022006


FVDA
Low Flow Rate
0-150 lpm
