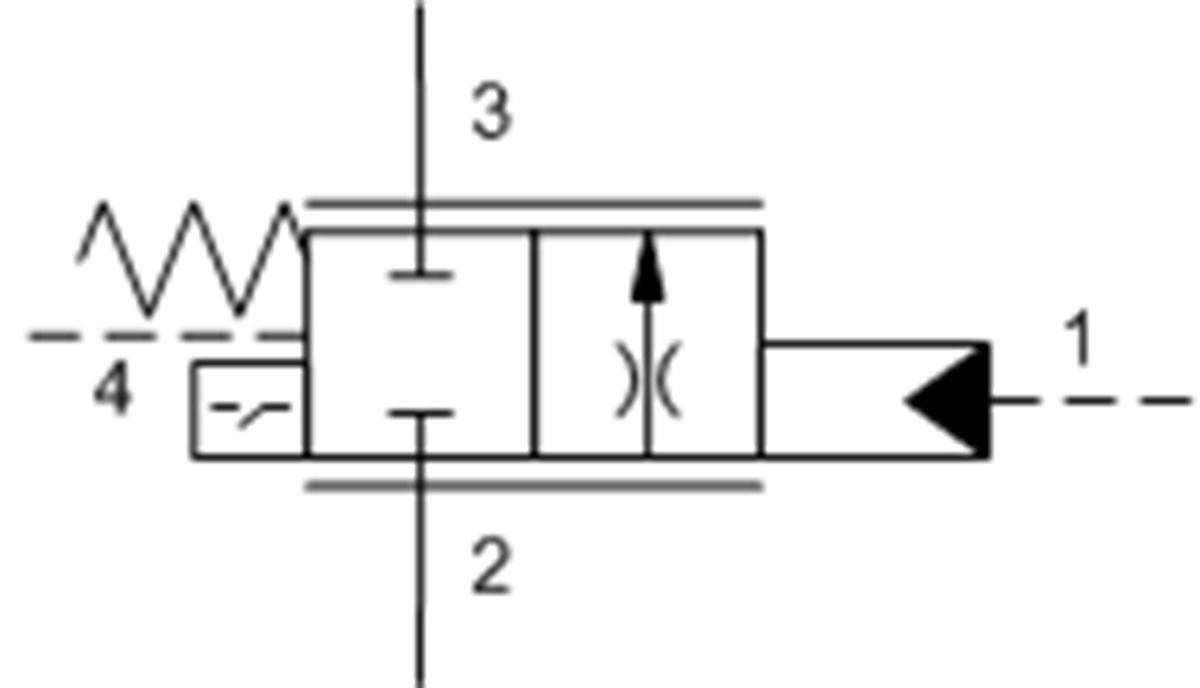

FTDAZCN 2-way, pilot-shifted, dual path, proportional throttle with position switch

FTDAZCN 2-way, pilot-shifted, dual path, proportional throttle with position switch

Price : $750.78
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FTDAZ

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-52AD
Series 2
Capacity 30 gpm120 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Pressure Required to Shift Valve 50 - 120 psi3,5 - 8 bar
Pilot Pressure Required for Full Shift at Rated Flow 290 - 340 psi20 - 23 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 5 in³/min.@1000 psi80 cc/min.@70 bar
Pilot Volume Displacement .05 in³0,82 cc
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Seal kit - Cartridge Buna: 990152007
Seal kit - Cartridge Viton: 990152006
Back to Top


FTDAZ
Low Flow Rate
0-150 lpm
