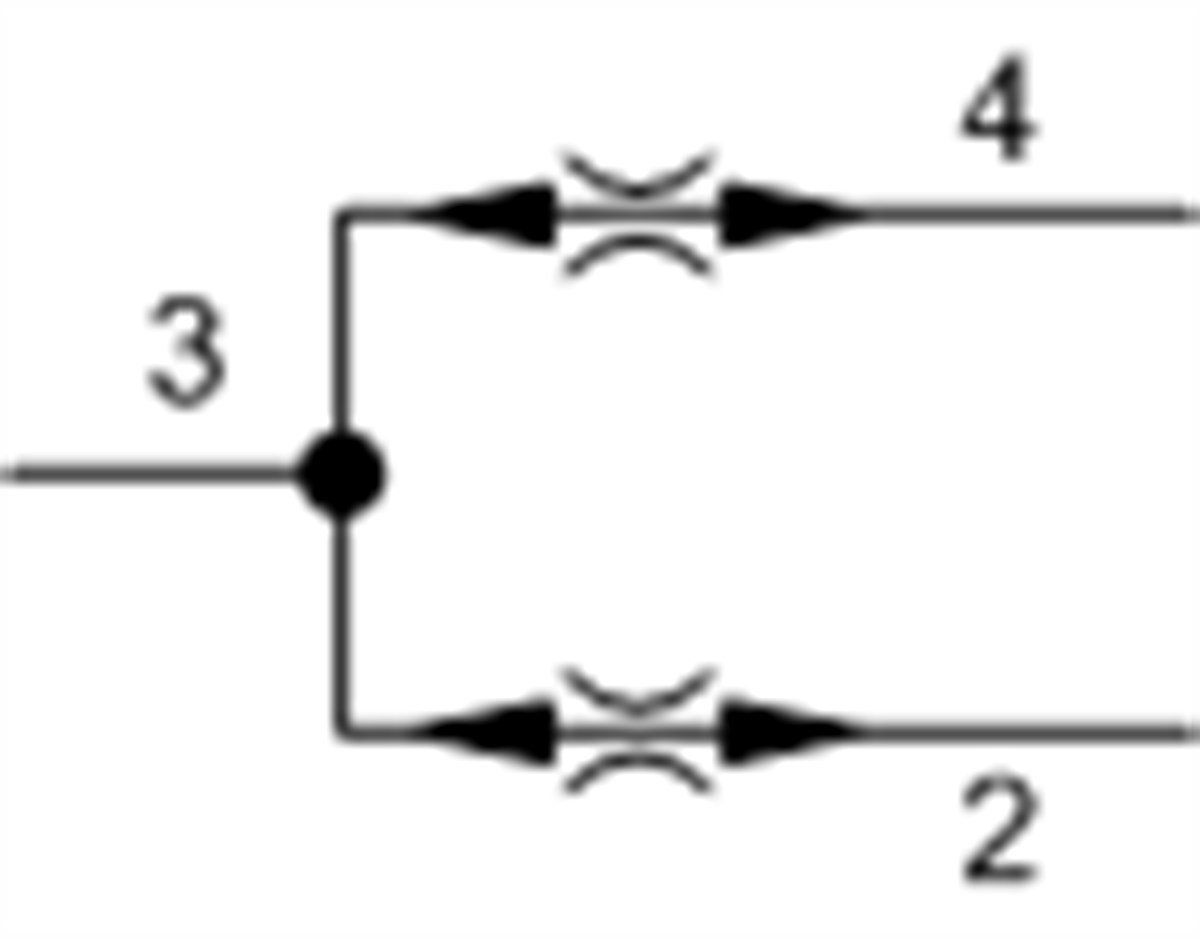

FSFAXAN Closed center, flow divider-combiner valve

FSFAXAN Closed center, flow divider-combiner valve

Price : $780.11
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FSFA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-34A
Series 4
Capacity 12 - 60 gpm45 - 240 L/min.
Maximum Operating Pressure 5000 psi350 bar
Divisional Accuracy at Minimum Input Flow 50% ±4.5%50% ±4.5%
Divisional Accuracy at Max Input Flow 50% ±2.5%50% ±2.5%
Pressure Drop at Minimum Rated Input Flow 30 psi2 bar
Pressure Drop at Maximum Rated Input Flow 350 psi24 bar
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Model Weight 2.80 lb1,30 kg
Seal kit - Cartridge Buna: 990034007
Seal kit - Cartridge Polyurethane: 990034002
Seal kit - Cartridge Viton: 990034006
Back to Top


FSFA
Medium Flow Rate
150-300 lpm
