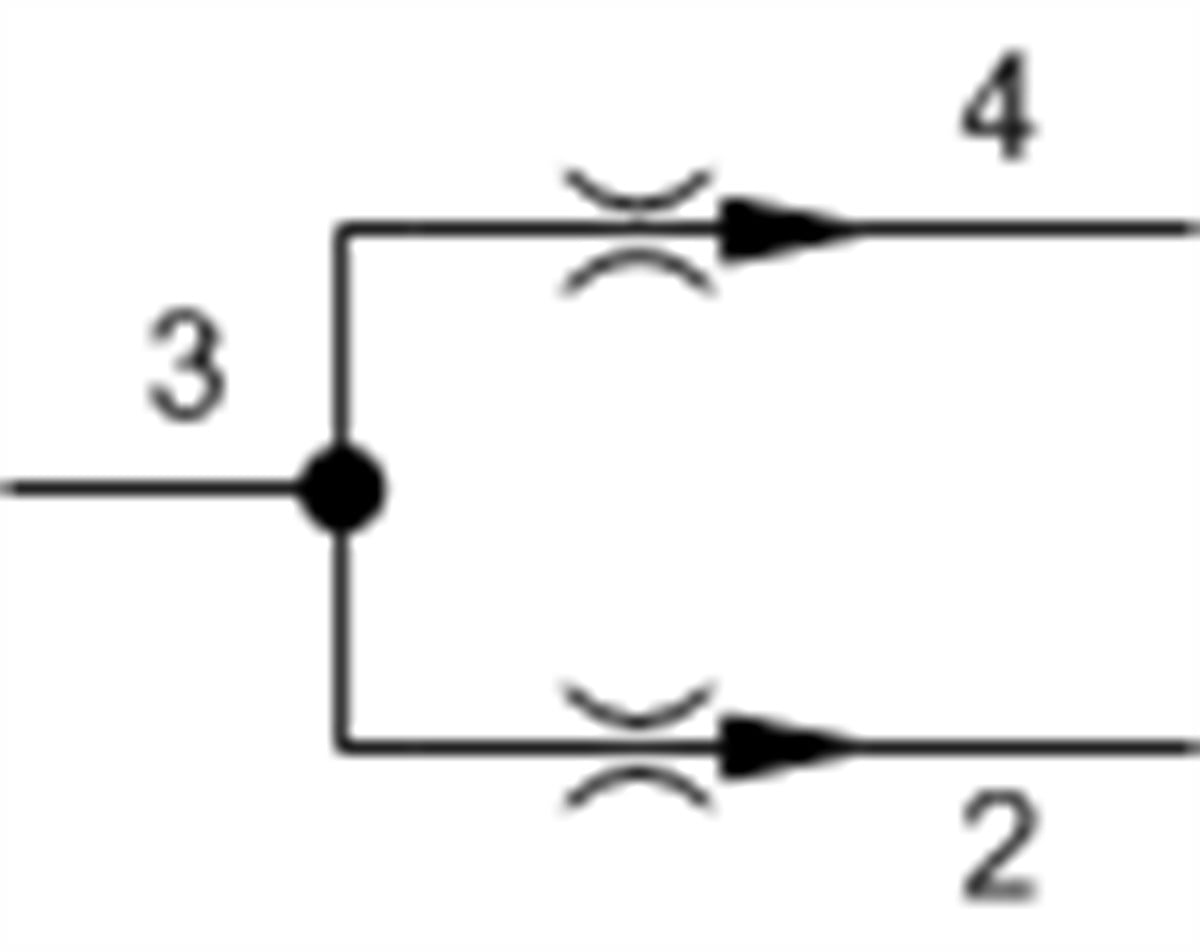

FSCDXAN Flow divider valve

FSCDXAN Flow divider valve

Price : $109.61
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FSCD

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-31A
Series 1
Capacity 1.5 - 8 gpm6 - 30 L/min.
Maximum Operating Pressure 5000 psi350 bar
Divisional Accuracy at Minimum Input Flow ±6.5%±6.5%
Divisional Accuracy at Max Input Flow ±3.5%±3.5%
Pressure Drop at Minimum Rated Input Flow 30 psi2 bar
Pressure Drop at Maximum Rated Input Flow 250 psi18 bar
Rated Input Flow with 50/50 Split 1.5 - 8 gpm6 - 30 L/min.
Rated Input Flow with 40/60 Split 1.4 - 7 gpm5,3 - 26,5 L/min.
Rated Input Flow with 33/67 Split 1.2 - 6 gpm4,5 - 22,7 L/min.
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Buna: 990031007
Seal kit - Cartridge Polyurethane: 990031002
Seal kit - Cartridge Viton: 990031006
Back to Top


FSCD
Low Flow Rate
0-150 lpm
