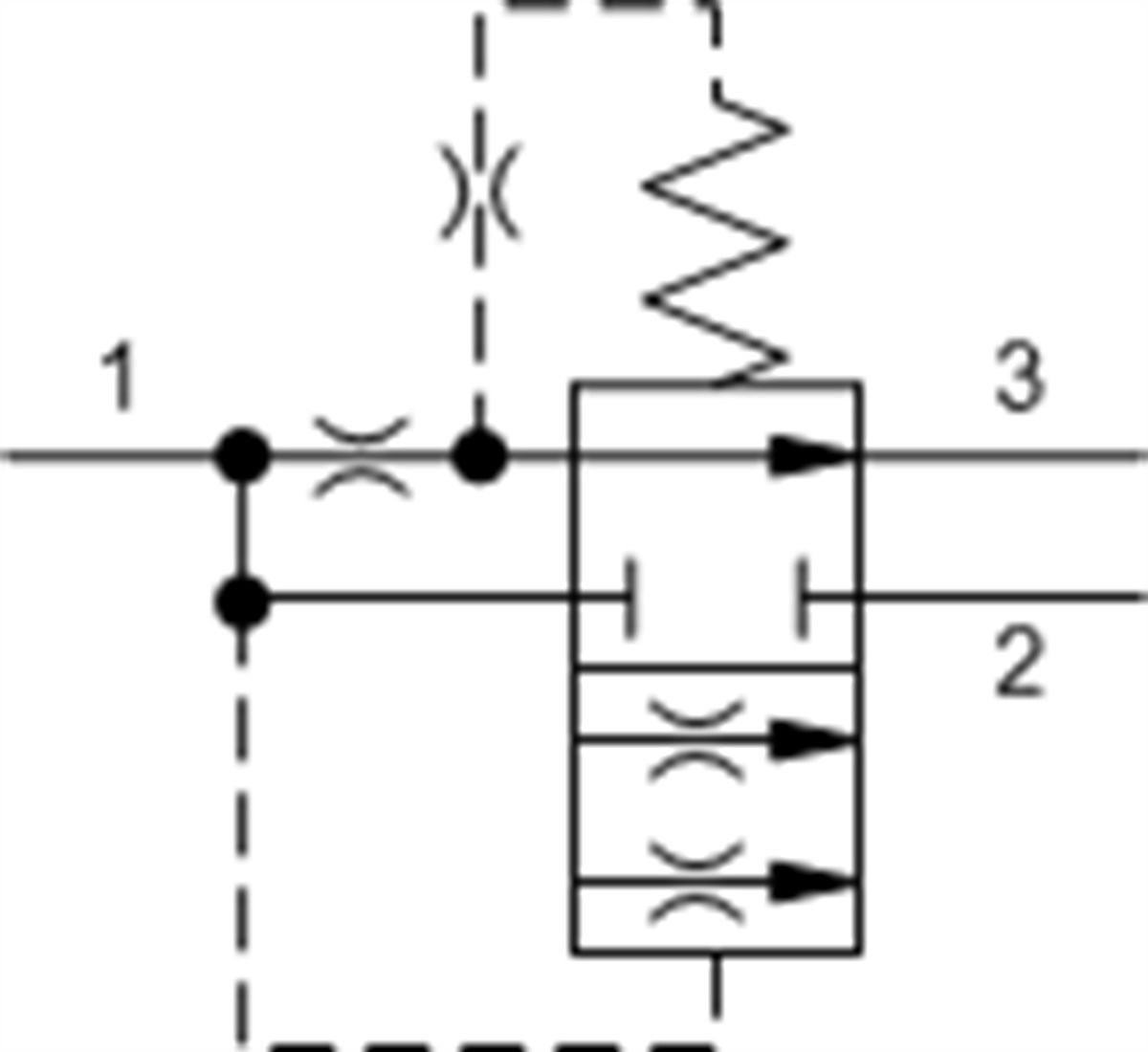

FREAXAN Fixed-orifice, bypass/restrictive, priority, flow control valve

FREAXAN Fixed-orifice, bypass/restrictive, priority, flow control valve

Price : $179.40
:
FREA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-17A
Series 3
Capacity 25 gpm95 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Input Flow 60 gpm240 L/min.
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 1.25 lb0,60 kg
Seal kit - Cartridge Buna: 990017007
Seal kit - Cartridge Polyurethane: 990017002
Seal kit - Cartridge Viton: 990017006


FREA
Low Flow Rate
0-150 lpm
