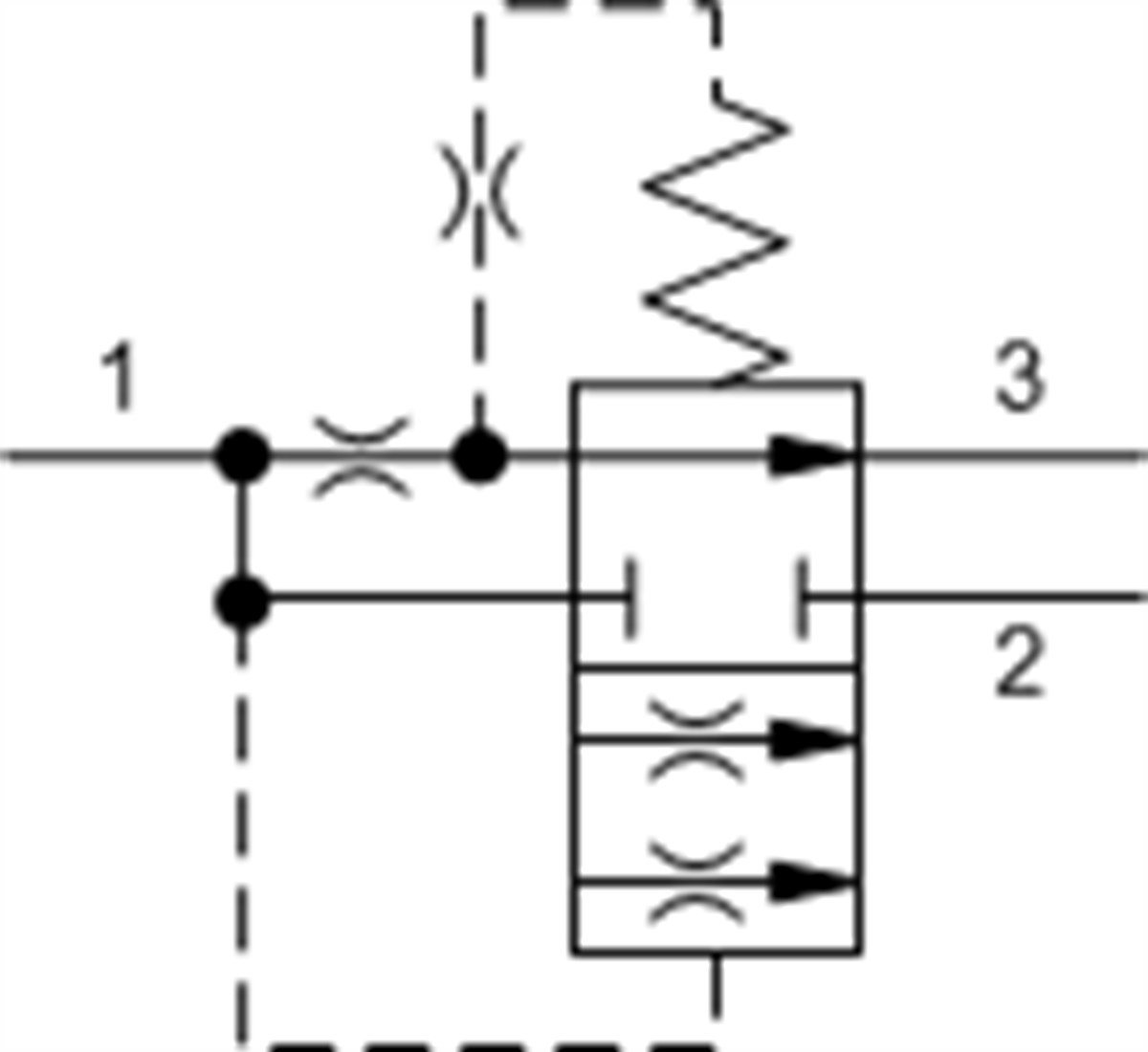

FRDAXAN Fixed-orifice, bypass/restrictive, priority, flow control valve

FRDAXAN Fixed-orifice, bypass/restrictive, priority, flow control valve

Price : $81.89
:
FRDA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-2A
Series 2
Capacity 12 gpm45 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Input Flow 30 gpm120 L/min.
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .40 lb0,20 kg
Seal kit - Cartridge Buna: 990202007
Seal kit - Cartridge EPDM: 990202014
Seal kit - Cartridge Polyurethane: 990002002
Seal kit - Cartridge Viton: 990202006


FRDA
Low Flow Rate
0-150 lpm
