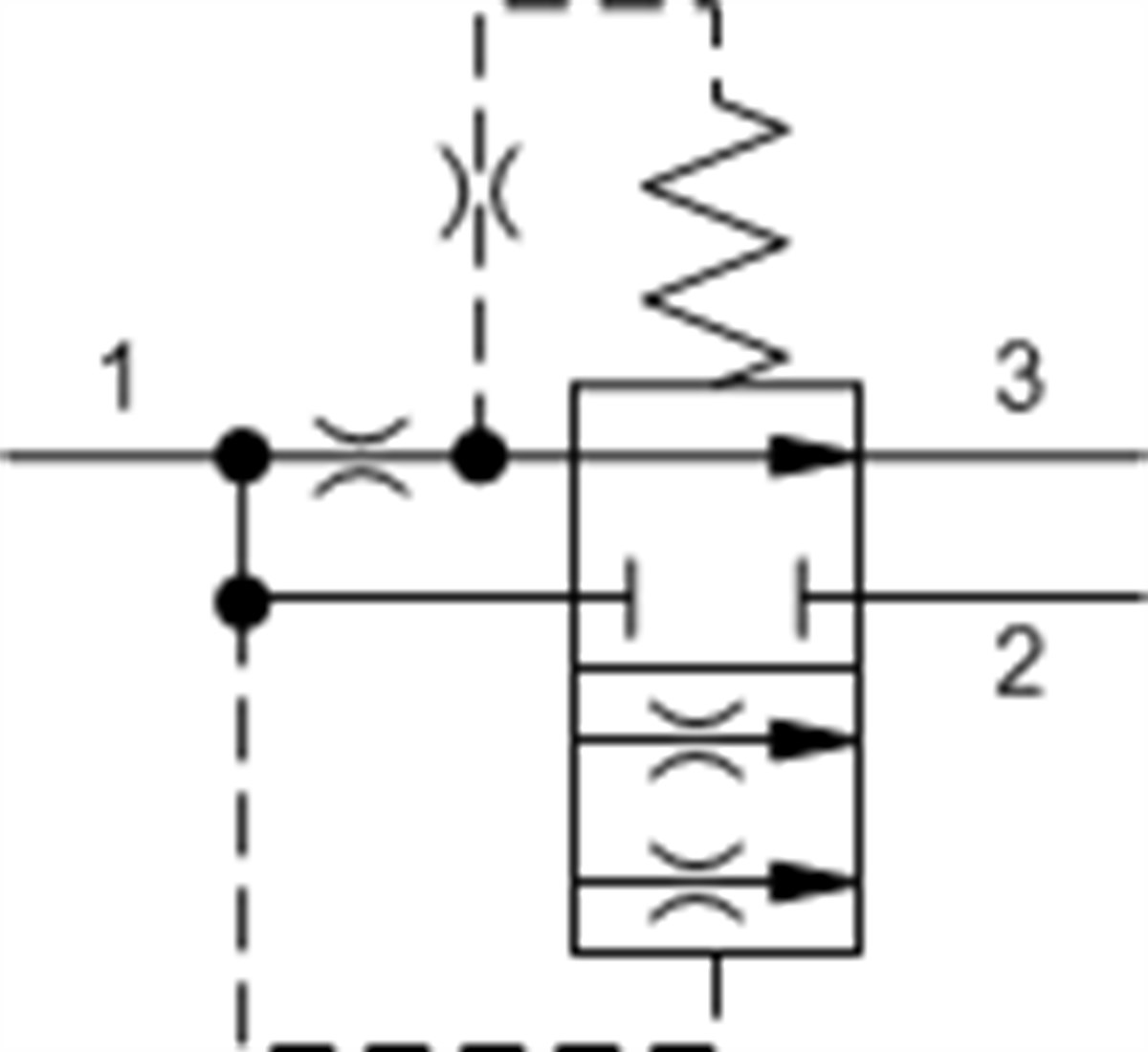

FRBAXAN Fixed-orifice, bypass/restrictive, priority, flow control valve

FRBAXAN Fixed-orifice, bypass/restrictive, priority, flow control valve

Price : $58.02
:
FRBA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-163A
Series 0
Capacity 3 gpm11 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Input Flow 7.5 gpm30 L/min.
Valve Hex Size 3/4 in.19,1 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .20 lb0,10 kg
Seal kit - Cartridge Buna: 990163007
Seal kit - Cartridge Polyurethane: 990163002
Seal kit - Cartridge Viton: 990163006


FRBA
Low Flow Rate
0-150 lpm
