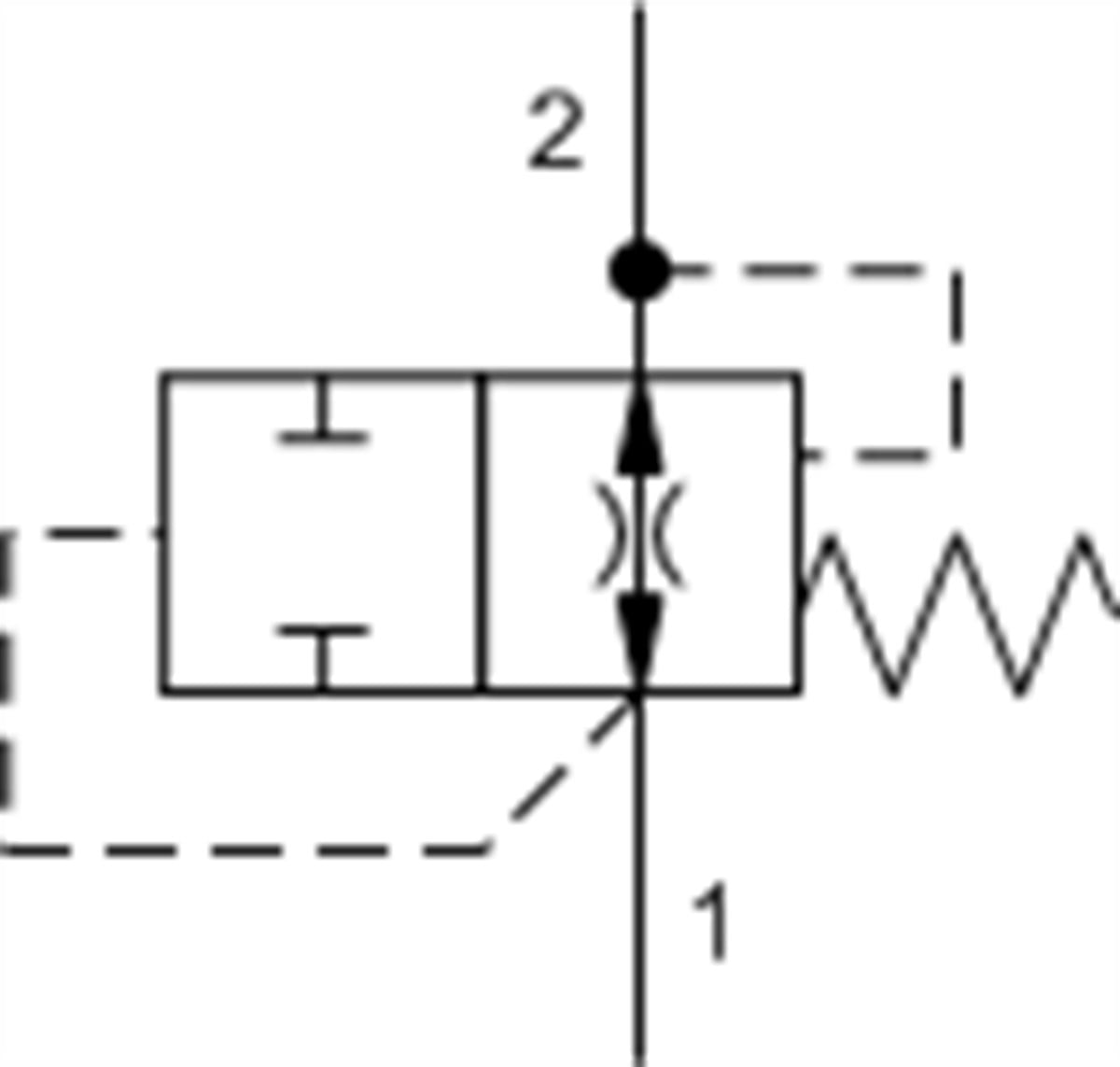

FQCAXAN Fixed-orifice, flow fuse valve

FQCAXAN Fixed-orifice, flow fuse valve

Price : $51.70
:
FQCA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-13A
Series 1
Capacity 6 gpm23 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 2 in³/min.@1000 psi30 cc/min.@70 bar
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .20 lb0,10 kg
Seal kit - Cartridge Buna: 990010007
Seal kit - Cartridge Polyurethane: 990010002
Seal kit - Cartridge Viton: 990010006


FQCA
Low Flow Rate
0-150 lpm
