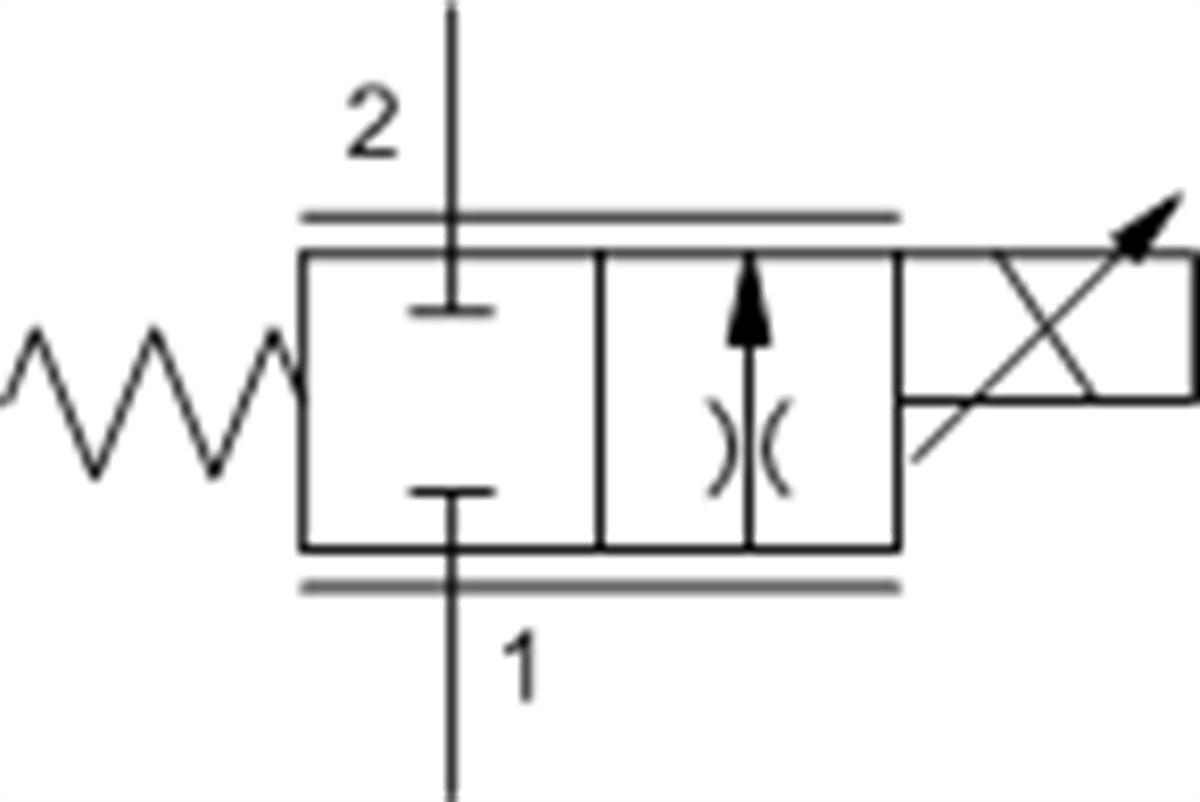

FPCCXCN Electro-proportional flow control valve - normally closed

FPCCXCN Electro-proportional flow control valve - normally closed

Price : $172.34
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FPCC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-13A
Series 1
Capacity 10 gpm40 L/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 6 in³/min.@3000 psi100 cc/min.@210 bar
Manual Override Force Requirement 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1
Manual Override Stroke .10 in.2,5 mm
Solenoid Tube Diameter .75 in.19 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight (with coil) 1.10 lb0,50 kg
Seal kit - Cartridge Buna: 990413007
Seal kit - Cartridge EPDM: 990010014
Seal kit - Cartridge Polyurethane: 990413002
Seal kit - Cartridge Viton: 990413006
Seal and nut kit - Coil Viton: 990770006
Back to Top


FPCC
Low Flow Rate
0-150 lpm
