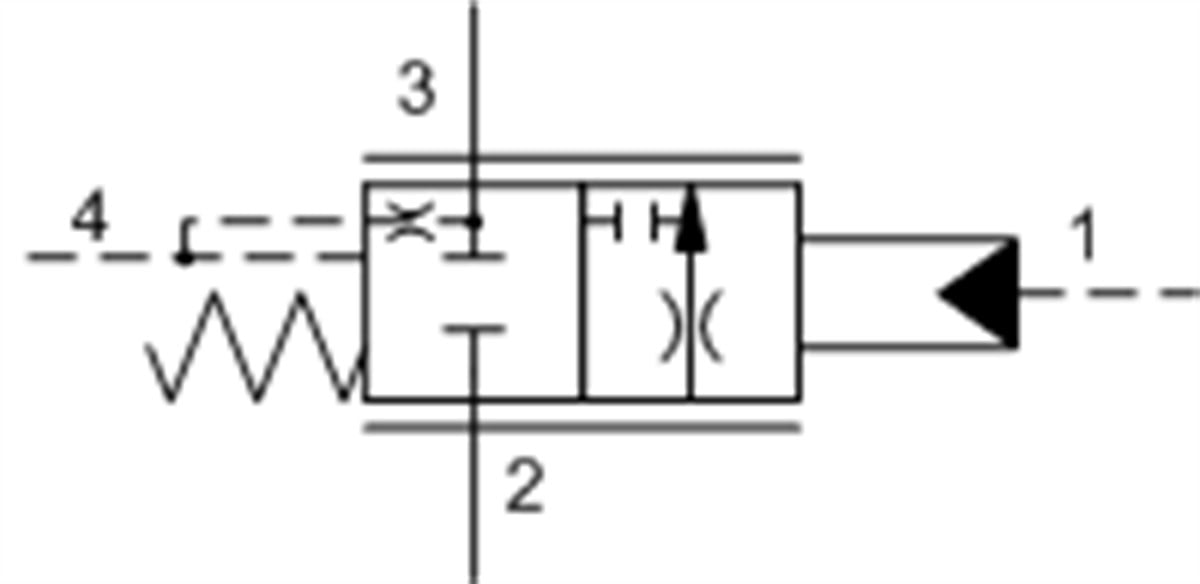

FKIBXCN 2-way, pilot-shifted, proportional throttle with bleed down, high capacity

FKIBXCN 2-way, pilot-shifted, proportional throttle with bleed down, high capacity

Price : $553.19
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FKIB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-24A
Series 4
Capacity 60 gpm240 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 6 in³/min.@1000 psi98 cc/min.@70 bar
Pilot Volume Displacement .20 in³3,3 cc
Minimum Pilot Pressure to Operate 100 psi7 bar
Bypass orifice .03 in.0,8 mm
Hysteresis ± 2 %± 2 %
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 3.30 lb1,50 kg
Seal kit - Cartridge Buna: 990024007
Seal kit - Cartridge EPDM: 990024014
Seal kit - Cartridge Polyurethane: 990024002
Seal kit - Cartridge Viton: 990024006
Back to Top


FKIB
Medium Flow Rate
150-300 lpm
