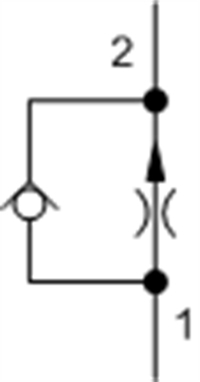

FCBBXAN Fixed-orifice pressure compensated flow control valve with reverse flow check

FCBBXAN Fixed-orifice pressure compensated flow control valve with reverse flow check

Price : $62.83
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FCBB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-162A
Series 0
Capacity 3 gpm11 L/min.
Maximum Operating Pressure 5000 psi350 bar
Valve Hex Size 3/4 in.19,1 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990162007
Seal kit - Cartridge Polyurethane: 990162002
Seal kit - Cartridge Viton: 990162006
Back to Top


FCBB
Low Flow Rate
0-150 lpm
