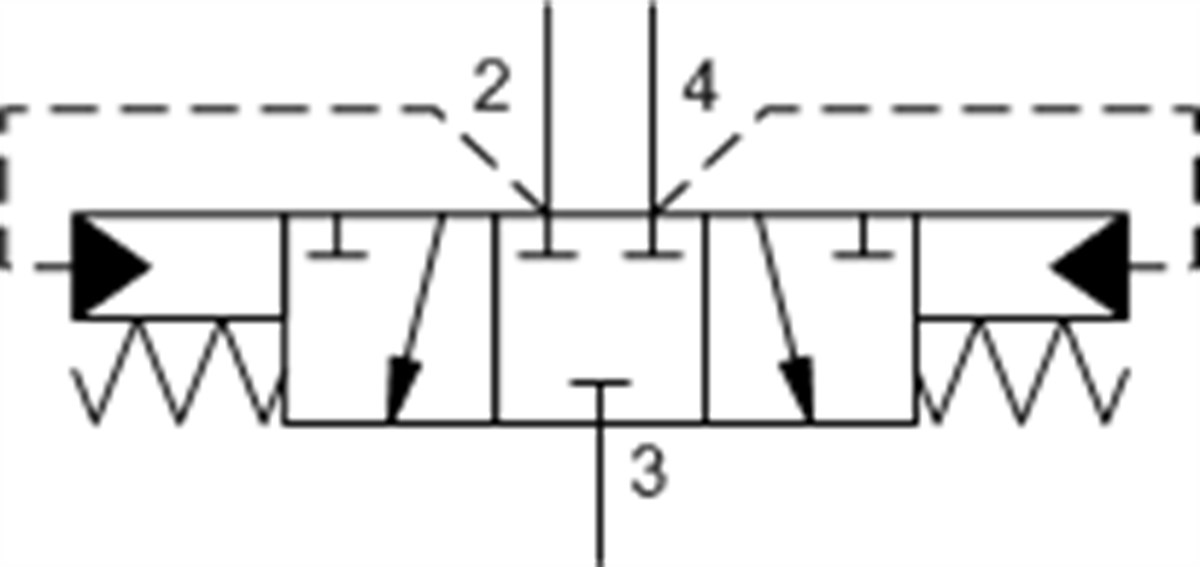

DSGHXHN Low side, 3-position, hot oil shuttle valve

DSGHXHN Low side, 3-position, hot oil shuttle valve

Price : $319.30
:
DSGH

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-33A
Series 3
Capacity 40 gpm160 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Flow 46 in³/min.0,75 L/min.
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Model Weight 1.40 lb0,65 kg
Seal kit - Cartridge Buna: 990033007
Seal kit - Cartridge Polyurethane: 990033002
Seal kit - Cartridge Viton: 990033006


DSGH
Medium Flow Rate
150-300 lpm
