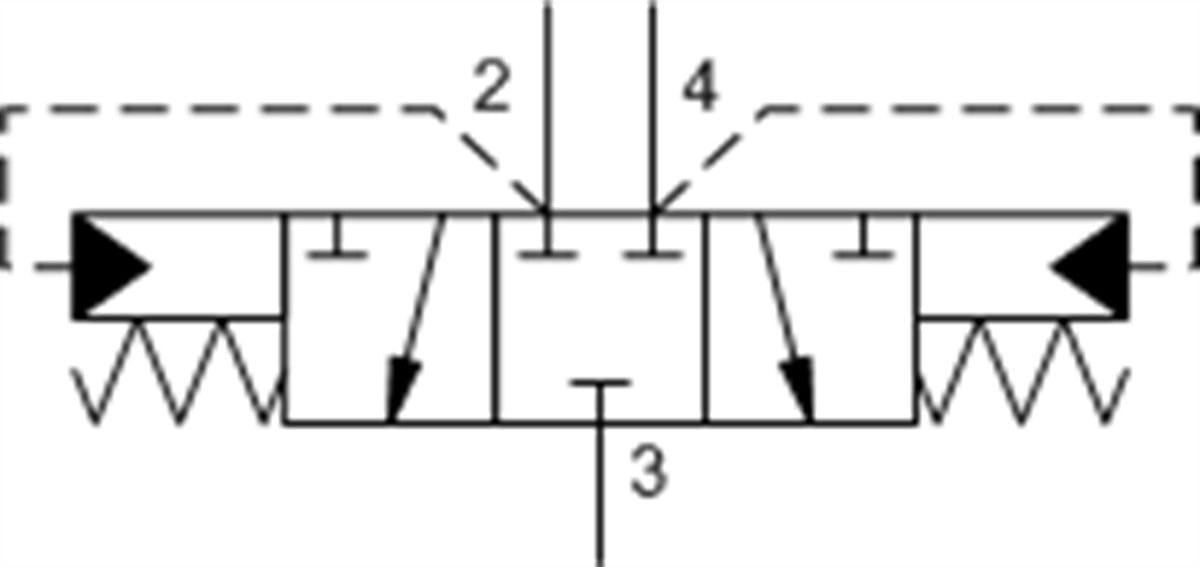

DSCHXHN Low side, 3-position, hot oil shuttle valve

DSCHXHN Low side, 3-position, hot oil shuttle valve

Price : $144.18
:
DSCH

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-31A
Series 1
Capacity 10 gpm40 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Flow 23 in³/min.0,38 L/min.
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .40 lb0,20 kg
Seal kit - Cartridge Buna: 990031007
Seal kit - Cartridge Polyurethane: 990031002
Seal kit - Cartridge Viton: 990031006


DSCH
Low Flow Rate
0-150 lpm
