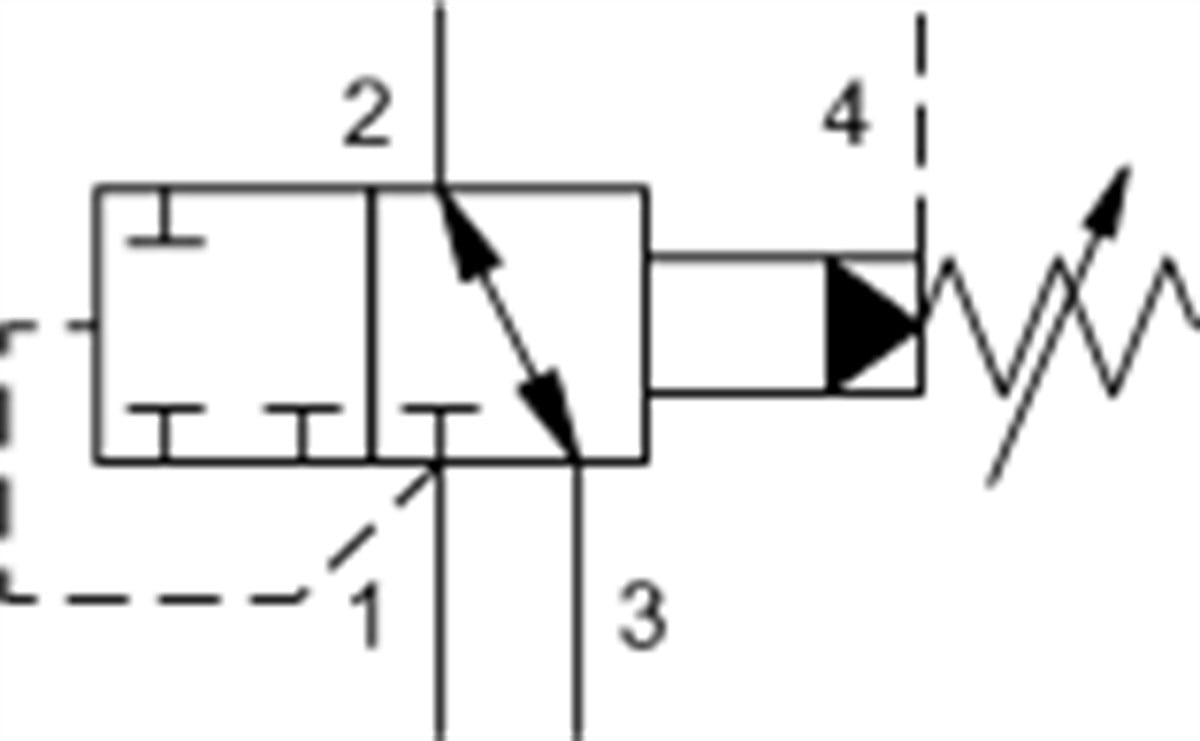

DPBMLAN 2-way, pilot-operated, directional valve with drain to port 4 - normally open

DPBMLAN 2-way, pilot-operated, directional valve with drain to port 4 - normally open

Price : $128.02
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
DPBM

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-21A
Series 1
Capacity 7 gpm28 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Control Pilot Flow 7 - 10 in³/min.0,11 - 0,16 L/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 1 in³/min.@1000 psi15 cc/min.@70 bar
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Buna: 990021007
Seal kit - Cartridge Polyurethane: 990021002
Seal kit - Cartridge Viton: 990021006
Back to Top


DPBM
Low Flow Rate
0-150 lpm
