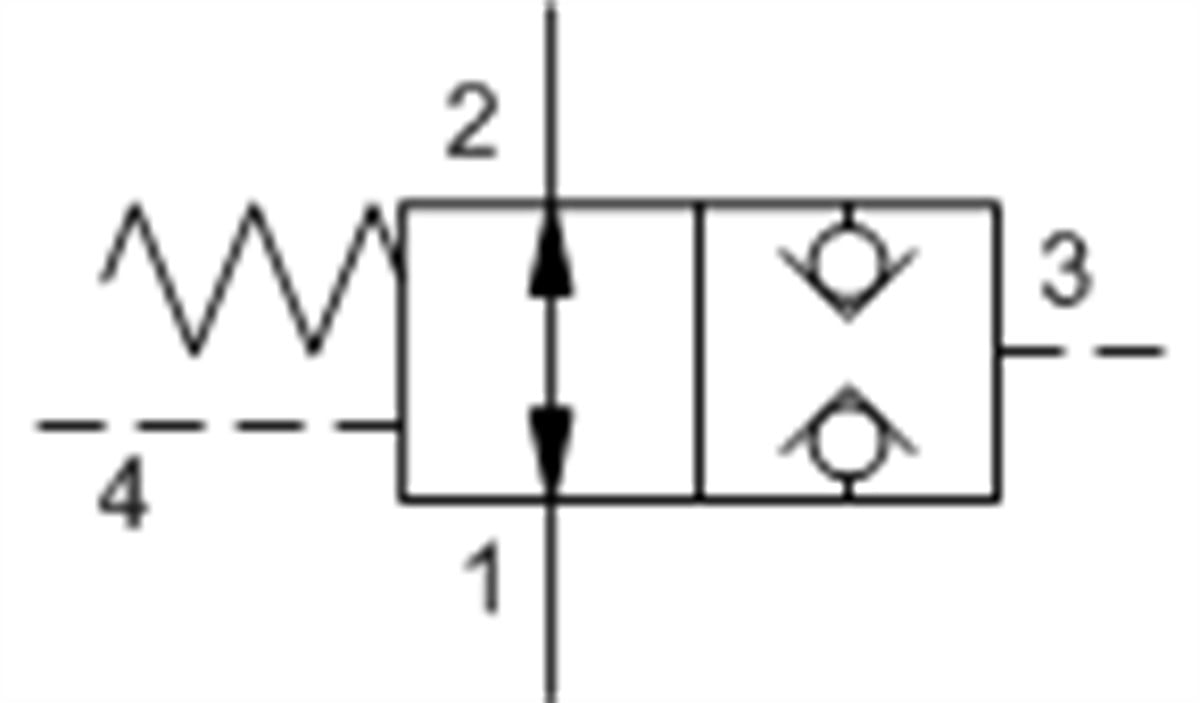

DOFSXHN Normally open, balanced poppet, logic element - pilot-to-close

DOFSXHN Normally open, balanced poppet, logic element - pilot-to-close

Price : $160.67
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
DOFS

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-22A
Series 2
Capacity 30 gpm120 L/min.
Maximum Operating Pressure 5000 psi350 bar
Minimum Pilot Pressure Required to Shift Valve 300 psi20 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Pilot Volume Displacement .02 in³0,33 cc
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Seal kit - Cartridge Buna: 990022007
Seal kit - Cartridge EPDM: 990022014
Seal kit - Cartridge Polyurethane: 990022002
Seal kit - Cartridge Viton: 990022006
Back to Top


DOFS
Low Flow Rate
0-150 lpm
