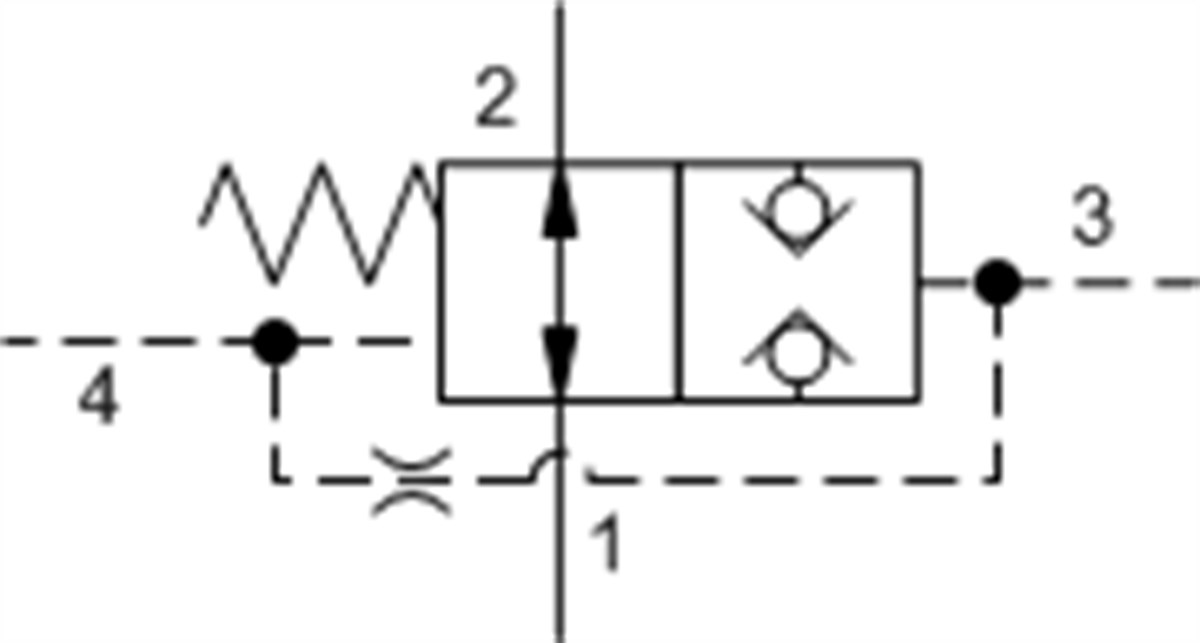

DODRXHN Normally open, balanced poppet, logic element - vent-to-close

DODRXHN Normally open, balanced poppet, logic element - vent-to-close

Price : $123.42
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
DODR

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-21A
Series 1
Capacity 15 gpm60 L/min.
Maximum Operating Pressure 5000 psi350 bar
Minimum Pilot Pressure Required to Shift Valve 400 psi28 bar
Control Pilot Flow See Performance DataSee Performance Data
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .35 lb0,15 kg
Seal kit - Cartridge Buna: 990021007
Seal kit - Cartridge Polyurethane: 990021002
Seal kit - Cartridge Viton: 990021006
Back to Top


DODR
Low Flow Rate
0-150 lpm
