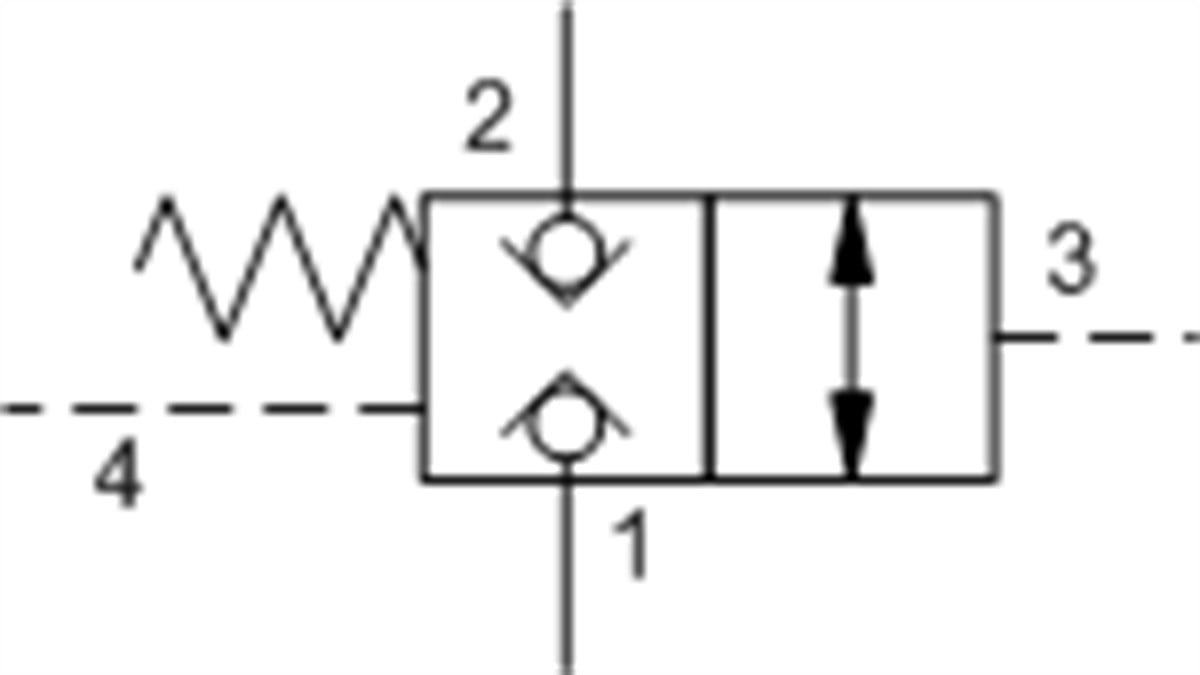

DKJSXHN Normally closed, balanced poppet, logic element - pilot-to-open

DKJSXHN Normally closed, balanced poppet, logic element - pilot-to-open

Price : $485.11
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
DKJS

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-24A
Series 4
Capacity 120 gpm480 L/min.
Maximum Operating Pressure 5000 psi350 bar
Minimum Pilot Pressure Required to Shift Valve 300 psi20 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Pilot Volume Displacement .17 in³2,8 cc
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Seal kit - Cartridge Buna: 990024007
Seal kit - Cartridge EPDM: 990024014
Seal kit - Cartridge Polyurethane: 990024002
Seal kit - Cartridge Viton: 990024006
Back to Top


DKJS
High Flow Rate
300-1000 lpm
