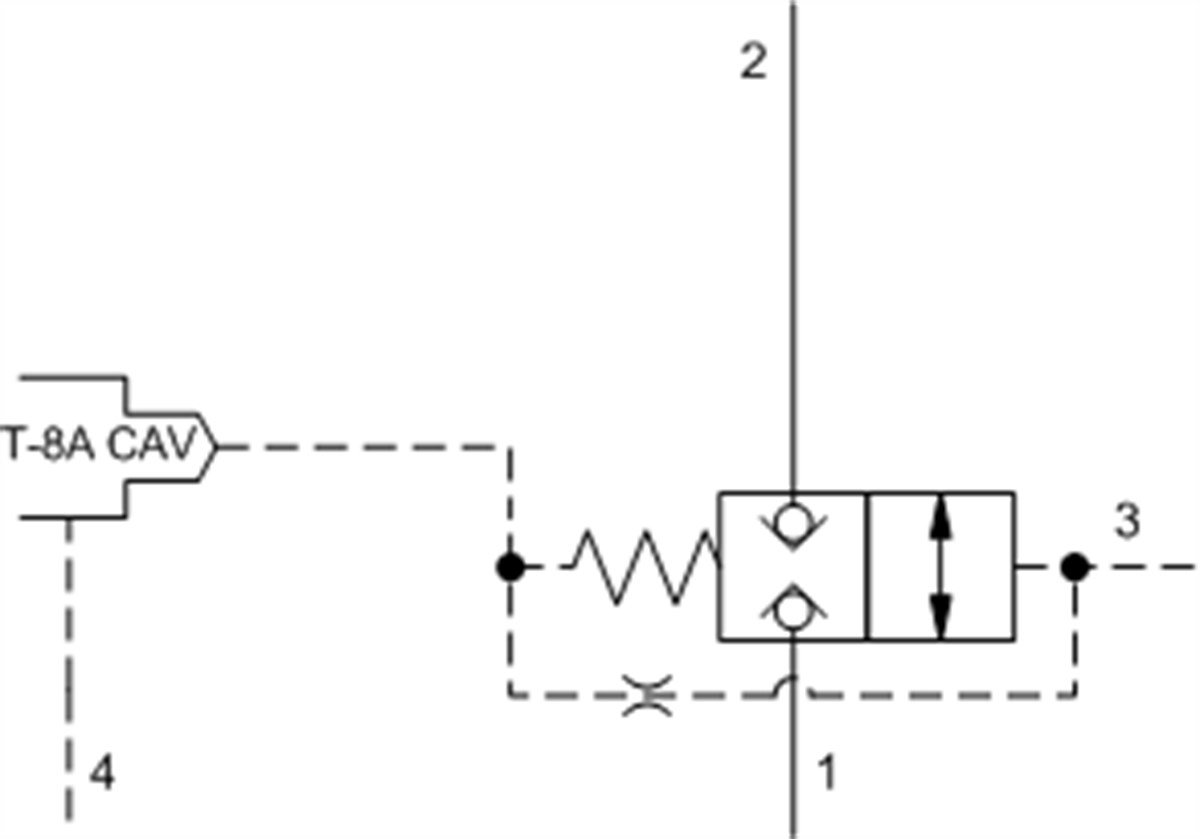

DKJR8HN Normally closed, balanced poppet, logic element with integral T-8A control cavity - vent-to-open

DKJR8HN Normally closed, balanced poppet, logic element with integral T-8A control cavity - vent-to-open

Price : $498.81
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
DKJR8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-24A
Series 4
Capacity 120 gpm480 L/min.
Maximum Operating Pressure 5000 psi350 bar
Minimum Pilot Pressure Required to Shift Valve 300 psi20 bar
Control Pilot Flow See Performance DataSee Performance Data
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Pilot Control Cavity T-8AT-8A
Pilot Control Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Pilot Control Valve Hex Size 7/8 in.22,2 mm
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Model Weight 2.50 lb1,15 kg
Seal kit - Cartridge Buna: 990024007
Seal kit - Cartridge Polyurethane: 990024002
Seal kit - Cartridge Viton: 990024006
Back to Top


DKJR8
High Flow Rate
300-1000 lpm
