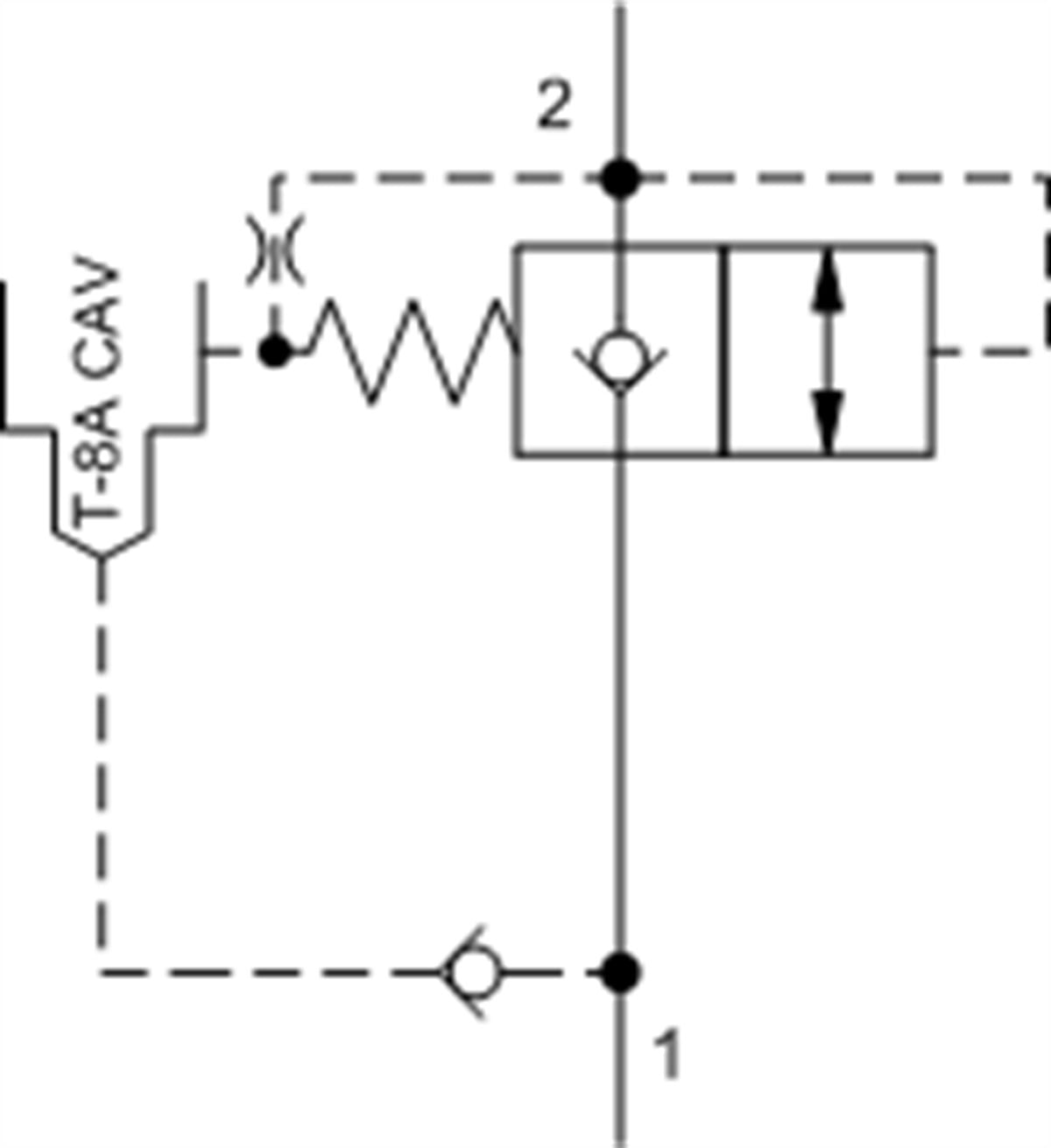

DFDB8DN 2-way, poppet directional valve with integral T-8A control cavity - control 2-1

DFDB8DN 2-way, poppet directional valve with integral T-8A control cavity - control 2-1

Price : $117.64
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
DFDB8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-5A
Series 2
Capacity 30 gpm120 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Pilot Control Cavity T-8AT-8A
Pilot Control Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Response Time - Typical see pilot control mssee pilot control ms
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Model Weight .70 lb0,30 kg
Seal kit - Cartridge Buna: 990203007
Seal kit - Cartridge Viton: 990203006
Back to Top


DFDB8
Low Flow Rate
0-150 lpm
