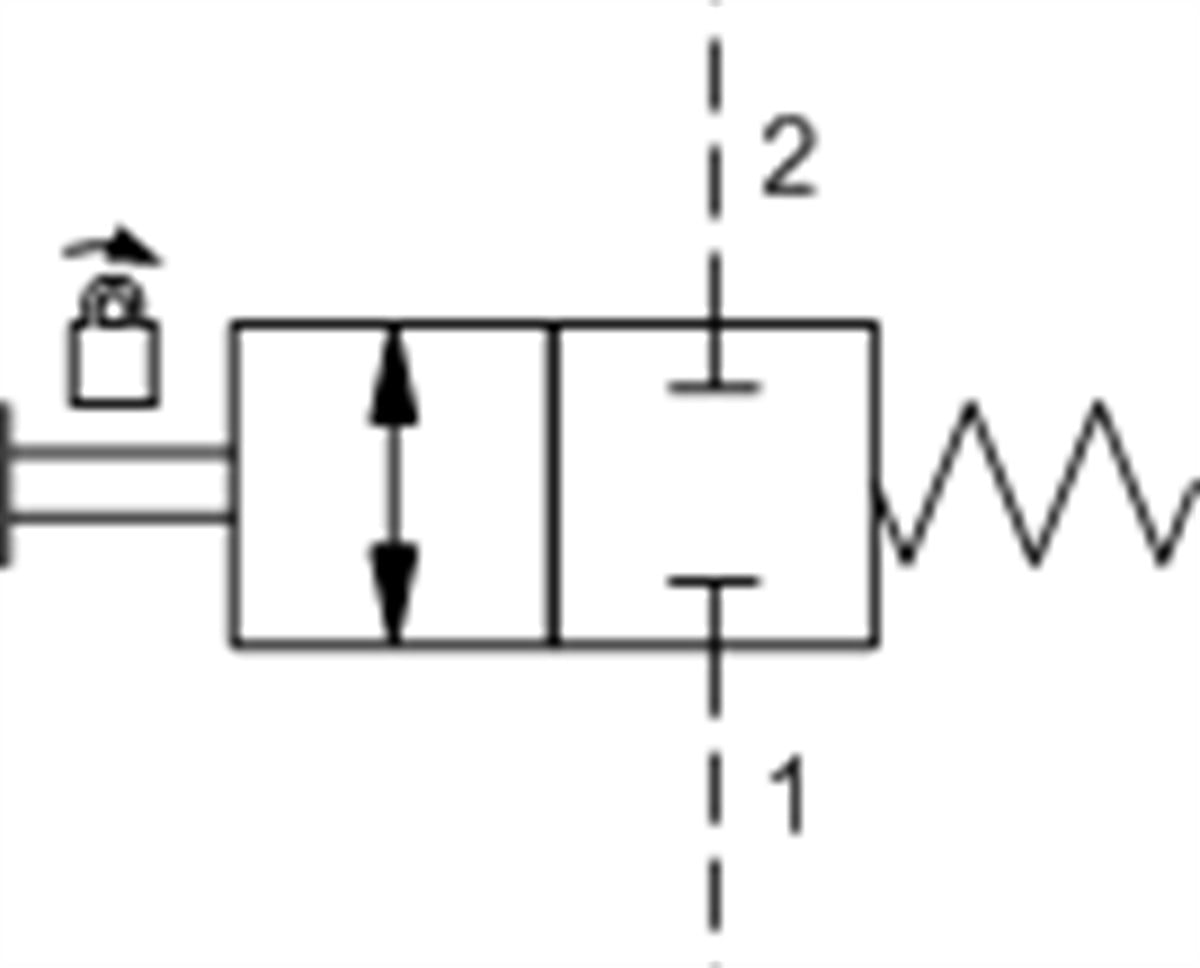

DAAMLCN 2-way, manually operated, spool directional valve - pilot capacity

DAAMLCN 2-way, manually operated, spool directional valve - pilot capacity

Price : $156.81
:
DAAM

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-8A
Series P
Capacity .25 gpm1 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Operating Torque 10 lbf in.1,2 Nm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Model Weight .40 lb0,20 kg
Seal kit - Cartridge Buna: 990108007
Seal kit - Cartridge Viton: 990108006


DAAM
Low Flow Rate
0-150 lpm
