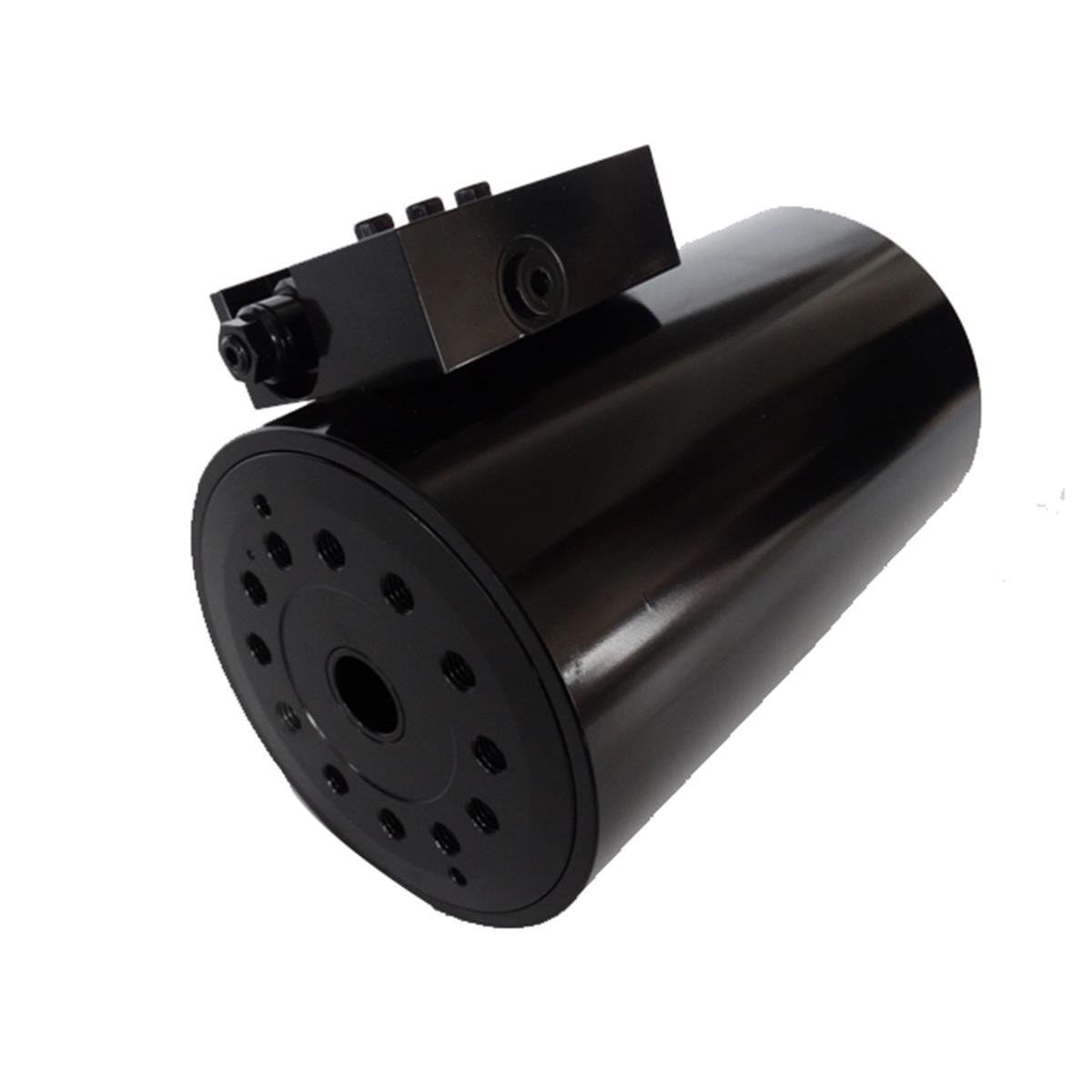

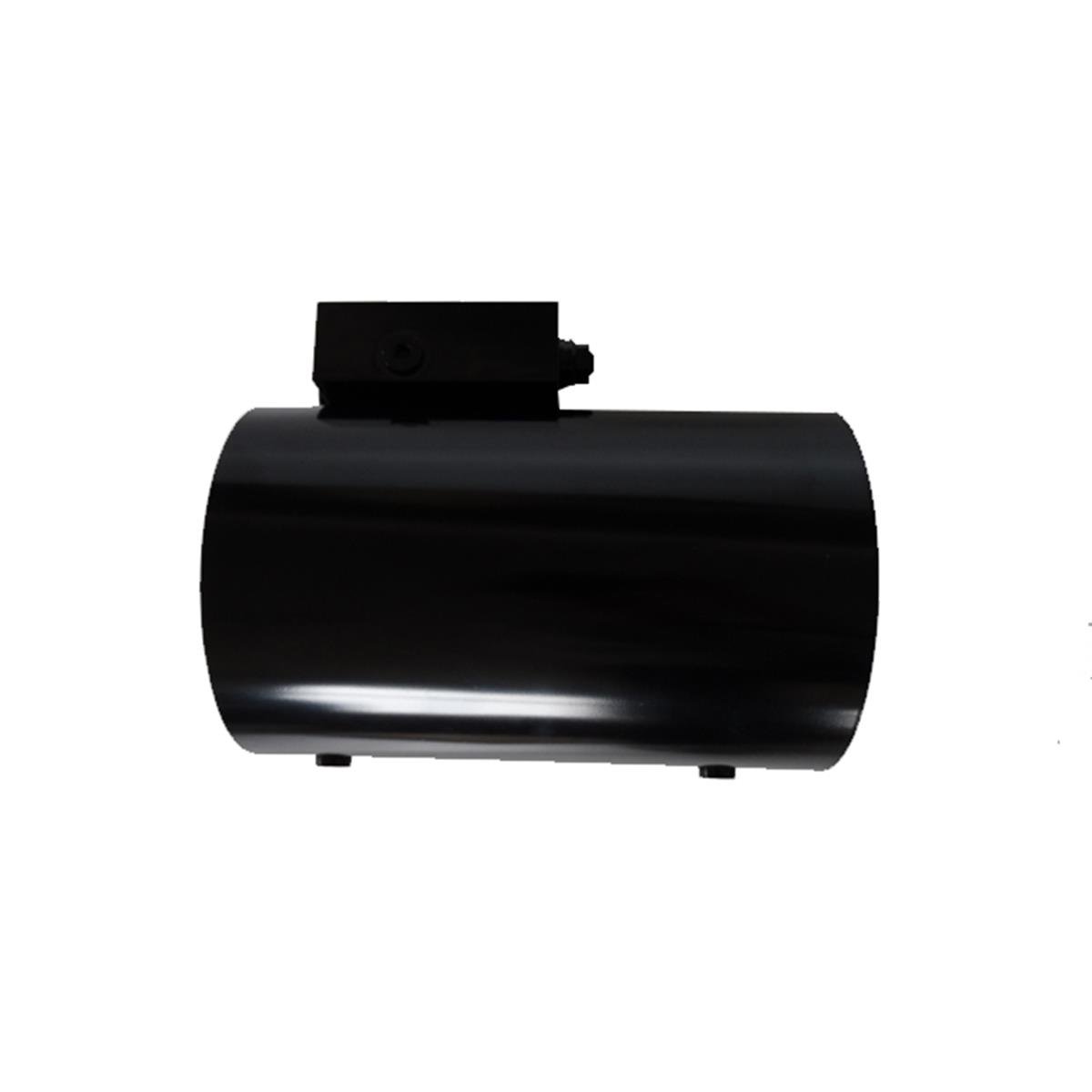

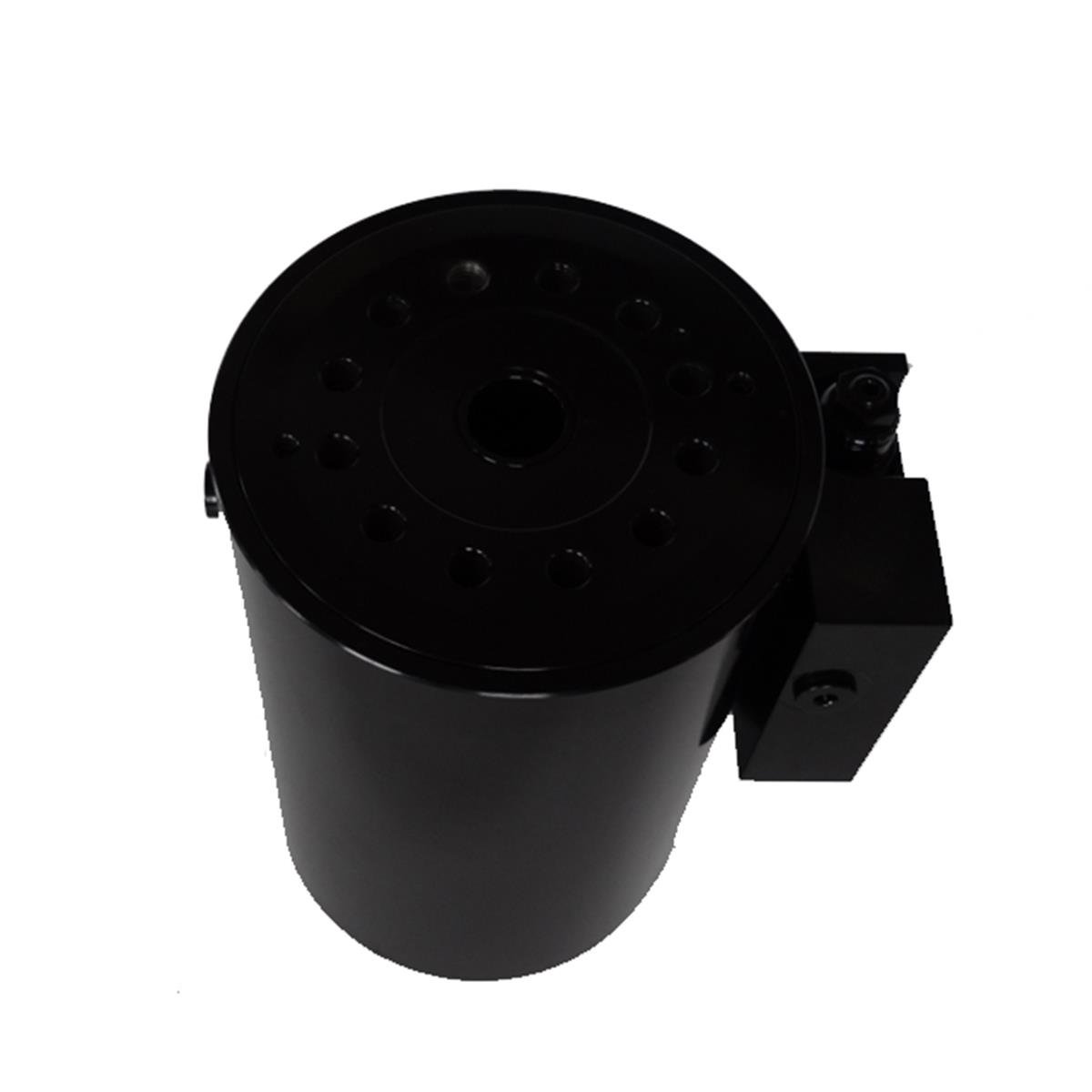

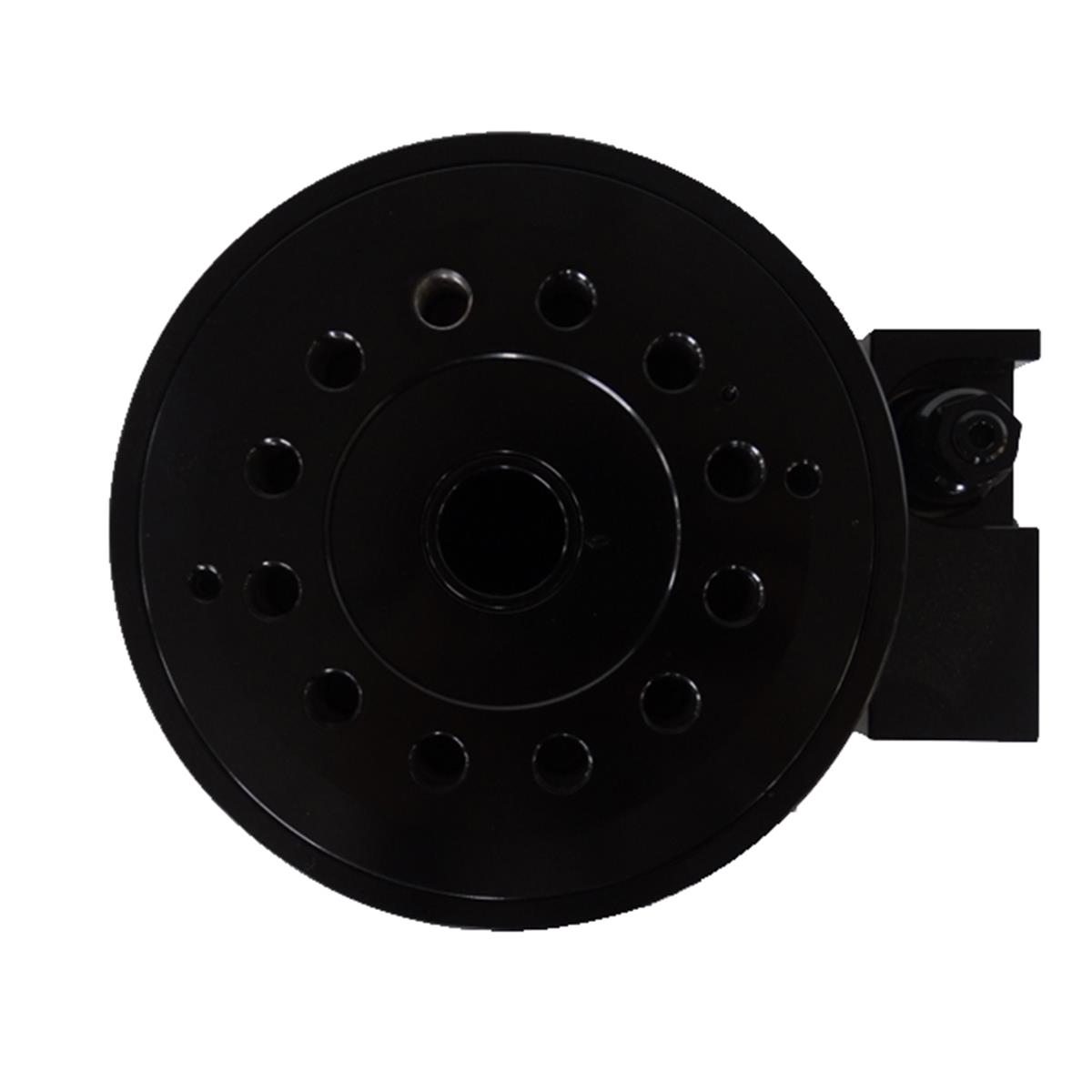

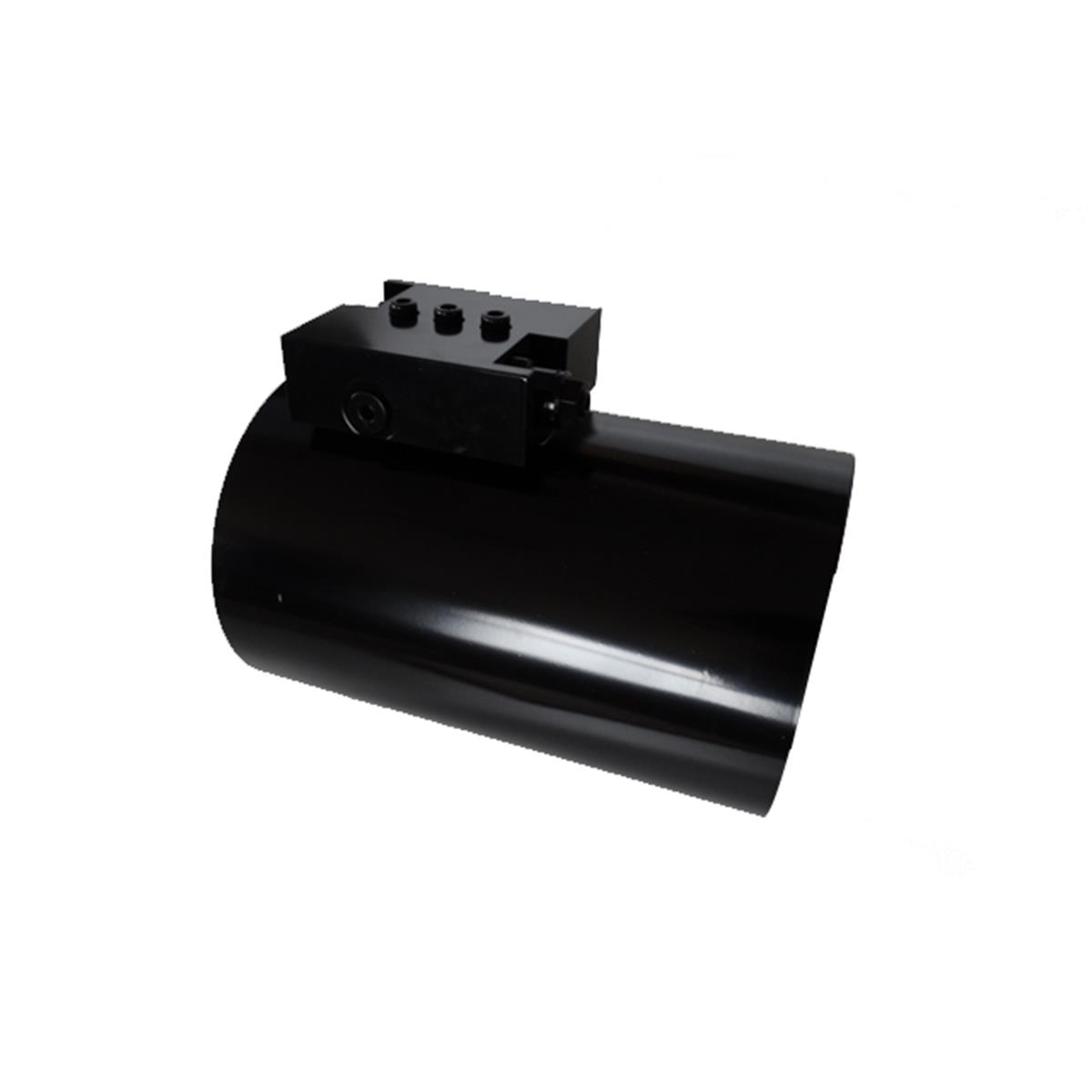

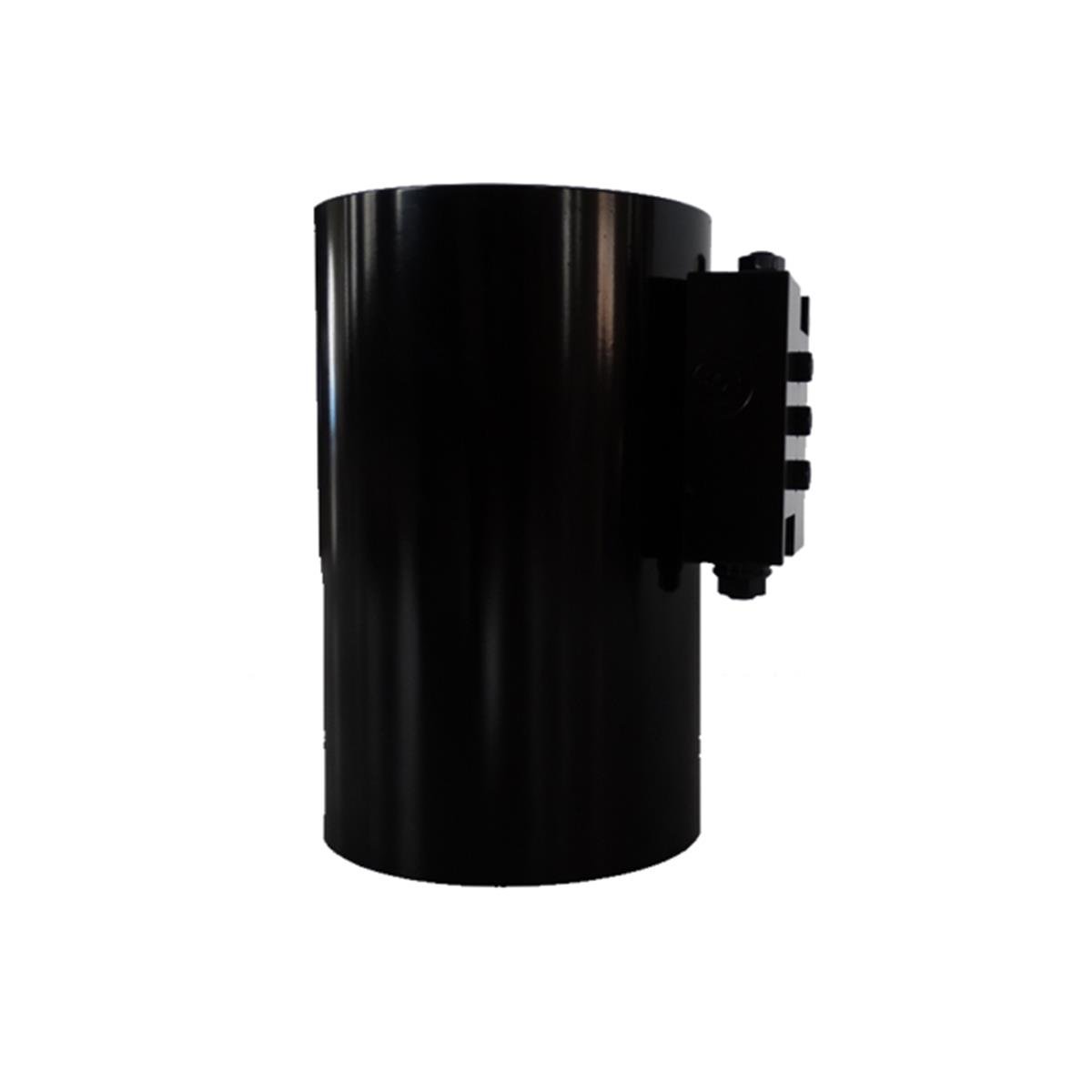

CY4 Series Rotary Actuator

CY4 Series Rotary Actuator

Price : $0.00

Seri 4 180-2700Nm@210bar 64-914 cc @ 180 Degrees 243-1829 cc @ 360 Degrees Please Enquire

:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment

CY1

MODELS 2 3 6 10 16 27
Drive Torque NM@21MPA 180 320 600 1000 1600 2700
Holding Torque NM@21MPA 630 1200 1900 3800 5700 9400
Moment Capacity Cantilever Mount NM 560 1000 2200 5600 9000 11200
Radial Capacity KG 900 1350 1850 3600 4980 6700
Axial Capacity KG 900 1350 1850 3600 4980 6700
Displacement 180°CC 63.9 121 192 365 552 914
Displacement 360°CC - 243 384 733 1105 1829
Approximate Weight 180°KG 6.4 10 14.2 26 43.3 57
Approximate Weight 360°KG - 12.8 19.2 35 54.5 83
D1 Shaft mounting surface diameter MM 77.2 89 102 127 148 185
D2 Housing diameter MM 100 119 135 170 198 226
F1 Threaded mounting holes,shaft flange MM M8×1.25 M8×1.25 M10×1.5 M12×1.75 M12×1.75 M16×2
F2 Quantity of mounting holes,shaft flange 8 8 12 12 12 12
F3 Bolt circle diameter,shaft flange MM 54 73 80 102 127 140
F4 Threaded mounting holes,housing flange MM M8×1.25 M8×1.25 M10×1.5 M12×1.75 M12×1.75 M12×1.75
F5 Quantity of mounting holes,housing flange 8 8 12 12 12 12
F6 Bolt circle diameter,housing flange MM 86 103 117 151 175 203
F7 Shaft through-hole diameter MM 14.3 17 21.4 35.7 45.7 66.7
H1 Centerline to valve top MM 80 90 98 115 129 143
L1 Overall length 180°MM 140 143 156 184 224 241
L1 Overall length 360°MM - 189 212 258 311 346
L2 Overall length,non-rotating 180°MM 138 142 154 182 221 239
L2 Overall length,non-rotating 360°MM - 188 211 256 308 344
L3 Shaft flange to counterbalance valve 180°MM 25.4 26.9 27.7 27.9 38.6 43.9
L3 Shaft flange to counterbalance valve 360°MM - 22.6 24.6 42.7 60.2 70.4

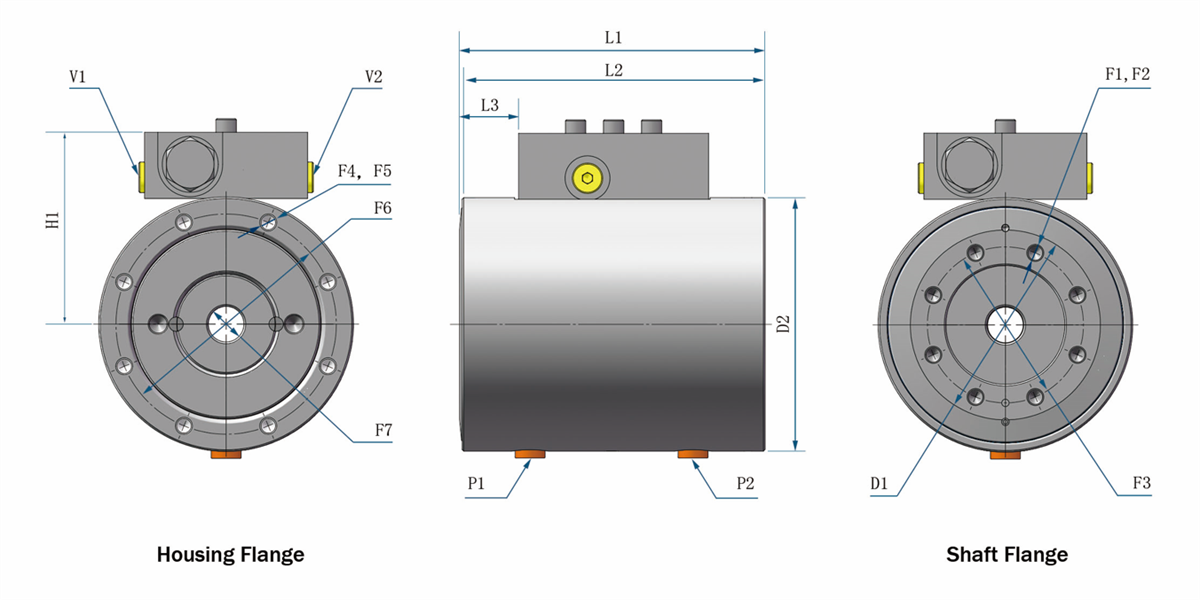

P1 P2 Ports,housing ISO-1179-1/BSPP"G"Series of ports.Sizes vary from 1/8 to 1/4.See drawings for details
V1 V2 Ports,valve ISO-11926/SAE Series of ports.Sizes are 7/16.See drawings for details
