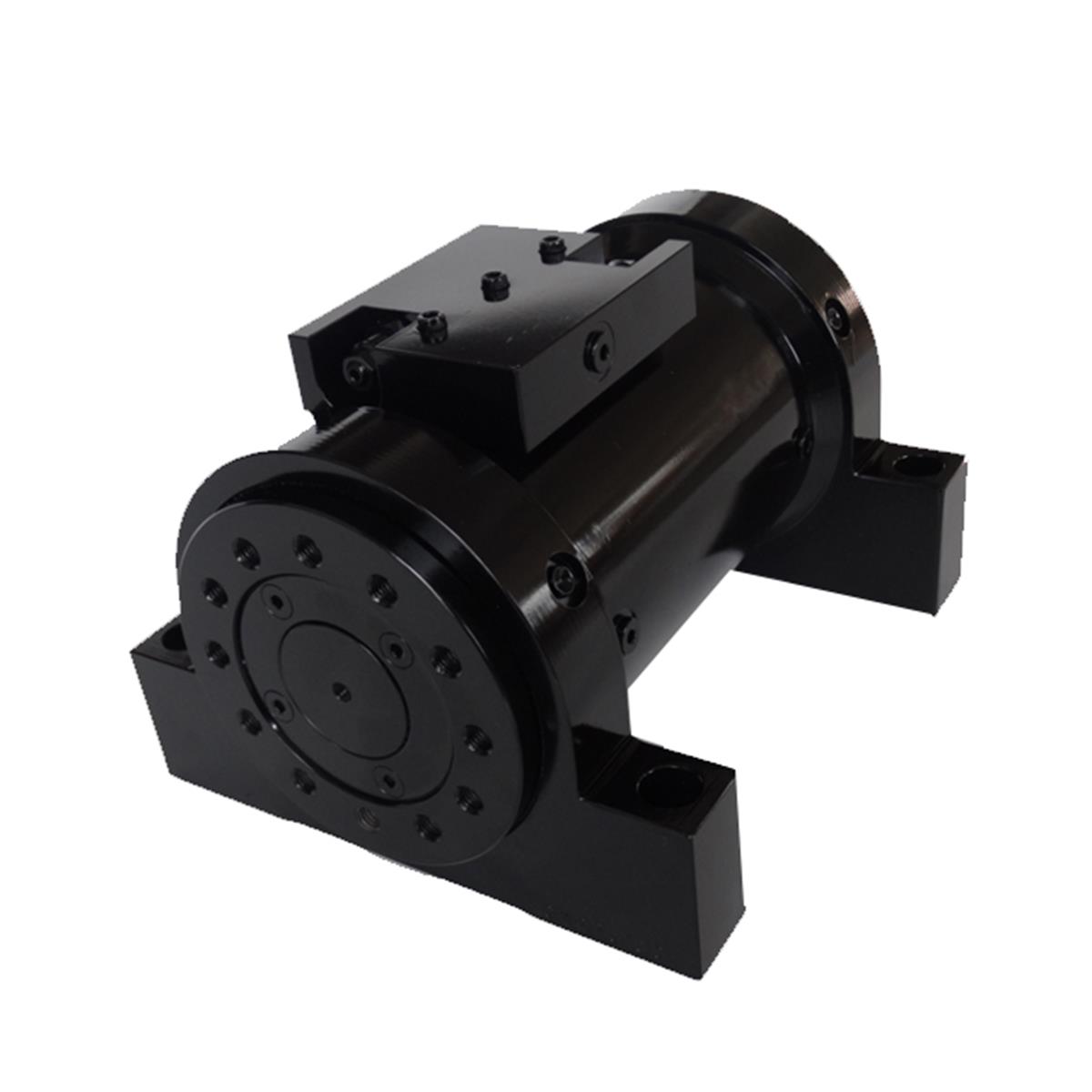

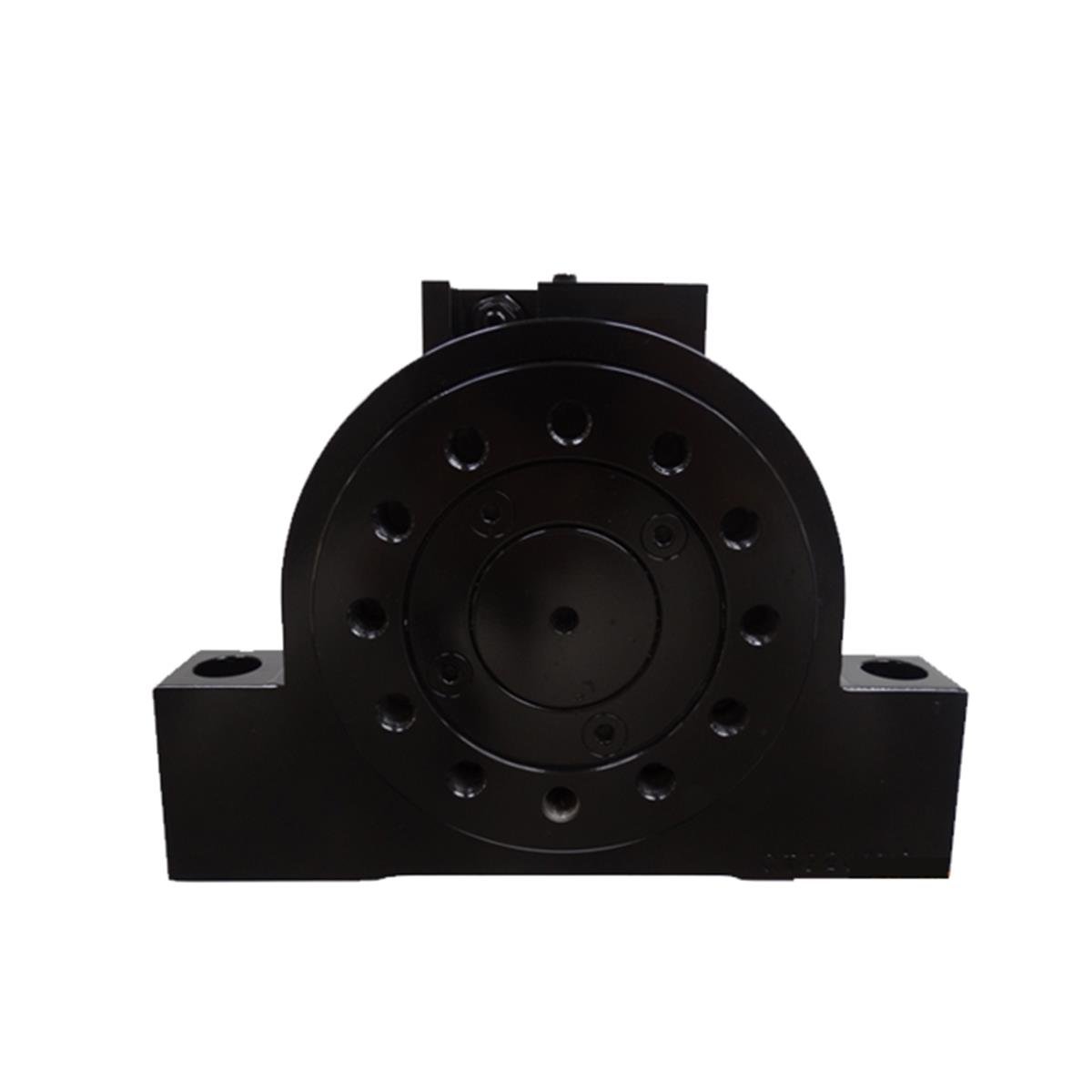

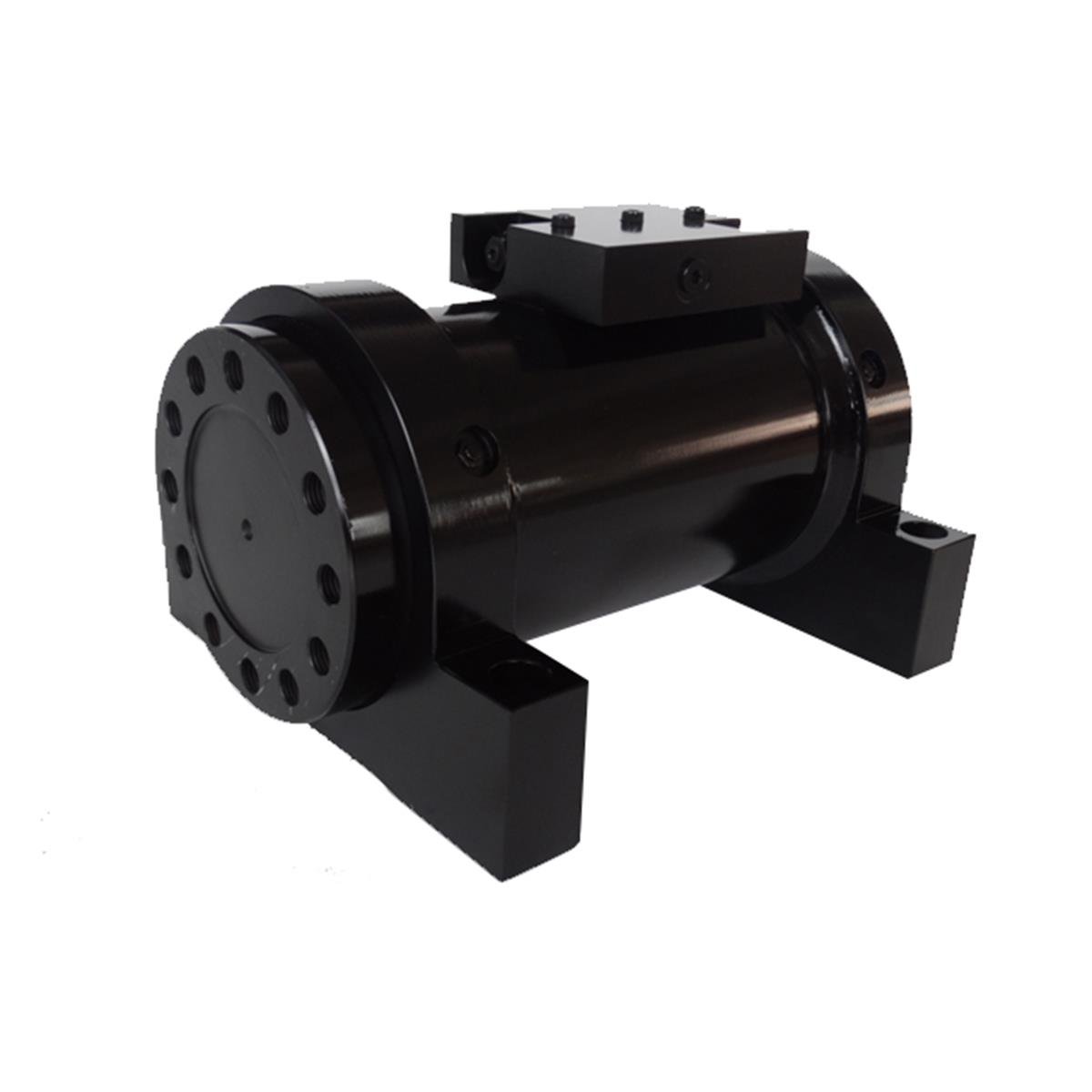

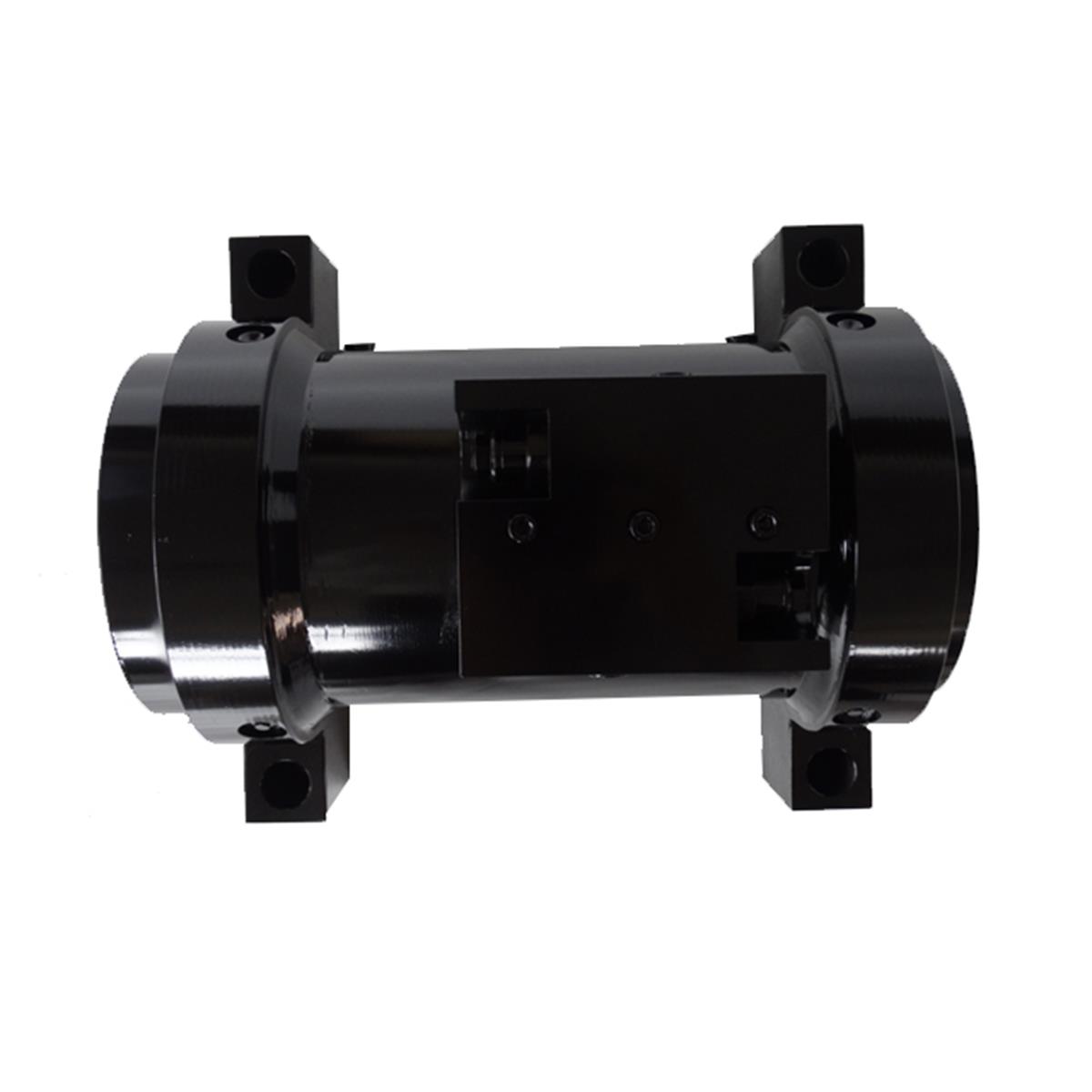

CY3 Series Foot Mount

CY3 Series Foot Mount

Price : $0.00

Seri 3 1900 - 24000Nm@210bar 492-6000 cc @ 180 Degrees 980-12000 cc @ 360 Degrees

Please Enquire

:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment

CY1

MODELS 19 28 47 73 105 140 180 240
Drive Torque NM@21MPA 1900 2800 4700 7300 10500 14000 18000 24000
Holding Torque NM@21MPA 4900 6800 12000 18000 26000 35000 46000 59000
Moment Capacity Cantilever Mount NM 5200 7100 11900 18400 29500 38800 55900 72900
Moment Capacity Straddle Mount 180° NM 13400 16900 30800 47800 75100 98900 130500 170000
Moment Capacity Straddle Mount 360° NM 19200 24600 45400 71200 111500 146000 197700 256500
Radial Capacity KG 1800 2300 3600 5000 6800 8200 10000 11800
Axial Capacity KG 1400 1800 2700 3600 4500 5900 6800 8200
Displacement 180°CC 492 688 1180 1870 2680 3540 4650 6000
Displacement 360°CC 980 1390 2360 3740 5360 7080 9320 12000
Approximate Weight 180°KG 34.5 50 72.5 110 160 220 280 360
Approximate Weight 360°KG 45.5 63.4 100 140 200 290 370 455

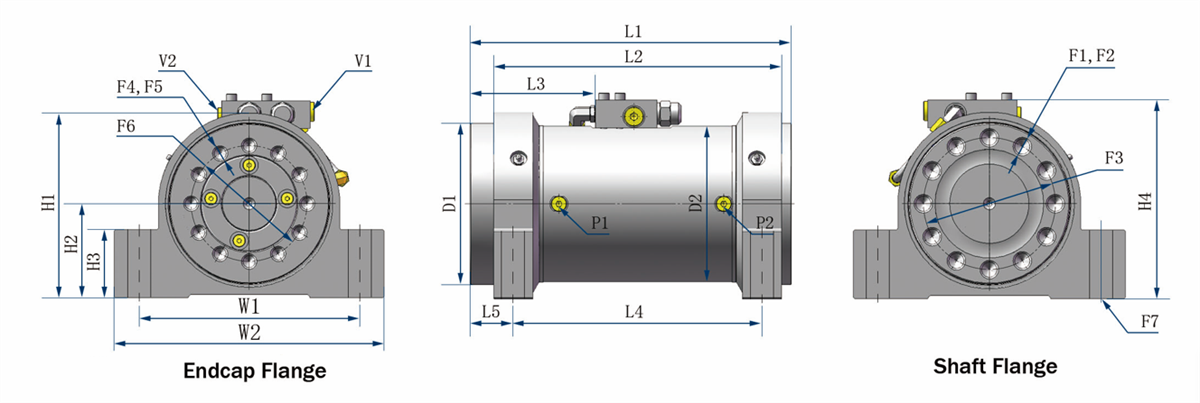

D1 Overall flange diameter MM 139 155 183 209 234 263 288 310
D2 Housing Diameter MM 140 152 178 203 229 254 279 305
F1 Threaded mounting holes,shaft flange MM M12×1.75 M16×2 M20×2.5 M22×2.5 M24×3 M27×3 M27×3 M30×3.5
F2 Quantity of mounting holes 12 12 12 12 12 12 12 12
F3 Bolt circle diameter,shaft flange MM 115 125 150 170 195 215 240 255
F4 Threaded mounting holes,endcap flange MM M10×1.5 M12×1.75 M16×2 M20×2.5 M22×2.5 M24×3 M27×3 M27×3
F5 Quantity of mounting holes 12 12 12 12 12 12 12 12
F6 Bolt circle diameter,endcap flange MM 108 120 133 150 170 190 210 230
F7 Foot hole diameter MM M16 M20 M22 M24 M27 M30 M36 M36
H1 Overall height(excluding valve) MM 156 186 212 240 276 305 327 362
H2 Height to centerline MM 80 94.9 108 122 140 154 165 184
H3 Foot height MM 48 70 78 88 105 110 120 135
H4 Overall height(with valve) MM 179 201 226 271 283 310 334 366
L1 Overall length 180°MM 298 323 365 413 475 524 551 600
L1 Overall length 360°MM 427 470 538 615 705 776 836 906
L2 Overall length,non-rotating 180°MM 261 286 323 363 431 463 493 534
L2 Overall length,non-rotating 360°MM 392 433 496 565 661 715 775 843
L3 Shaft flange to counterbalance valve 180°MM 75.2 134 143 130 152 185 196 221
L3 Shaft flange to counterbalance valve 360°MM 149 157 197 232 267 308 338 374
L4 Mounting length 180°MM 229 248 281 314 374 400 426 460
L4 Mounting length 360°MM 358 395 454 516 604 652 708 766
L5 Shaft flange to mounting hole MM 38.1 43.9 50 56.9 59.9 74.2 75.9 80
W1 Mounting width MM 190 230 260 300 340 380 410 450
W2 Overall width MM 222 268 310 350 400 447 484 530
P1 P2 Ports,housing ISO-1179-1/BSPP"G"Series of ports.Sizes vary from 1/8 to 1/2.See drawings for details
V1 V2 Ports,valve ISO-11926/SAE Series of ports.Sizes are 3/8.See drawings for details
