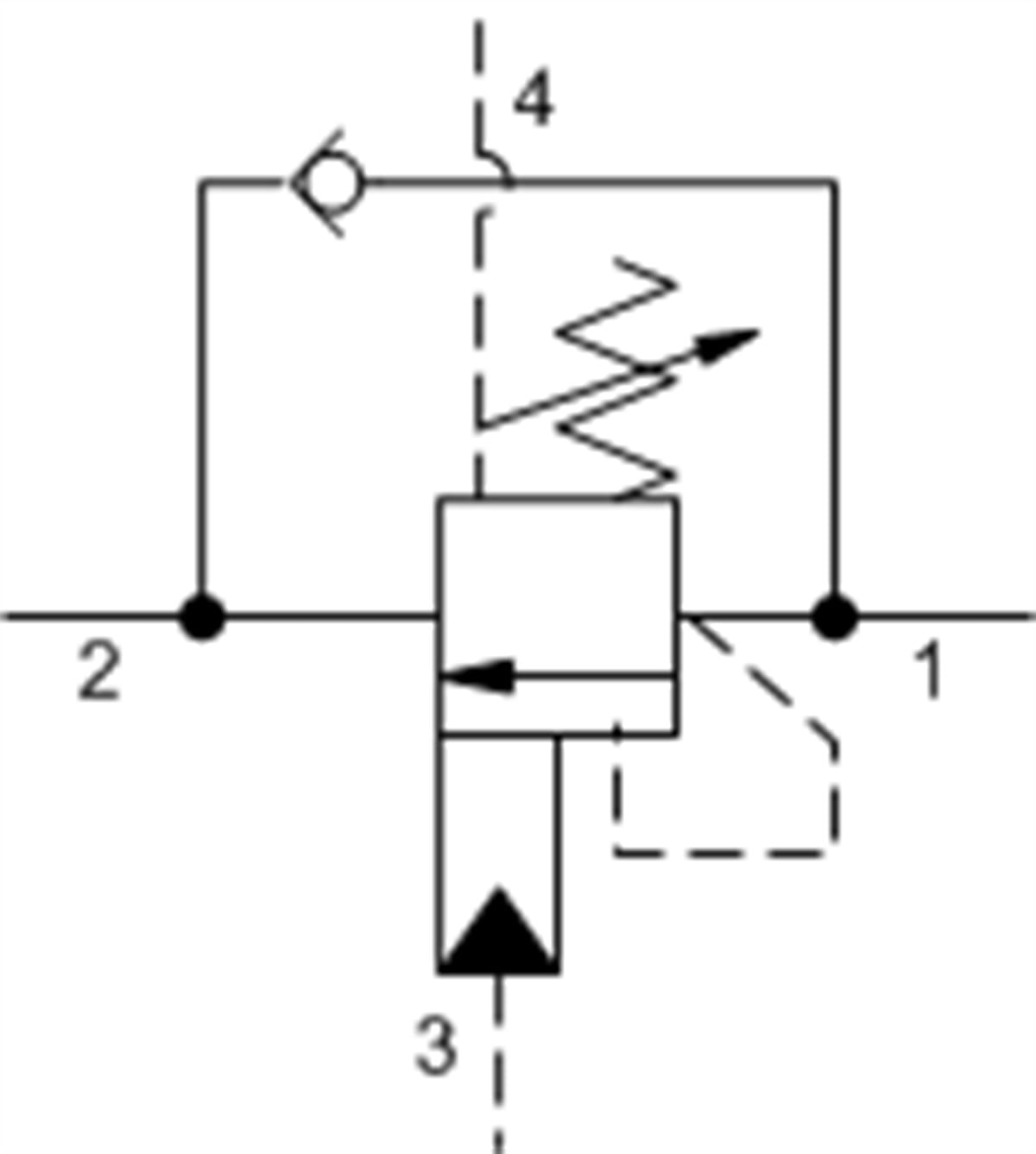

CWIGLGN 5:1 pilot ratio, vented counterbalance valve

CWIGLGN 5:1 pilot ratio, vented counterbalance valve

Price : $528.14
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
CWIG

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-24A
Series 4
Capacity 120 gpm480 L/min.
Pilot Ratio 5:15:1
Maximum Recommended Load Pressure at Maximum Setting 4615 psi320 bar
Maximum Setting 6000 psi420 bar
Factory Pressure Settings Established at 2 in³/min.30 cc/min.
Maximum Valve Leakage at Reseat 5 drops/min.0,3 cc/min.
Check Cracking Pressure 20 psi1,5 bar
Adjustment - No. of CCW Turns from Min. to Max. Setting 55
Operating Characteristic StandardStandard
Reseat >85% of setting>85% of setting
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 3.50 lb1,60 kg
Seal kit - Cartridge Buna: 990024007
Seal kit - Cartridge Polyurethane: 990024002
Seal kit - Cartridge Viton: 990024006
Back to Top


CWIG
High Flow Rate
300-1000 lpm
