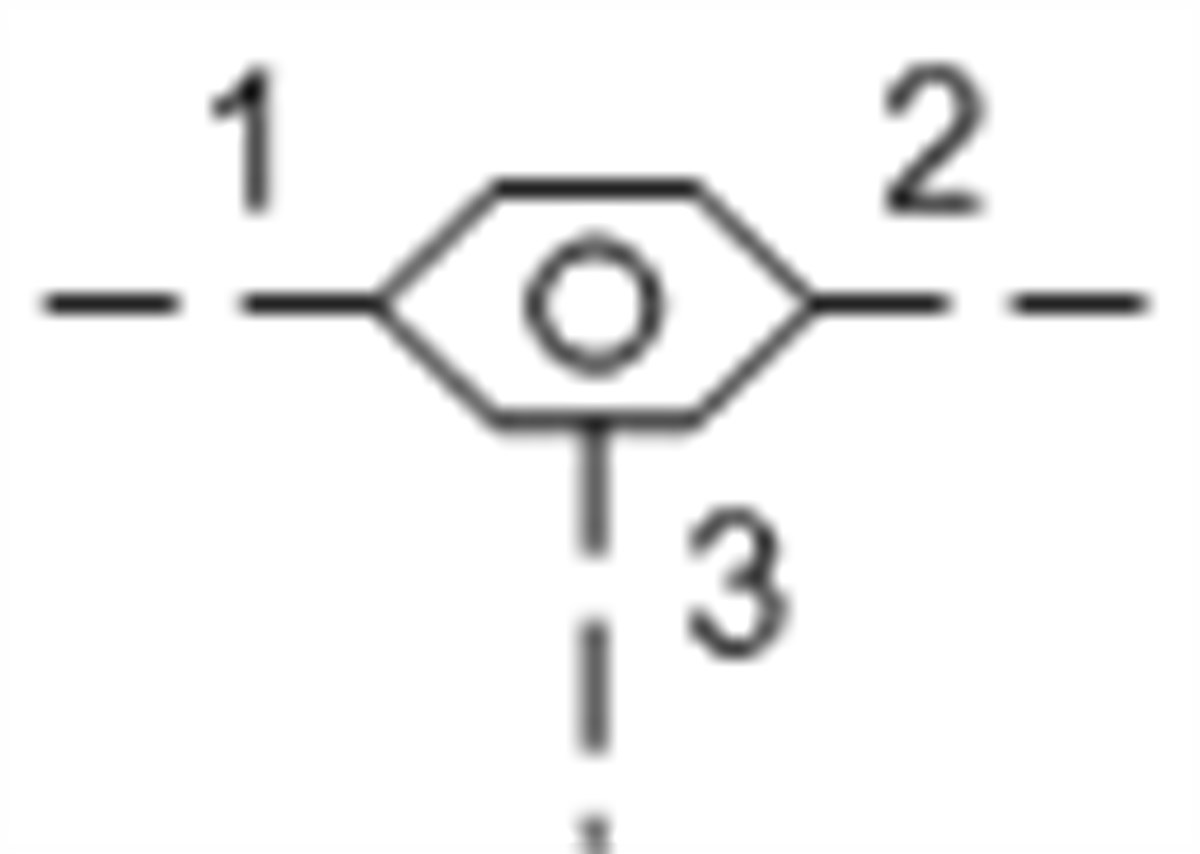

CSAXXXN Single ball shuttle valve with signal at port 3

CSAXXXN Single ball shuttle valve with signal at port 3

Price : $22.69
:
CSAX

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-163A
Series 0
Capacity 1.25 gpm4,7 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 5 drops/min.0,3 cc/min.
Valve Hex Size 3/4 in.19,1 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Model Weight .20 lb0,10 kg
Seal kit - Cartridge Buna: 990163007
Seal kit - Cartridge Polyurethane: 990163002
Seal kit - Cartridge Viton: 990163006


CSAX
Low Flow Rate
0-150 lpm
