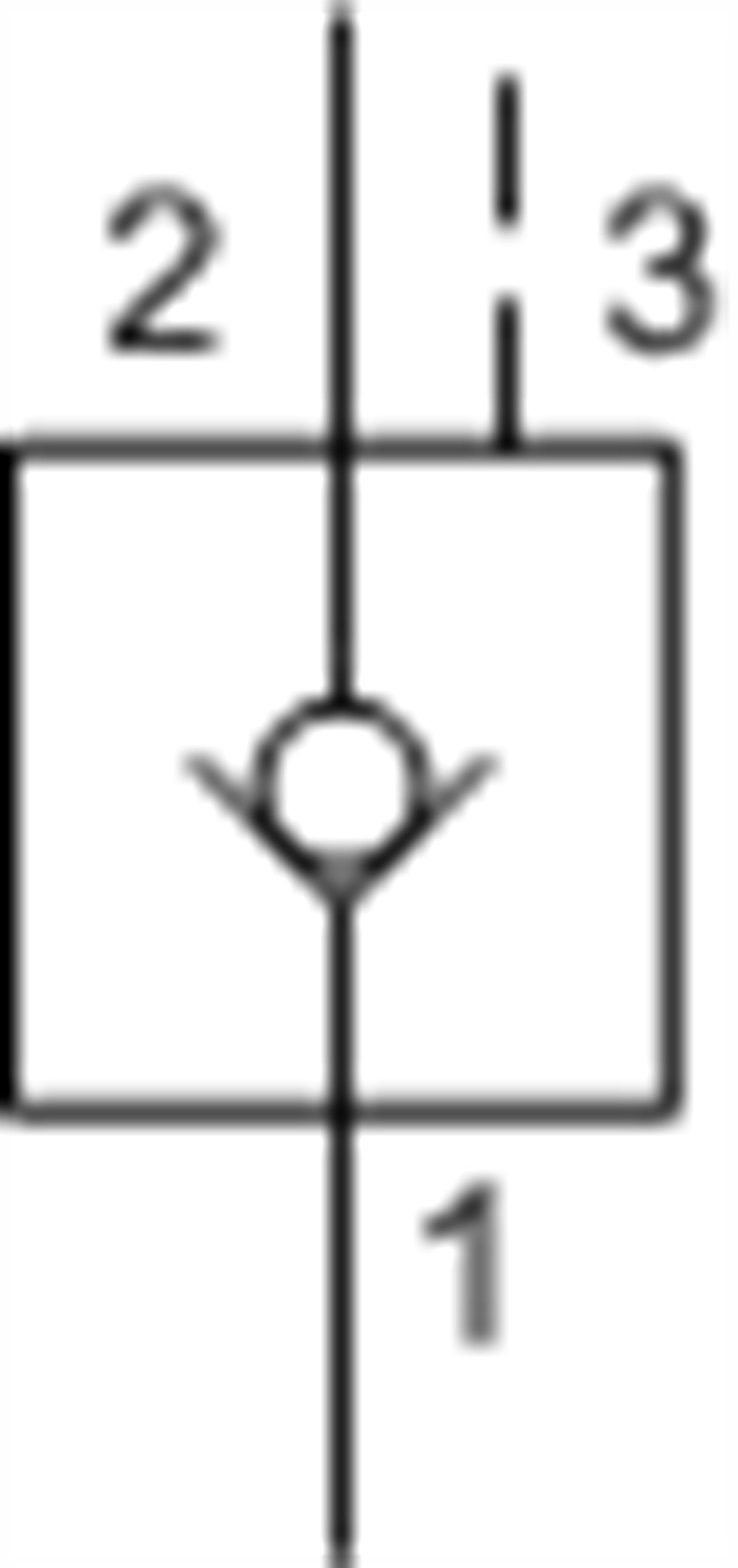

COFAXCN Pilot-to-close check valve

COFAXCN Pilot-to-close check valve

Price : $70.11
:
COFA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-2A
Series 2
Capacity 40 gpm160 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Ratio 1.8:11.8:1
Maximum Valve Leakage at 110 SUS (24 cSt) 1 drops/min.0,07 cc/min.
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Model Weight .50 lb0,25 kg
Seal kit - Cartridge Buna: 990202007
Seal kit - Cartridge EPDM: 990202014
Seal kit - Cartridge Polyurethane: 990002002
Seal kit - Cartridge Viton: 990202006


COFA
Medium Flow Rate
150-300 lpm
