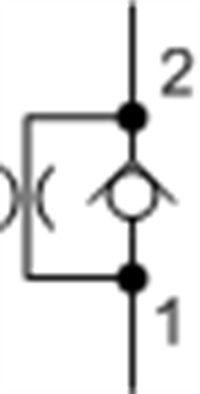

CNICXCN Fixed-orifice, non-pressure compensated, flow control valve with reverse flow check

CNICXCN Fixed-orifice, non-pressure compensated, flow control valve with reverse flow check

Price : $164.95
:
CNIC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-18A
Series 4
Capacity 120 gpm480 L/min.
Maximum Operating Pressure 5000 psi350 bar
Orifice Range .016 - .218 in.0,4 - 5,5 mm
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Seal kit - Cartridge Buna: 990018007
Seal kit - Cartridge Polyurethane: 990018002
Seal kit - Cartridge Viton: 990018006


CNIC
High Flow Rate
300-1000 lpm
