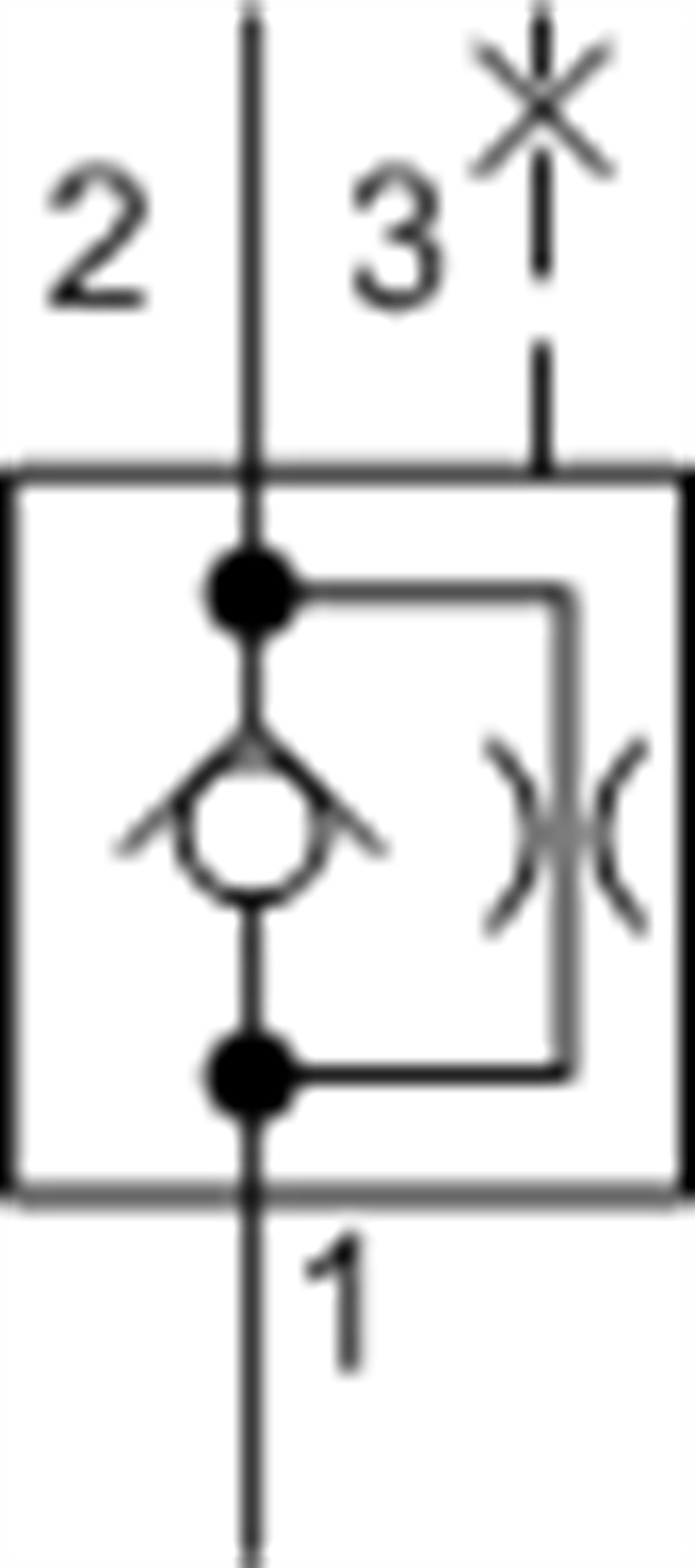

CNEDXCN Free flow side to nose check valve with bypass orifice and port 3 blocked

CNEDXCN Free flow side to nose check valve with bypass orifice and port 3 blocked

Price : $55.34
:
CNED

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-2A
Series 2
Capacity 30 gpm120 L/min.
Maximum Operating Pressure 5000 psi350 bar
Orifice Range .016 - .135 in.0,4 - 3,4 mm
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Seal kit - Cartridge Buna: 990202007
Seal kit - Cartridge Polyurethane: 990002002
Seal kit - Cartridge Viton: 990202006


CNED
Low Flow Rate
0-150 lpm
