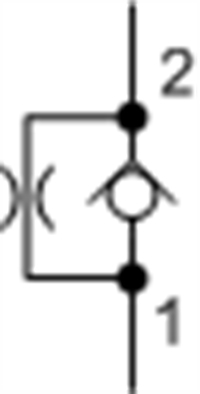

CNCCXCN Fixed-orifice, non-pressure compensated, flow control valve with reverse flow check

CNCCXCN Fixed-orifice, non-pressure compensated, flow control valve with reverse flow check

Price : $32.43
:
CNCC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-13A
Series 1
Capacity 15 gpm60 L/min.
Maximum Operating Pressure 5000 psi350 bar
Orifice Range .016 - .153 in.0,4 - 3,9 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .20 lb0,10 kg
Seal kit - Cartridge Buna: 990010007
Seal kit - Cartridge Polyurethane: 990010002
Seal kit - Cartridge Viton: 990010006


CNCC
Low Flow Rate
0-150 lpm
