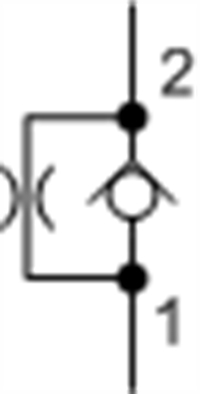

CNACXCN Fixed-orifice, non-pressure compensated, flow control valve with reverse flow check

CNACXCN Fixed-orifice, non-pressure compensated, flow control valve with reverse flow check

Price : $32.43
:
CNAC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-162A
Series 0
Capacity 7.5 gpm30 L/min.
Maximum Operating Pressure 5000 psi350 bar
Orifice Range .016 - .062 in.0,4 - 1,6 mm
Valve Hex Size 3/4 in.19,1 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Model Weight .20 lb0,10 kg
Seal kit - Cartridge Buna: 990162007
Seal kit - Cartridge Polyurethane: 990162002
Seal kit - Cartridge Viton: 990162006


CNAC
Low Flow Rate
0-150 lpm
