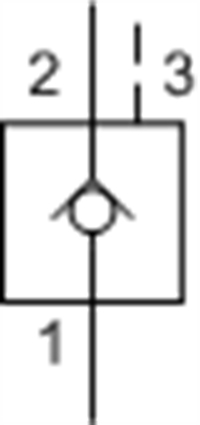

CKBBXCN Pilot-to-open check valve with standard pilot

CKBBXCN Pilot-to-open check valve with standard pilot

Price : $39.39
:
CKBB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-163A
Series 0
Capacity 7.5 gpm30 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Ratio 3:13:1
Maximum Valve Leakage at 110 SUS (24 cSt) 1 drops/min.0,07 cc/min.
Valve Hex Size 3/4 in.19,1 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Model Weight .20 lb0,10 kg
Seal kit - Cartridge Buna: 990163007
Seal kit - Cartridge EPDM: 990163014
Seal kit - Cartridge Polyurethane: 990163002
Seal kit - Cartridge Viton: 990163006


CKBB
Low Flow Rate
0-150 lpm
